ChinaHome > Products > Gas Permeability Tester > H2/ O2/ CO2 Transmission Rate Test Multiple Gas Permeability Tester

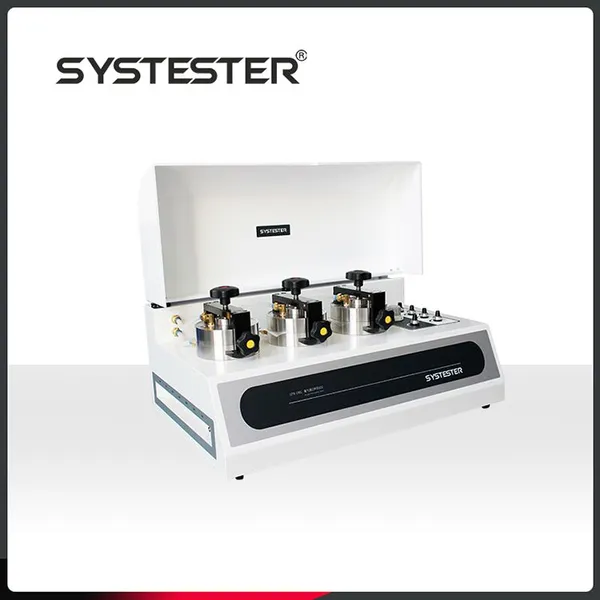

H2/ O2/ CO2 Transmission Rate Test Multiple Gas Permeability Tester
- Jinan
- T/T L/C
- 10 days
You May Like
-
GTR Mixed Gas Selective Membrane Of ERV Test GC Support Gas Permeability Tester
-
Water Vapor Permeability Tester ASTM & ISO Standrad For Membrane/ Fabric Materials
-
MVTR Water Vapor Transmission Rate Tester Moisture Permeability Test
-
Upright Cup Method Test ASTM E96 Water Vapor Permeability Tester
-
Paper/ Plastic Film Elmendorf Elmendorf Tearing Tester Multiple Capacity Available
-
Label/ Heat Shrinkable Film Test Shrinkage Tester ASTM/ ISO Standard
Product Details
| Brand Name | SYSTESTER | Place of Origin | China | |
| Model Number | GTR | Power | Electronic | |
| Usage | Auto Testing Machine |
Product Description
H2/ O2/ CO2 Transmission Rate Test Multiple Gas Permeability Tester
Products Details
Application:
H2/ O2/ CO2 Transmission Rate Test Multiple Gas Permeability Tester
Features:
— Differential pressure chromatography principle
— One-button test, test automatically through whole process
— High accuracy vacuum sensors embedded in
— Chamber temperature sensor embedded in
— Chamber with water bath temperature control technology (optional)
— Multiple test modes optional
— Data curves display
— Unit based on embedded system,24bit Δ-Σ AD
— Supports DSM system (DSM, lab data management system)
H2/ O2/ CO2 Transmission Rate Test Multiple Gas Permeability Tester
Technical indexes:
| Test range： | 0.01-2*104Barrers |
| Test flow: | 0-100ml/min (200ml/min, 300ml/min Optional) |
| Accuracy | 0.01Barrer |
| Vacuum accuracy | 0.1Pa |
| Test gas: | O2, N2, CO, CO2, H2, CH4, C2H4, C2H6, He and etc |
| Pressure difference | 0-10bar (STD) |
| System pressure resistance: | 16bar |
| Temperature range | 5℃～95℃, accuracy: ±0.1℃ (optional) |
| Test area | Φ20mm (3.14cm2) |
| Sample thickness | ±0.1C |
| Sample | One piece |
| Detector sensitivity | ≥5000mv.ml/mg or 10000mv.ml/mg |
| Detector drift | ≤0.10mv. Noise: ≤0.015mv |
| Loading gas pressure | 2bar |
| Loading gas | N2, H2, He, Ar and etc. |
| Dimension | 320 mm(W)×625mm(D)×335mm(H) |
| GC dimension | 590 mm(L)×480mm(W)×500mm(H) (STD) |
| Power supply: | AC 220V 50Hz |
