Low Reaction Boats Ships Force Dock Rubber Cone Type Fender For Cruise Terminals

Name: Low Reaction Boats Ships Force Dock Rubber Cone Type Fender For Cruise Terminals
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

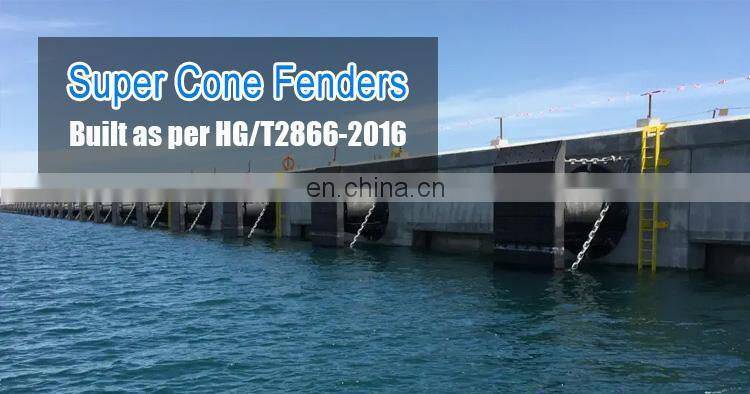

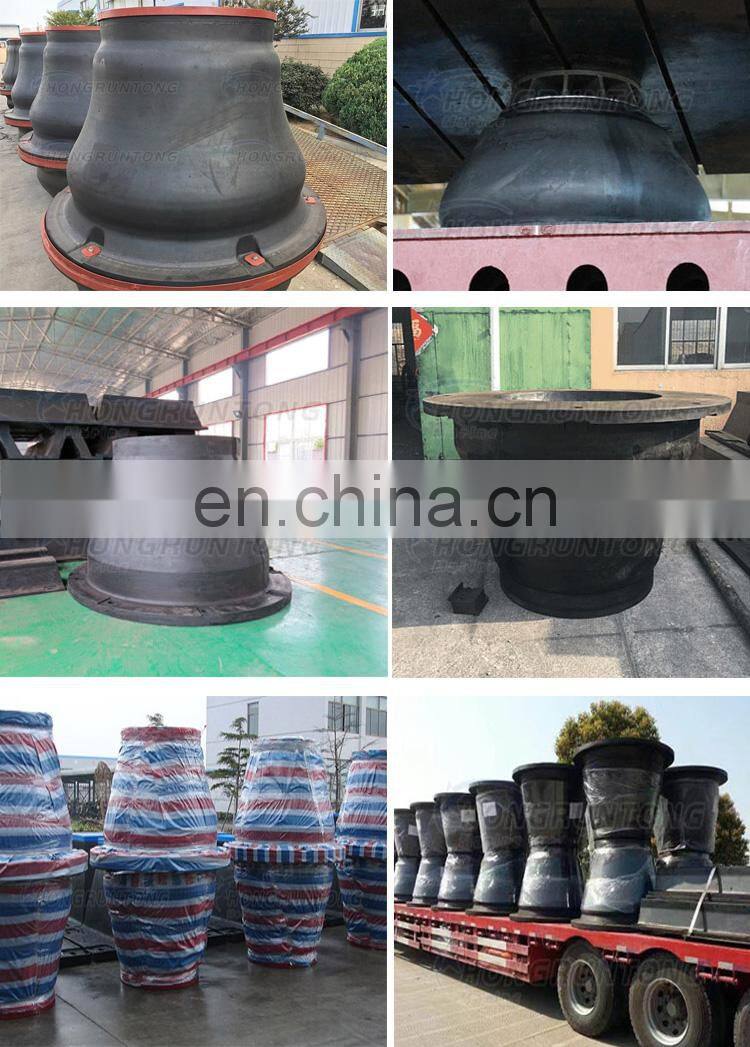

Super Cone Fenders

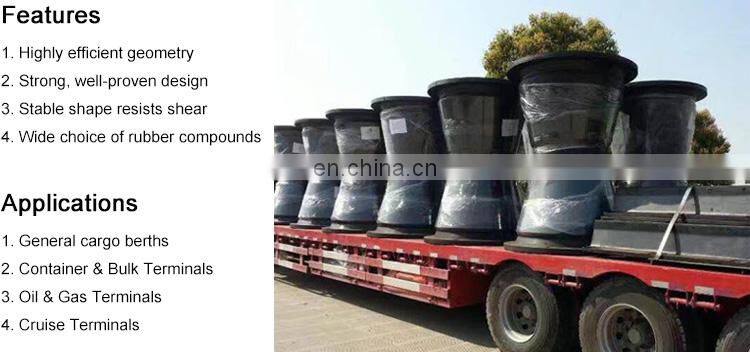

The Super Cone Fender is an efficient rubber fender type that is used in various applications. It has a conical body and fully rubber-embedded mounting flanges. Its refined geometry and conical shape result in a number of outstanding performance characteristics.

Product Description

Specification

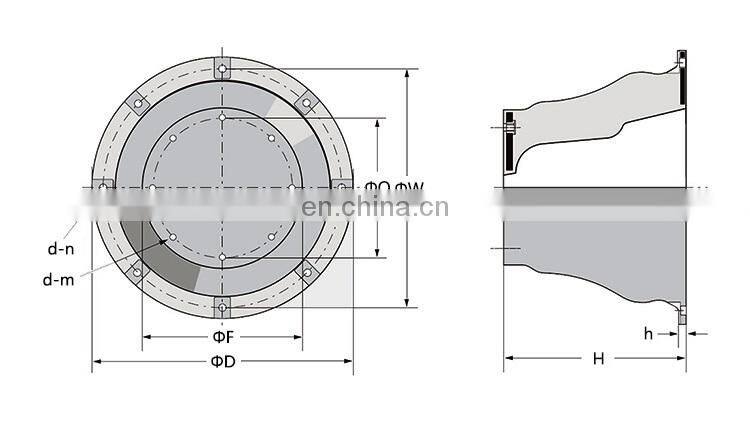

Model	H	h	F	D	Q	W	d-m	d-n
Cone	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
HM 300H	300	13.5	255	450	195	405	M16	20
HM 350H	350	25	300	570	235	510	M20	25
HM 400H	400	18	340	600	260	540	M20	25
HM 500H	500	25	425	750	325	675	M24	30
HM 600H	600	27	510	900	390	810	M24	30
HM 700H	700	32	585	1050	455	945	M30	38
HM 800H	800	36	680	1200	520	1080	M36	44
HM 900H	900	41	765	1350	585	1215	M36	44
HM 1000H	1000	45	850	1500	650	1350	M42	56
HM 1050H	1050	55	1030	1680	900	1530	M36	44
HM 1100H	1100	50	935	1650	715	1485	M42	50
HM 1150H	1150	52	998	1725	750	1550	M42	56
HM 1200H	1200	54	1020	1800	780	1620	M42	50
HM 1300H	1300	59	1105	1950	845	1755	M48	60
HM 1400H	1400	66	1190	2100	930	1890	M48	60
HM 1600H	1600	72	1360	2400	1060	2160	M48	70
HM 1800H	1800	78	1530	2880	1190	2430	M56	76
HM 2000H	2000	80	1900	3200	1540	2920	M56	76
*Note: Other sizes can be customized according to the requirements.
