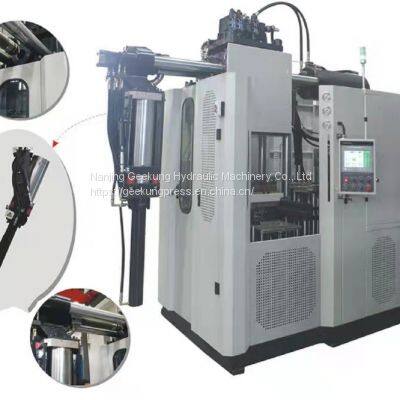

Silicone Injection Molding Machine

Silicone Injection Molding Machine thumbnail-1
Silicone Injection Molding Machine thumbnail-2
Silicone Injection Molding Machine thumbnail-3
Silicone Injection Molding Machine thumbnail-4
Silicone Injection Molding Machine thumbnail-5
Silicone Injection Molding Machine photo-1
Silicone Injection Molding Machine photo-2
Silicone Injection Molding Machine photo-3
Silicone Injection Molding Machine photo-4
Silicone Injection Molding Machine photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Geekung
Place of Origin:
China
Model Number:
XLB-V300T
Contact Supplier Request Quote Chat Now
Nanjing Geekung Hydraulic Machinery Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Nanjing, Shanghai
Delivery Detail:
60 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Geekung
Place of Origin China
Model Number XLB-V300T
Certification CE,ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 9300 Kgs
Dimension(L*W*H) 3100x1300x4000
Condition New
Voltage 220V/380V/460V/480V

Main application field for the rubber&silicone injection molding pressmachine:

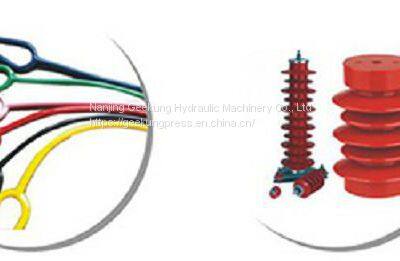

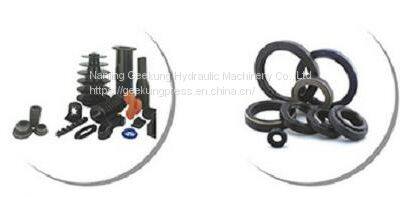

Rubber&Silicone Injection Molding Machine is ideal for the production of various natural&synthetic rubber parts,oil & heat resistant rubber parts, silicone parts,etc.

  • Ergonomic low bed structure for easy opeartion

  • Advanced proportional pressure&speed control from PLC

  •  Automated de-moulding and handling devices are optional

  • Option to make silicone material

  • Customized specifications are available

  • Vertical/Horizontal structure with FIFO type injection system

Technical Specification:

Model

XLB-V200T

XLB-V300T

XLB-V400T

XLB-V500T

Clamping force(ton)

  200

300

400

500

Stroke(mm)

 500

500

600

600

Platen size(mm)

600x600

700x700

700x800

800x850

Main piston diameter(mm)

355

450

500

560

Max.platen gap(mm)

550

550

700

700

Min. Mold thickness(mm)

60

60

100

100

Core Lifter stroke (mm)

200

200

250

250

Injection unit

Injection volume (CC)

2000

3000

4000

5000

Injection pressure (Mpa)

220

220

205

205

Screw diameter(mm)

45

45

55

55

Nozzle aperture(mm)

6

6

7

8

Others

System pressure (Mpa)

21

21

21

21

Horse Power(HP)

15

20

25

30

Heater power (KW)

19

22

27

31

Total power(KW)

36

40

52

58

Weight(Kg)

7200

9300

11700

14700

Dimension(LxWxH:mm)

2700x1200x3600

3100x1300x4000

3300x1400x4500

4000x1600x4500



Notes: the table only lists out the normal popular standard models, more special larger models can be customized to order.
