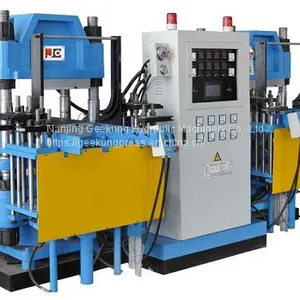

Double Station Vulcanization Machine is suitable for the production of making packing O-rings,keyboards,rubber medical products,etc.
Technical specification:
Model |
JC-XLB 100T |
JC-XLB 200T |
JC-XLB 300T |
JC-XLB 350T |
JC-XLB 400T |
JC-XLB 500T |
Tonnage |
100T |
200T |
300T |
350T |
400T |
500T |
Max.system pressure |
21 Mpa |
21 Mpa |
21 Mpa |
21 Mpa |
21 Mpa |
21 Mpa |
Clamping stroke(mm) |
280 |
300 |
300 |
300 |
300 |
300 |
Rapid clamping |
≥60mm/s |
≥60mm/s |
≥50mm/s |
≥50mm/s |
≥50mm/s |
≥50mm/s |
Platen size(mm) |
450x450 500x500 |
510x540 600x550 |
700x650 |
700x700 |
900x800 |
700x700 800x800 950x800 |
Max. daylight |
350 mm |
350mm |
350mm |
350mm |
350mm |
350mm |
Max.temperature(℃) |
250 |
250 |
250 |
250 |
250 |
250 |
Motor power(KW） |
5.5 |
7.5 |
11 |
11 |
13 |
13 |
Heating power(KW) |
9.6 |
18.6 |
20.6 |
20.6 |
27.8 |
27.8 |
Size (LxWxH:cm) |
175x190x170 |
210x230x210 |
230x280x230 |
230x280x250 |
270x410x280 |
270x410x310 |
Oil tank capacity(L) |
270 |
320 |
400 |
400 |
500 |
600 |
Notes: the form only list out the normal standard model, more special models can be customized to order.
Double Station Vulcanization Machine is one of our main products,"Geekung" is now the famous brand in China for rubber compression molding press machine,
made with premium components and strict QC management,featuring high quality&reliable operation.
Our Automatic Rubber Platen Vulcanizing Press Machines are being sold very popular across China,we are now also expanding our overseas market.
