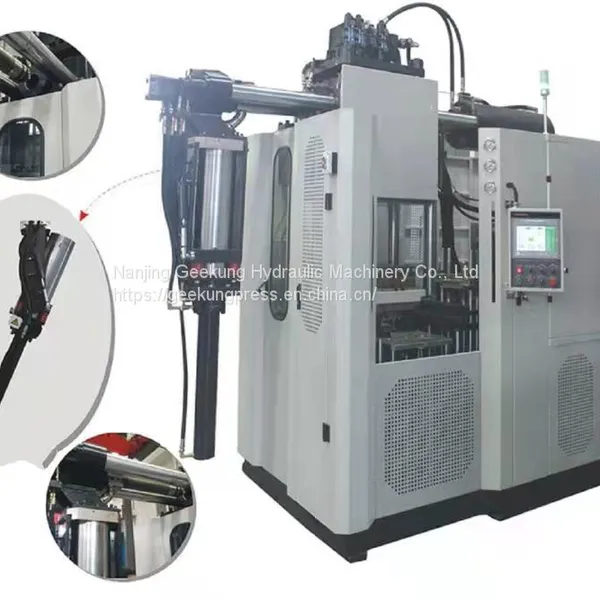

Silicone Injection Molding Press
- 1000 Set / Sets per Month
- Nanjing, Shanghai
- T/T L/C Cash
- 60 days
-
weeding latex balloons molds 10 inches balloons mold round balloons molds
-
round shape balloon molds colored balloons glass moulds egg shape balloons molds
-
pvc glove printing machine double sides labor gloves dotting machine socks dotting machine
-
big water balloon production line automatic macaron balloon making machine wedding balloons production machine
-
latex water balloon production line wedding balloons making machine party latex balloons production machine
-
Glospect mixing mill
Product Details
| Brand Name: | Geekung | Place of Origin: | China | Model Number: | XLB-V300T |
| Certification: | CE,ISO | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 year |
| Weight: | 9300 Kgs | Dimension(L*W*H): | 3100x1300x4000 | Condition: | New |
| Voltage: | 220V/380V/460V/480V |
Product Description
Main application field for the rubber&silicone injection molding press machine:
Rubber&Silicone Injection Molding Machine is ideal for the production of various natural&synthetic rubber parts,oil & heat resistant rubber parts, silicone parts,etc.
Ergonomic low bed structure for easy opeartion
Advanced proportional pressure&speed control from PLC
Automated de-moulding and handling devices are optional
Option to make silicone material
Customized specifications are available

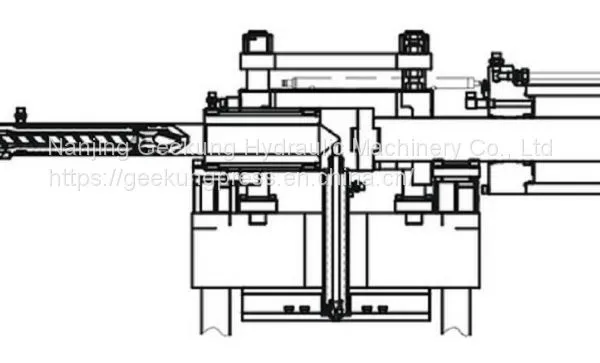

Vertical/Horizontal structure with FIFO type injection system
Technical Specification:
Model | XLB-V300T | XLB-V400T | XLB-V500T | |
Clamping force(ton) | 200 | 300 | 400 | 500 |
Stroke(mm) | 500 | 500 | 600 | 600 |
Platen size(mm) | 600x600 | 700x700 | 700x800 | 800x850 |
Main piston diameter(mm) | 355 | 450 | 500 | 560 |
Max.platen gap(mm) | 550 | 550 | 700 | 700 |
Min. Mold thickness(mm) | 60 | 60 | 100 | 100 |
200 | 200 | 250 | 250 | |
Injection unit | ||||
Injection volume (CC) | 2000 | 3000 | 4000 | 5000 |
Injection pressure (Mpa) | 220 | 220 | 205 | 205 |
Screw diameter(mm) | 45 | 45 | 55 | 55 |
Nozzle aperture(mm) | 6 | 6 | 7 | 8 |
Others | ||||
System pressure (Mpa) | 21 | 21 | 21 | 21 |
Horse Power(HP) | 15 | 20 | 25 | 30 |
Heater power (KW) | 19 | 22 | 27 | 31 |
Total power(KW) | 36 | 40 | 52 | 58 |
Weight(Kg) | 7200 | 9300 | 11700 | 14700 |
Dimension(LxWxH:mm) | 2700x1200x3600 | 3100x1300x4000 | 3300x1400x4500 | 4000x1600x4500 |
Notes: the table only lists out the normal popular standard models, more special larger models can be customized to order.
