Home > Products > Globe Valve > 2PC Body FRJ945Y Y Type Electric Control Slurry Globe Valve for Aluminum Oxide Industry

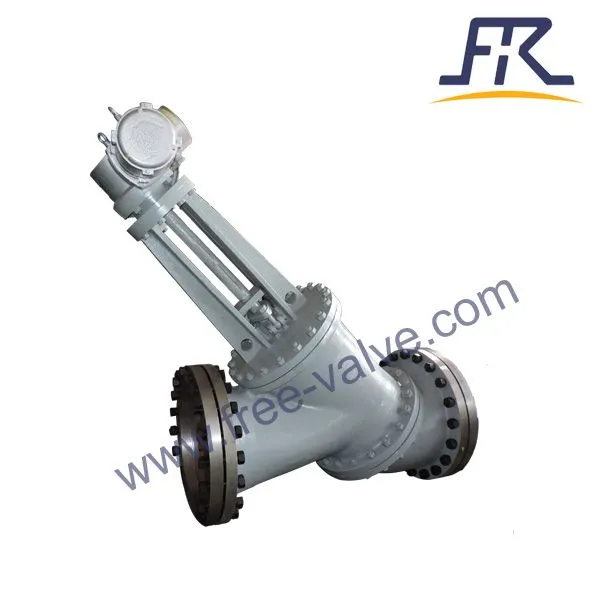

2PC Body FRJ945Y Y Type Electric Control Slurry Globe Valve for Aluminum Oxide Industry

Name: 2PC Body FRJ945Y Y Type Electric Control Slurry Globe Valve for Aluminum Oxide Industry
Brand: FREE-VALVE
Availability: InStock

FOB Price

US$ 100 - 300 / Set

2 Sets(Min. Order)

Port Shanghai Port
Payment TermsT/T L/C D/P D/A
Delivery Detail25 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	FREE-VALVE	Place of Origin	China
Model Number	FRJ945Y	Material	Casting
Application	General	Structure	Angle
Standard or Nonstandard	Standard	Pressure	Medium Pressure
Power	Pneumatic	Port Size	DN600
Media	Water	Temperature of Media	High Temperature

Product Description

FREE-VALVE’s 2PC body FRJ945Y Y type electric control slurry globe valve is ideal for many applications because the valves are designed for use on abrasion materials. 2PC body FRJ945Y Y type electric control slurry globe valve is divided into left and right parts with a seat between them. The bolt connecting the two parts can be dissembled to replace the valve seat.The valve with abrasion resistance,high pressure resistance,erosion resistance and anti-scabbing performance.2PC body FRJ945Y Y type electric control slurry globe valve is specially offered for controlling or stopping the slurry, the slurry valves are used primarily in the alumina,metallurgy , chemical fertilizer and mining industry.

Features

1. The valve body is split type body,it is divided into left and right parts with a seat between them. The seat is installed between the two valve body ,so the seat can be replaced easily .

2. An anti-washing and anti-corrosion protection stem is set in the cavity of the valve body.

3. 2PC FRJ945Y Y type electric control slurry globe valve has a good abrasion resistance with higher hardness because Full Stellite or Tungsten carbide overlaying seat sealing surface.

4. Anti-washing and anti corrosion protection plate is set in the cavity of the valve body .

5. A rotation-resistant device is set up to ensure that the valve stem only has straight line motions and no rotation.

Technical Specification:

Flange connection:ASME B16.5,GB/T9113

Design standard:ASME B16.34

Pressure Range:Class150~Class600

Size Range:DN50~DN 600, NPS2~NPS24

Material:carbon steel, stainless steel

Connection type:Flange

Suitable Temperature:≤425℃

Operating Type:Pneumatic, manual, electric

Sealing surface material:Alloy

Pressure test:GB/T13927, API598

Face to Face:GB/T12221, ASME B16.10

Application

Alumina,Metallurgy , Chemical fertilizer , Mining industry, Paper-making

Model:FRJ945Y

Price:100-5000USD/set

Price terms:FOB,CFR,FCA,CIF

Payment terms:TT,LC

Origin:China

Wechat:FreeValve

Email:sales@free-valve.com

Skype:sales@free-valve.com
