Competitive Fused Cast AZS Brick ER 1711 for Float Glass Kiln

Competitive Fused Cast AZS Brick ER 1711 for Float Glass Kiln thumbnail-1
Competitive Fused Cast AZS Brick ER 1711 for Float Glass Kiln photo-1
US$ 2500 - 5800 MOQ: 3 Metric Tons
Key Specifications
Get Latest Price
Brand Name:
HCR
Place of Origin:
China
Model Number:
AZS
Contact Supplier Request Quote Chat Now
Zhengzhou Huachen Refractory Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HCR
Place of Origin China
Model Number AZS
Shape Brick
Material Other, AL2O3,ZrO2,SiO2
CaO Content (%) 0.1%
MgO Content (%) 0.1%
SiO2 Content (%) 11%-21%
Al2O3 Content (%) 40%-60%
CrO Content (%) 0.1%

Overview

Quick Details

Place of Origin:                China                                     Brand Name:                HCR

Shape:                               Block                                    Material:                       Zircon

SiO2 Content (%):            11%-21%                               Al2O3 Content (%):     40%-60%

MgO Content (%):             0.1%                                     CaO Content (%):         0.1%

Refractoriness (Degree):   Common (1580°CrO Content (%):         0.1%

                                         Refractoriness

SiC Content (%):               0%                                        Model Number:            Fused AZS block

Product name:                 Fused cast AZS block           Application:                   Glass furnace

Color:yellowSize:             According to your drawing  Certificate:ISO9001:        2008Sample:Provide, free

Advantage:                      High Thermal                        StabilityPacking:            Pallet

Bulk density g/cm3:         3.45-3.95                              MOQ:                             10tons

Video Description
00:06
00:09
Product Description

1.fused cast  AZS brick description:

Fused AZS block major include model AZS-33; AZS-36; AZS-41. the different model applicated in different parts of furnaces.

AZS brick 33#,a normal refractory material, with the features of  very good melting glass resisting, Which seldom produces stone or other faults, and has little possibility to produce bubbles. And it is widely used in glass Indaustrial furnace.

AZS brick 36#, has more free baddeleyite crystals in chain structure and less vitreous phase, which further improve the corrosion resistibility and reduce the potential defects in glass, so it is recommended to be used in sections where glass flow is faster and temperature is higher, such as melter sidewall, paving, doghouse, etc.
AZS brick 41#:has the most free baddeleyite crystals among the fused cast AZS families, which are evenly distgributed within the block. Its corrosion resistibility is the best and thus it is usually recommended to be used in the most demanding positions to balance the furnace life.



Competitive fused cast AZS brick ER 1711 for float glass kiln





2.fused cast  AZS brick advantages:

1.Best erosion resistance

2. not easy to generate smal bubble

3. good thermal shock resistance

4. stable performance for furnace

5. suitable for structure

6. long service time



3.Physical &Chemical parameters of fused cast  AZS brick:

Specification of AZS block

AZS 33 #

AZS 36 #

AZS 41#

Chemical
analysis

Al2O3

Remain

Remain

Remain

ZrO2

32-34%

35-37%

40-42%

SiO2

Less than 16.0%

Less than 14.0%

Less than 13.0%

Na2O

Less than 1.5%

Less than 1.6%

Less than 1.3%

Fe2O3+TiO2+CaO+MgO+Na2O+K2O+B2O3

Less than 2.5%

Less than 2.5%

Less than 2.5%

Bulk density (dense part)

3.85g/cm 3

3.95g/cm 3

4.0g/cm 3

Apparent porosity (dense part)

Less than 2.0.%

Less than 1.5.%

Less than 1.3.%

Anti-corrosion rate of glass liquid (soda-lime glass, 1500 Celsius 36h)

Less than 1.6mm/24h

Less than 1.5mm/24h

Less than 1.3mm/24h

Bubbling tendency (soda-lime glass, 1300 Celsius 10h)

Less than 2.0%

Less than 1.5%

Less than 1.0%

Exudation temperature of glass phase

More than 1400 Celsius

More than 1400 Celsius

More than 1400 Celsius

Volume
weight

Normal casting and tilting casting (RC or TC)

3.45g/cm 3

3.5g/cm 3

3.55g/cm 3

End casting (EC

3.65g/cm 3

3.7g/cm 3

3.8g/cm 3

Void free casting (VF)

3.75g/cm 3

3.9g/cm 3

3.95g/cm 3





Competitive fused cast AZS brick ER 1711 for float glass kiln





4.Applications of fused cast  AZS brick :

fused  Cast AZS brick are widely used in glass furnace, as well as in steel kilns.

Competitive fused cast AZS brick ER 1711 for float glass kiln

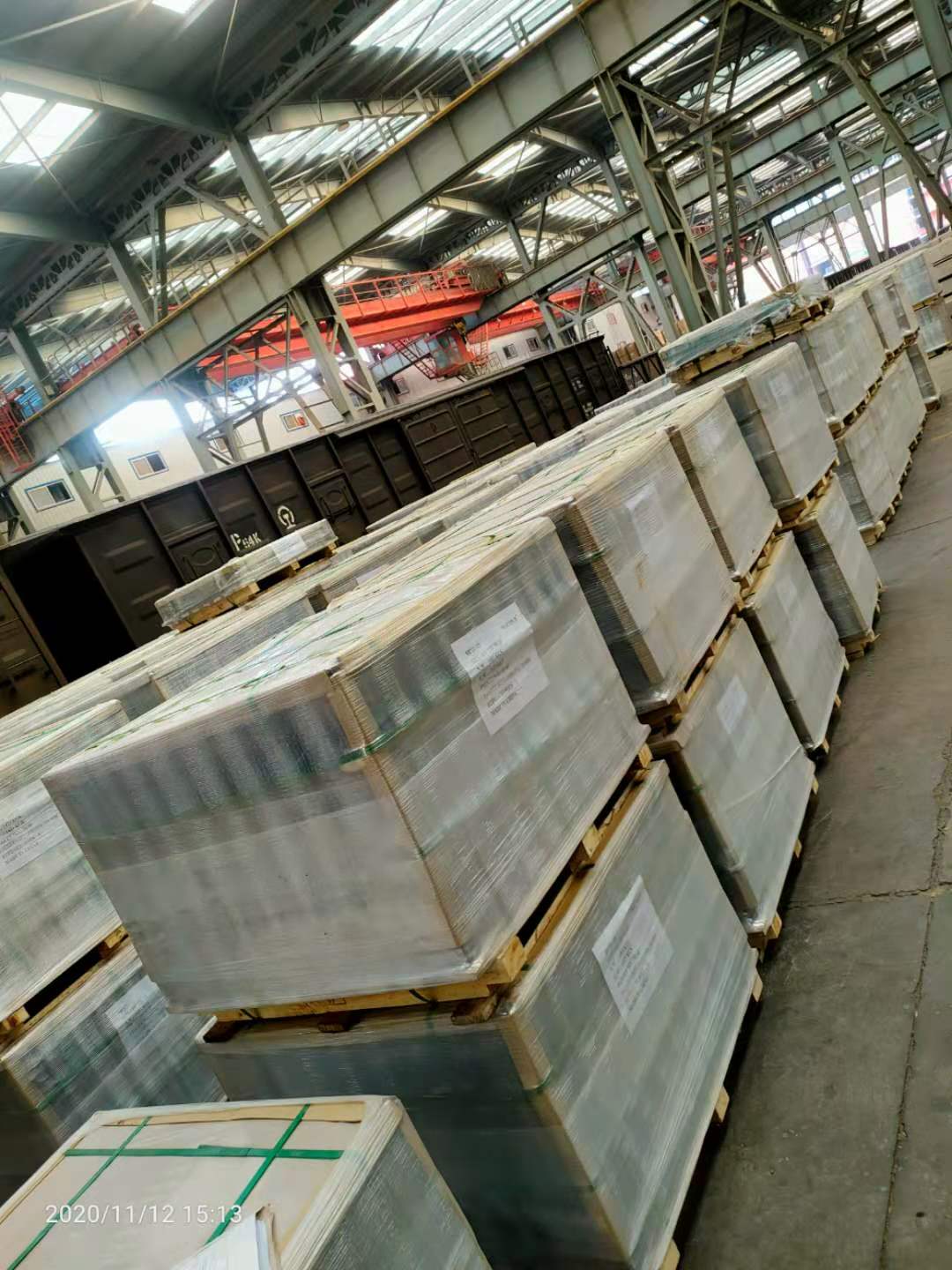

5.Packaging pictures of our fused cast  AZS bricks:



Competitive fused cast AZS brick ER 1711 for float glass kiln





6.Shipment Details of fused cast  AZS bricks:



Competitive fused cast AZS brick ER 1711 for float glass kiln

Competitive fused cast AZS brick ER 1711 for float glass kiln





7.FAQ OF Zhengzhou Huachen Refracory Co.,Ltd

1.How about your payment term ?

    •   we can accept payment by L/C at sight, T/T with deposit.

2.Do we supply samples?

    •   Yes,we are pleased to provide free sample you required.

3.What is MOQ?

    •   No requirement, usually need 5mt, except samples

4.Can the clients visit your factory?

    •    Of course,we are pleased for this .

5.what is the delivery date usually?

    •    20~40days.but usually according to your order quantity.

6.How to ensure the quality of shipping products?

    •   Our factory has full sets of test equipments and facilities to ensure the high quality products as per your requests.

    •   Third part inspection is accepted if you request so.

7.Which certifications do your company have ?

    •   ISO9001 and Test Report,we can provide other necessary certifications if you need .



















Supply Ability

  • Supply Ability

  • 1500 Metric Ton/Metric Tons per Month

Packaging & Delivery

  • Packaging Details

    • Woodencase

  • Port

    • Tianjin(xingang)


Product Tags: fused cast azs brick , ER1711 brick , float glass kiln brick
