Equipment application

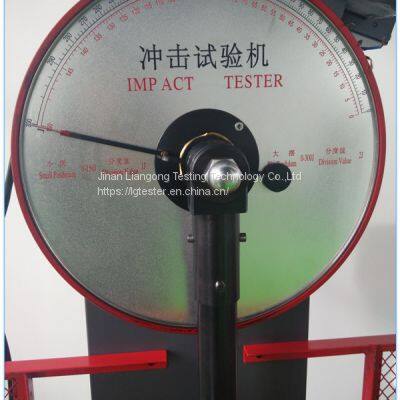

This equipment is used to measure the resistance of metal materials to impact under dynamic load in order to judge the properties of the material under dynamic load. Using the difference between the potential energy before the impact of the pendulum and the remaining potential energy after the impact is displayed on the dial, to obtain the absorption work of the sample. The maximum impact energy is 300J, and also attached one pendulum of 150J, and the cross section of the sample used is (10 × 10) mm.
The operation adopts semi-automatic control, easy to operate, high working efficiency. Using the residual energy after the pendulum breaking the sample, it can automatically raise the pendulum, and it can reflect its superiority when continuously performing specimen impact test. It is mainly used in measurement and quality inspection, technical supervision departments, metallurgy and iron and steel, machinery manufacturing, pressure vessels, automobile production, universities, research institutes and other industries.
Technical Parameters
Semi-automatic Charpy Impact Testing Machine | |||
Machine model |
JB-300W |
||
Impact energy |
300J |
150J |
|
Dial scale range and indexing value |
Energy range |
0-300J |
0-150J |
Indexing value for each cell |
2J |
1J |
|
Pendulum torque |
M=160.7695N·m |
M=80.3848N·m |
|
Pendulum preparing angle |
150° |
||
Pendulum shaft center of rotation to the impact point distance (sample center) |
750mm |
||
Impact speed |
5.2m/s |
||
Specimen support span |
40mm |
||
Round corner of support jaw |
R (1.0~1.5)mm (1mm is special ordered.) |
||
Blade curvature radius |
R (2.0~2.5)mm (8mm is special ordered.) |
||
Specimen holder support surface angle |
11° |
||
Impact blade angle |
30° |
||
Impact blade thickness |
16mm |
||
Specimen dimension |
10×10×55 mm (Thickness 7.5mm, 5mm is special ordered.) |
||
Machine host weight |
420kg |
||
Power supply |
Three phase four-wire, 380V 50Hz 400W |
||
