ANSI Plug Valve
US$ 1 - 1000
/ Set
1 Set(Min. Order)
- SHANGHAI
- T/T L/C
- 20 days
You May Like
Product Details
| Place of Origin | China | Model Number | ANSI Plug Valve | |
| Material | Casting | Application | General | |
| Structure | Control | Standard or Nonstandard | Standard | |
| Pressure | High Pressure | Power | Pneumatic | |
| Port Size | DN50-DN600 | Media | Base | |
| Temperature of Media | Medium Temperature |
Product Description

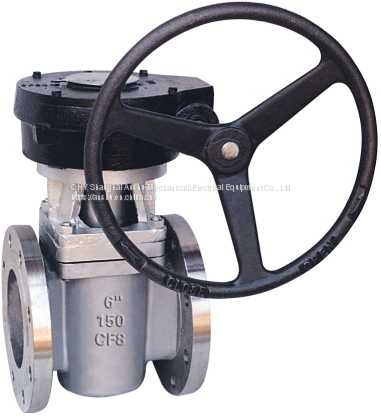

ANSI Plug Valve
main feature:
1. Straight-through, integral valve body
2. Sleeve type replaceable valve seat
3. High CV value and strong circulation capacity
4. No cavity channel, small fluid resistance
5. American Standard Structure Improvement Type
6. Two-way sealing, adjustable redundant device
7. One-piece anti-collision cock
8. Anti-static/fireproof structure
9. Butt welding connection
