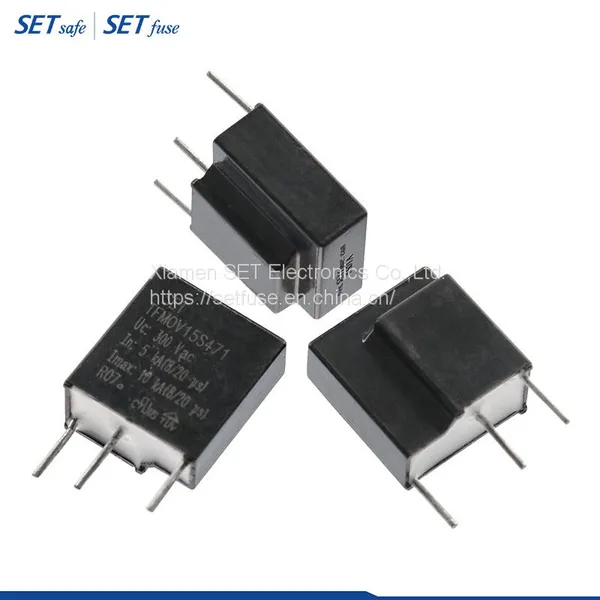

Tfmov 15s Series Thermally Protected Varistor MOV Tpmov Replace Littelfuse. Leviton, Thinking

Xiamen SET Electronics Co., Ltd.

TFMOV is a combination of varistors (MOV) and thermal protection component. Since varistor has the characteristics of aging or degrading; TFMOV can separate the varistor from the main circuitry by opening the thermal protection component when the varistor (MOV) degrades or fails. It is often used in which requires high reliability and weather withstanding, such as photovoltaic inverters, communication equipment, and power supplies in data centers, etc.

● High Reliability

● Small Size

● High Energy Capacity

● Sealing Material, Flame-retardant to V0 (UL 94)

● Comply whit UL 1449

● RoHS & REACH Compliant

Through Hole

Solder Pin

● Telecom Equipment

● AC / DC Power Supply

● Uninterruptable Power Supply (UPS)

● Surge Protective Device (SPD)

● AC Power Meter

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

UL (America):

Standards: UL 1449

File NO.: E322662

UL_TFMOV_TFMOV10S & 15S & 20S & 25S & 34S & 20SxxxL & 25SxxxL & 34SxxxL & 25D & 21R2P_SETsafe & SETfuse.pdf

cUL (Canada):

Standards: CSA C22.2 No. 269

File NO.: E322662

cUL_TFMOV_SETsafe & SETfuse.pdf

TUV (Germany):

Standards: EN 61643-11

File NO.: J50285666

TUV_TFMOV_TFMOV15S_SETsafe & SETfuse.pdf

CQC (China):

Standards: GB 4943.1-2011, GB 8898-2011

File NO.: CQC15001125792

CQC_TFMOV_TFMOV15S_SETsafe & SETfuse.pdf

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Process, Online Inspection and Testing (Function 100% Test).

IPQC (AQL, Dimension, Function, Visual Inspection).

FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Reliability Test (AQL).

OQC (Packaging, Labeling, Quantity Inspection).

Agency (Safety Certificate) Annual, Quarterly Audits.

Quality Management System (TUV Approved and issued certificate).
