Max. Continuous Operating Voltage (Uc): 30 ~ 320 VAC
Nominal Discharge Current (8/20 μs) (In): 2.5x3 ~ 7.5x3 kA
Max. Discharge Current (8/20 μs) (Imax): 5x3 ~ 15x3 kA
UNIQUE
Xiamen SET Electronics Co., Ltd.

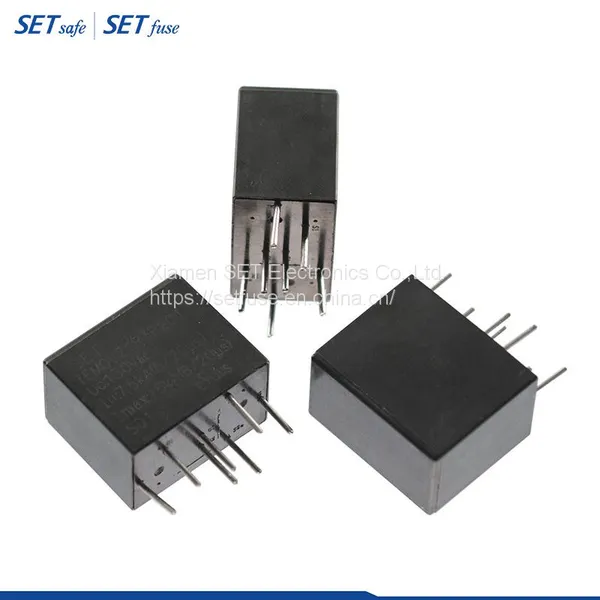

TFMOV is a combination of varistors (MOV) and thermal protection component. Since varistor has the characteristics of aging or degrading; TFMOV can separate the varistor from the main circuitry by opening the thermal protection component when the varistor (MOV) degrades or fails. It is often used in which requires high reliability and weather withstanding, such as photovoltaic inverters, communication equipment, and power supplies in data centers, etc.
● High Reliability
● Small Size
● High Energy Capacity
● Sealing Material, Flame-retardant to V0 (UL 94)
● Comply whit UL 1449
● RoHS & REACH Compliant
Through Hole
Solder Pin
● Telecom Equipment
● AC / DC Power Supply
● Uninterruptable Power Supply (UPS)
● Surge Protective Device (SPD)
● AC Power Meter
● Power Distribution Unit (PDU)
ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION
UL (America):
Standards: UL 1449
File NO.: E322662
UL_TFMOV_TFMOV21R3P_SETsafe & SETfuse.pdf
cUL (Canada):
Standards: CSA C22.2 No. 269
File NO.: E322662
cUL_TFMOV_SETsafe & SETfuse.pdf
CQC (China):
Standards: GB 4943.1-2011, GB 8898-2011
File NO.: CQC15001125794
CQC_TFMOV_TFMOV21R3P_SETsafe & SETfuse.pdf
For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.
Quality Policy.
Qualified Supplier of Raw Materials.
IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Process, Online Inspection and Testing (Function 100% Test).
IPQC (AQL, Dimension, Function, Visual Inspection).
FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Reliability Test (AQL).
OQC (Packaging, Labeling, Quantity Inspection).
Agency (Safety Certificate) Annual, Quarterly Audits.
Quality Management System (TUV Approved and issued certificate).
