Automatic Milk Pasteurizer Machine-Milk processing equipment-Milk Pasteurization Sterilization Machine for sale1.Product introduction:
This Pasteurizer sterilizing machine is specially used for pasteurization of fresh milk and yogurt. The plates and stainless steel pipes are made of high quality SUS304 stainless steel. The temperature of material inlet is 5°C. The sterilization technology: fresh milk 120°C/15S and yogurt 95°C/300S. The temperature of material outlet is 5°C/45°C. The steam system adopts SPIRAXSARCO steam pressure relief valve, regulating valve and Denmark TEMPRESS temperature sensor. The control cabinet adopts Japan Fuji temperature controller and Schneider electric elements. The system has such functions as high temperature alarm and low temperature return flow, which have strictly guaranteed that all discharged materials conform to required technology parameters.
Technology : 4°C→65~70°C homogenization →120°C/15S→ 4°C 95°C300S→43°C Spare: ice water 3:1(≤2°C) cooling water 3:1(30°C)

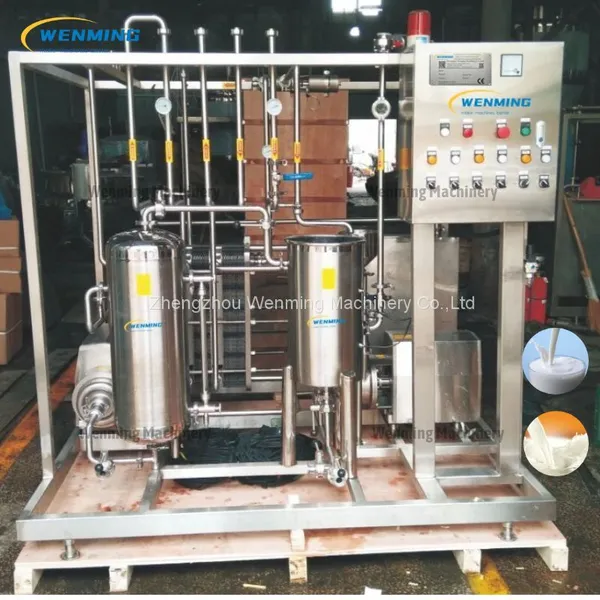

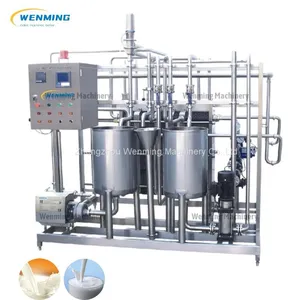

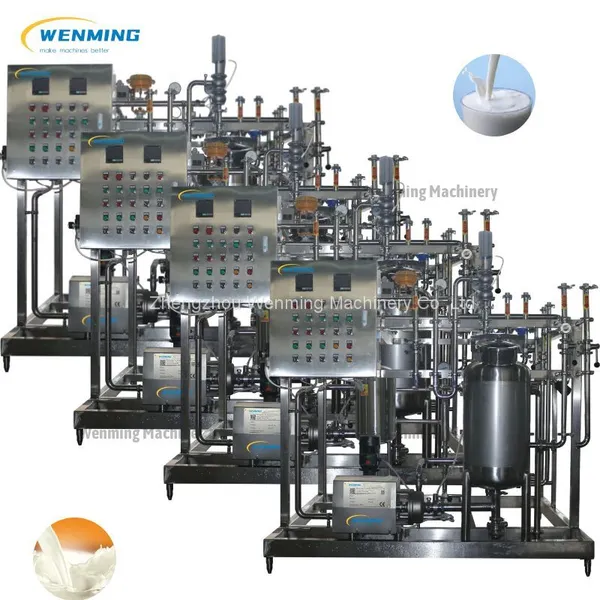

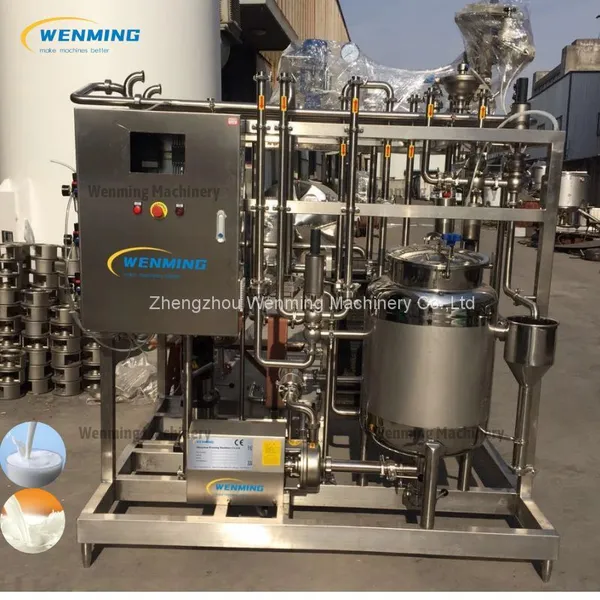

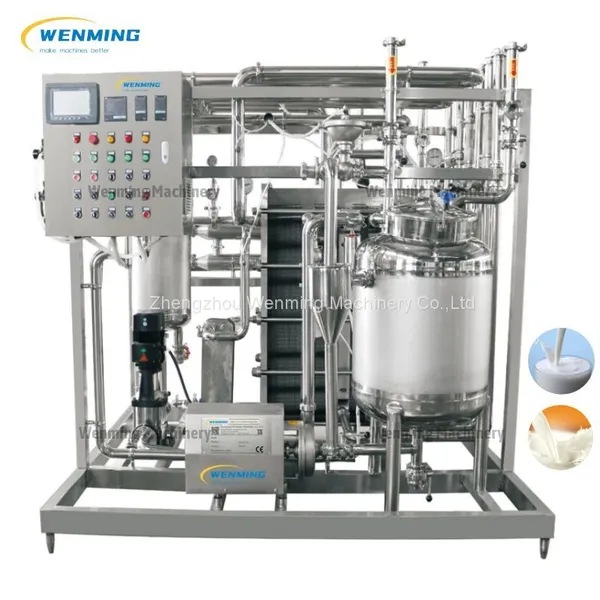

Milk Pasteurizer Machine
a) Plate type heat exchanger
b) Material balancing tank
c) Hot water balancing tank
d) Hot water pump of inlet
e) Material conveying pump
f) Hot water generator
g) Distribution cabinet
h) Temperature holding tank, stainless steel pipe, valve etc.
2.Technical parameters
Model and specification |
WM-PT-SN-1t |
WM-PT-SN-2t |
WM-PT-SN-3t |
|
capacity(t/h) |
1 |
2 |
3 |
|
Steam consumption(kg/h) |
40/76 |
80/152 |
120/228 |
|
Steam pressure(bar) |
4 |
4 |
4 |
|
Cooling water flow rate(Kcal/h) |
20,000 |
40,000 |
60,000 |
|
Ice water flow rate(t/h) |
3 |
6 |
9 |
|
Power kw) |
3 |
4 |
4 |
|
Outline dimensions(l*w*h) |
1.6*1.4*1.8 |
1.6*1.4*1.8 |
1.8*1.6*2.0 |
|
Weight (kg) |
730 |
910 |
940 |
|
Pipe diameter() |
material |
32 |
32 |
38 |
Steam |
DN25 |
DN25 |
DN25 |
|
medium |
32 |
32 |
38 |
|
3. Milk Pasteurizer Machine Videos
Our Youtube channel(you can follow us to see latest machine videos)：
/channel/UC2csvp-_AvZ-OnSFKL6pmMw
