This Milk separator Machine is design for degreasing. Milk separating is the most important processing in dairy industry. The milk degreasing machine mainly used in degreasing from milk, and removal of foreign impurities in the milk. Similar materials can also be used for clarification and purification.
All the parts that may contact the feedstock are made of stainless steel. Availably reduce the chemical effect of the feedstock at the machine spare parts.
Power drive adopts the friction clutch, start reliably, prevent overland. The bearings are SKF grade in Sweden, guarantee working precision of the machine.
The separator adopts the PLC automatic control system, can carry out automatic
de-slugging, ability of fitness is stronger, automatic degree is higher. Easy to adjust, worker labor strength is opposite to ease, the solids content ratio in the mixture fluid is widely.
Semi-Automatic Milk separating machine( with soild-wall bowl) features and details:1.shorter, small size, ease of operation workers, less workshop space;
2.power ie smaller, low power consumption;
3.With the double-Centripetal pump function ,can adjust fat content variationally
4.With milk standardization device
5.Good separation effect. (cream in skim milk is under 0.05%)
Model |
WM-MSR5 |
WM-MSR 10A |
WM-MSR 10B |
WM-MSR 30 |
WM-MSR 50 |
Product |
500-800 |
500-1000 |
500-1000 |
3000 |
5000 |
L/h | |||||
Speed |
7546 |
7546 |
7546 |
7320 |
6500 |
rpm | |||||
Power |
0.55 |
1.5 |
1.5 |
5.5 |
7.5 |
KW | |||||
De-slugged |
manpower |
manpower |
manpower |
manpower |
manpower |
Output pressure Kpa |
Cream:open |
||||
open |
Milk: 100-250 |
100-250 |
100-350 |
100-350 |
|
temperature |
30-35 |
30-35 |
30-35 |
30-35 |
30-35 |
|
Dimension mm |
600*360*600 |
680*400*680 |
680*400*680 |
800*550*1400 |
870*650*1500 |
Weight |
90 kg |
105 kg |
110 kg |
450 kg |
650 kg |
Automatic Milk separating machine (with self-cleaning bowl) features and technical details:
1.shorter, small size, ease of operation workers, less workshop space;
2.power is smaller, low power consumption;
3.With the double-Centripetal pump function , can adjust fat content variationally
4.With milk standardization device
5.With clean-in-place (CIP)
6.With special mechanism for de-slugging, can control number of de-slugged impurities.
7.Good separation effect. (cream in skim milk is under 0.05%)
Model |
WM-MSH5 |
WM-MSH10 |
WM-MSH30 |
WM-MSH50 |
WM-MSH100 |
Product |
500 |
1000 |
3000 |
5000 |
10000 |
L/h | |||||
Bowl speed |
7546 |
7320 |
6500 |
6000 |
6000 |
rpm | |||||
Power |
1.5 |
4 |
7.5 |
11 |
15 |
KW | |||||
De-slugged |
PLC |
PLC |
PLC |
PLC |
PLC |
Output pressure |
100-350 |
100-350 |
100-350 |
100-350 |
100-350 |
KPa | |||||
temperature |
30-35 |
30-35 |
30-35 |
30-35 |
30-35 |
。C | |||||
|
Dimension mm |
700*550*800 |
800*600*1250 |
1100*650*1550 |
1100*700*1600 |
1400*1000*1800 |
Weight |
120 kg |
450 kg |
680 kg |
1100 kg |
1500 kg |

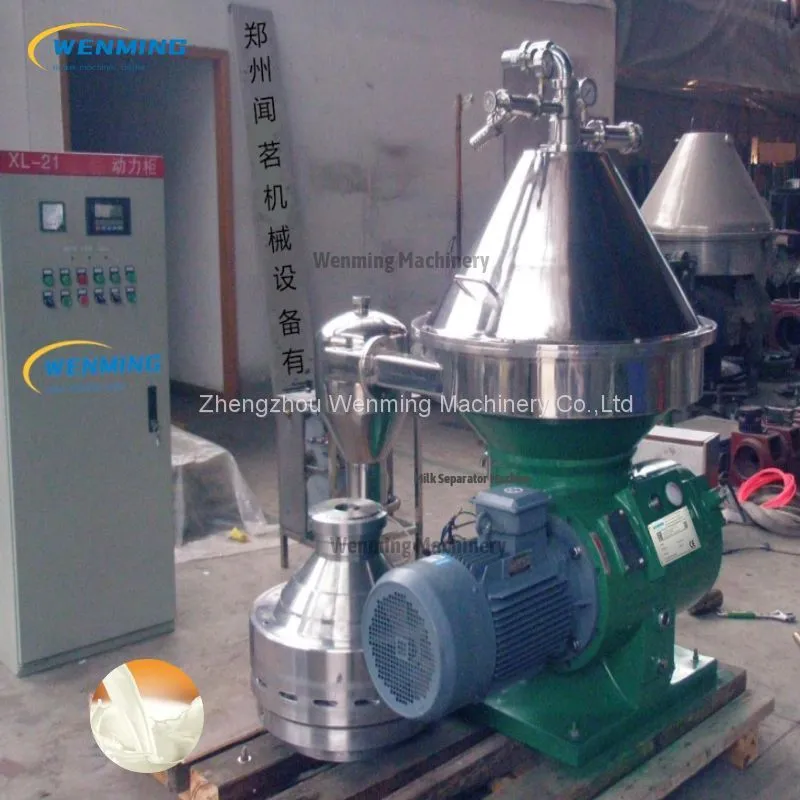

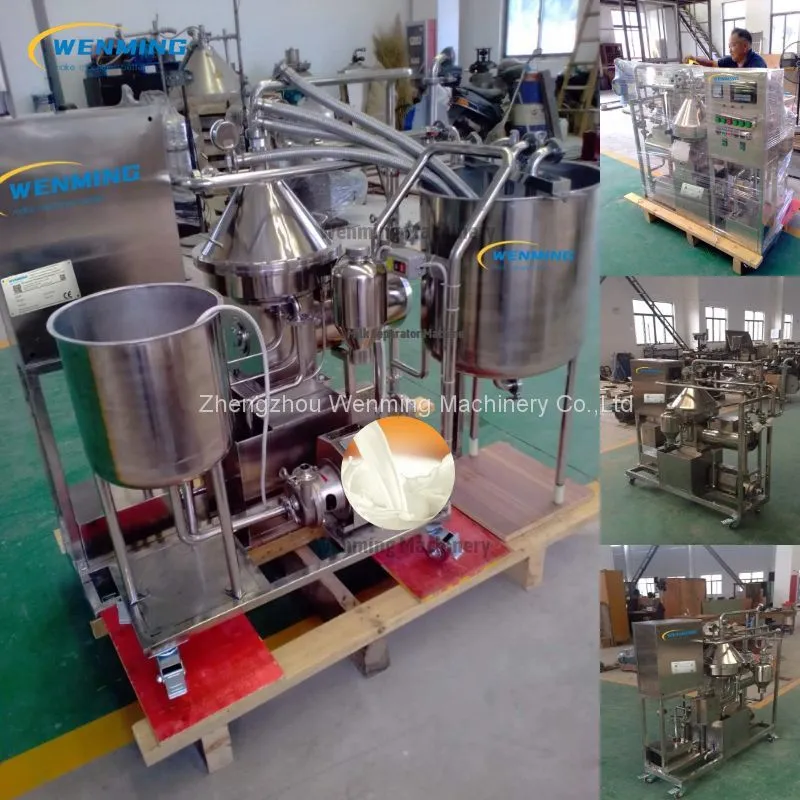

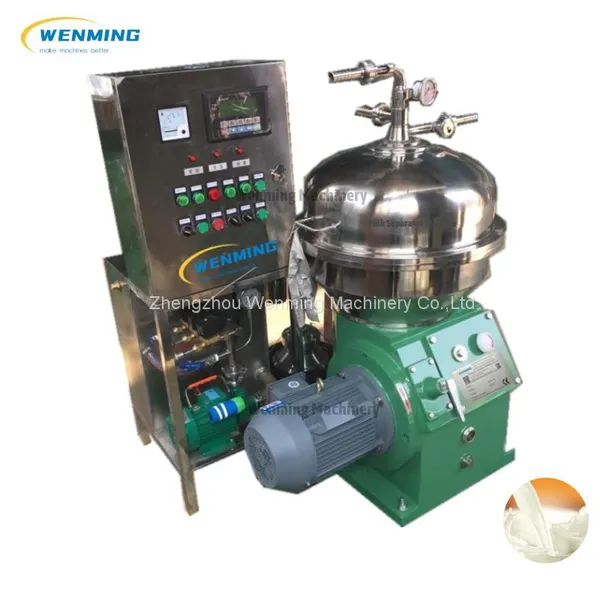

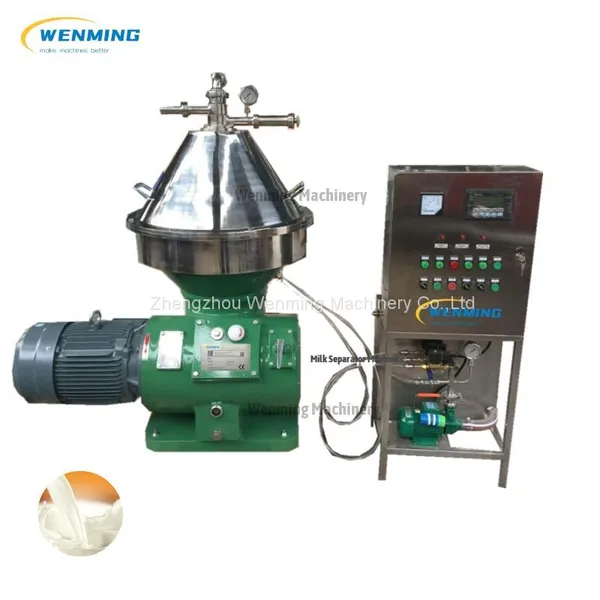

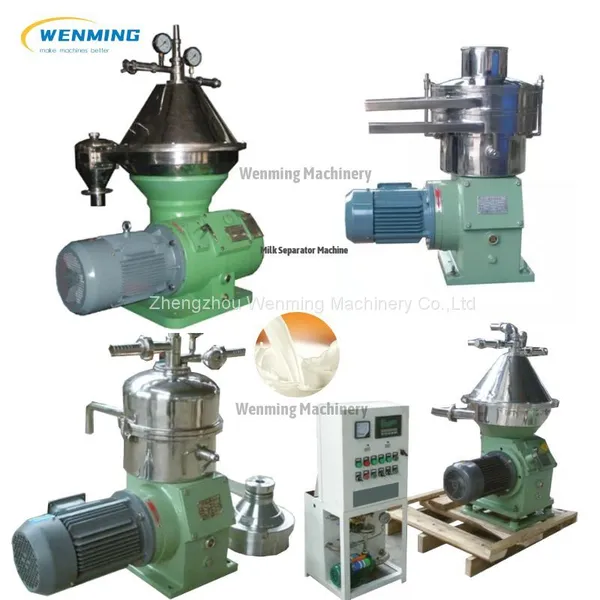

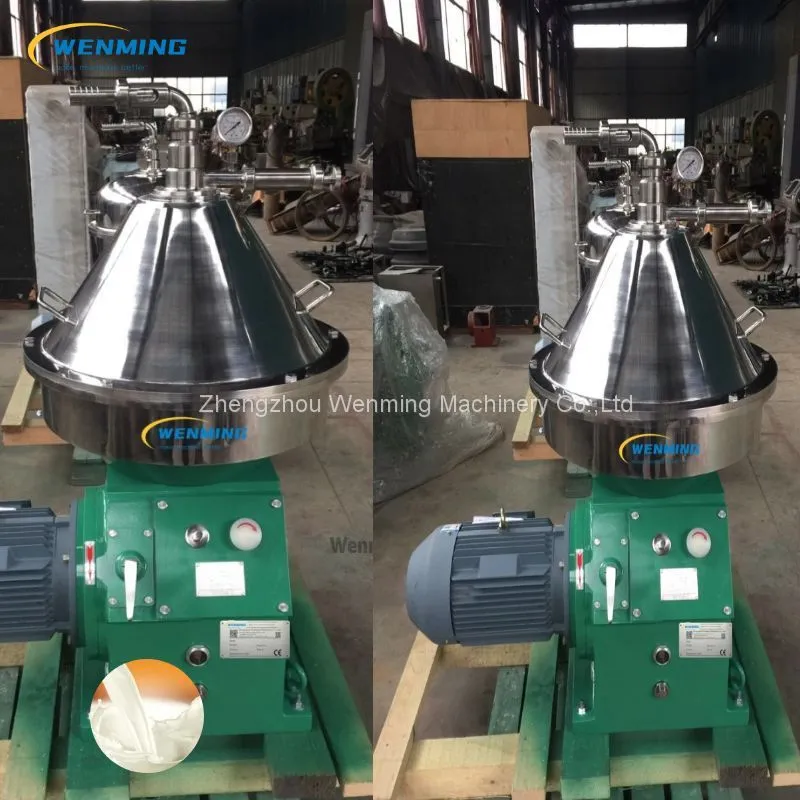

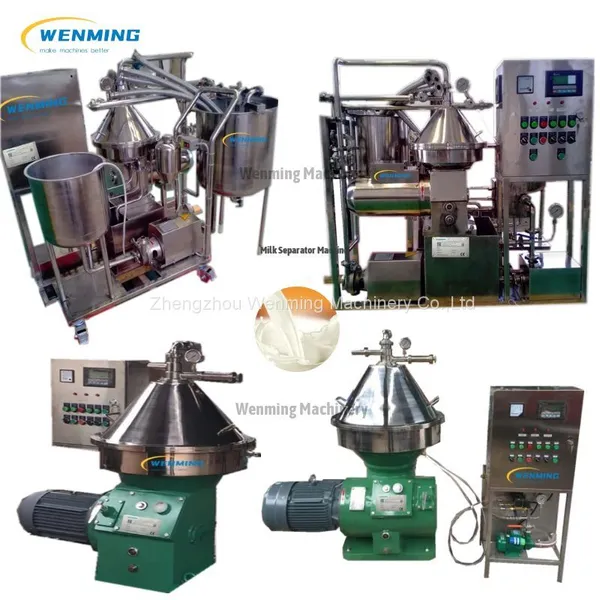

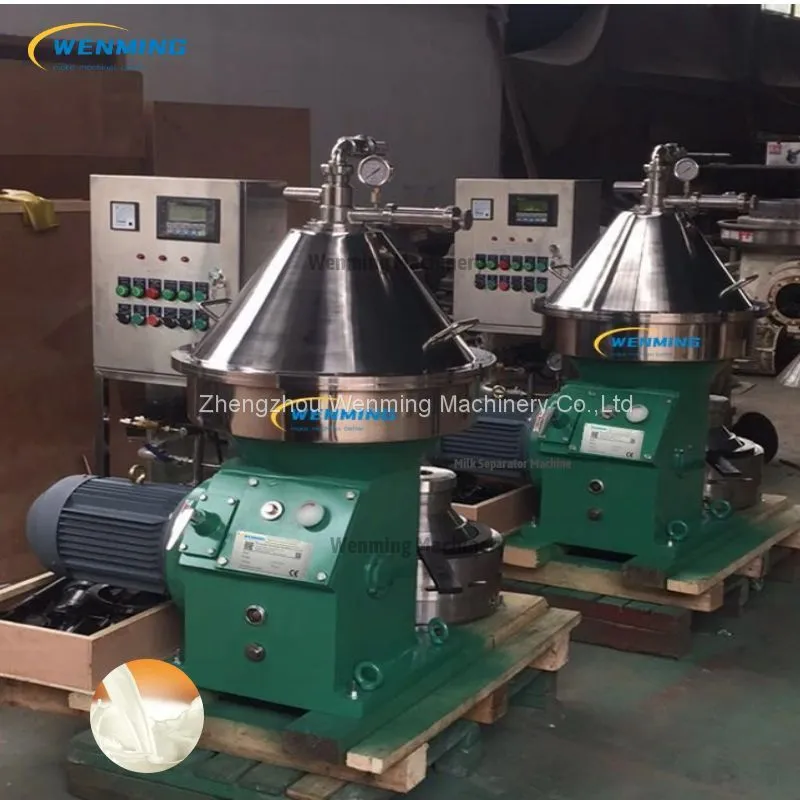

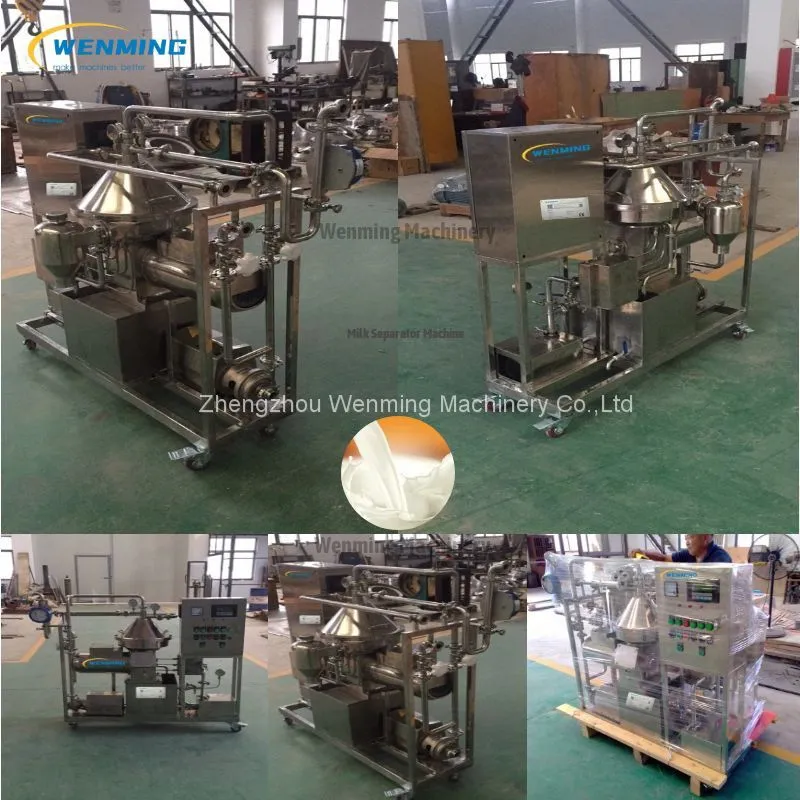

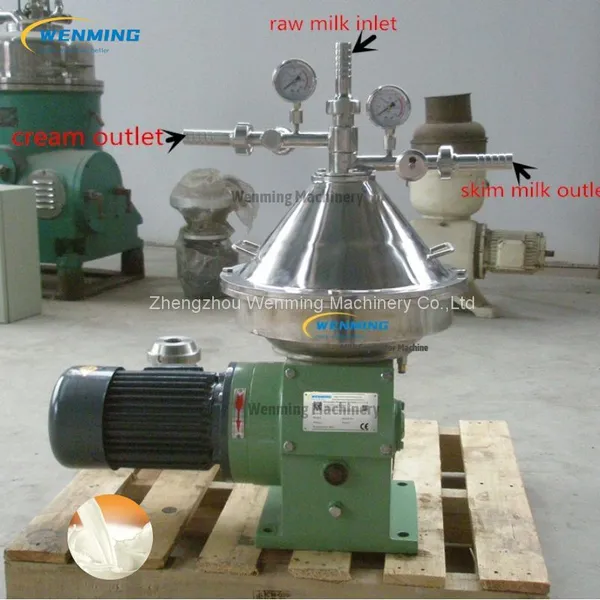

Pictures of Milk Separator Machine
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Milk separator Video:
https://youtu.be/b6cv5vMD2Lo
