Help CenterAutomatic Milk Pouch Packing Machine Price Milk Packing Liquid Pouch Filling Machine
Related Products
-
E;ectroc Milk UHT Sterilization Machine Sterilizing Machine Steam Sterilizer MchineUS$ 999 - 2499MOQ: 1 Set -
Automatic Milk Pasteurizer Machine-Milk Processing Equipment-Milk Pasteurization Sterilization Machine for SaleUS$ 3999 - 19999MOQ: 1 Set
-
Small Milk Pasteurization Machine Automatic Egg Pasteurization Machine Milk Pasteurizer EquipementUS$ 1100 - 2999MOQ: 1 Set
-
Laboratory Sterilizers Sterilization of Laboratory EquipmentUS$ 3999 - 19999MOQ: 1 Set
-
Small High Pressure Autoclave Sterilization Machine-stainless Steel High Pressure Steam Sterilizer Machine PriceUS$ 650 - 2950MOQ: 1 Set

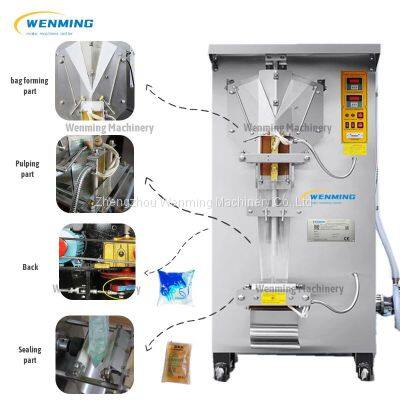

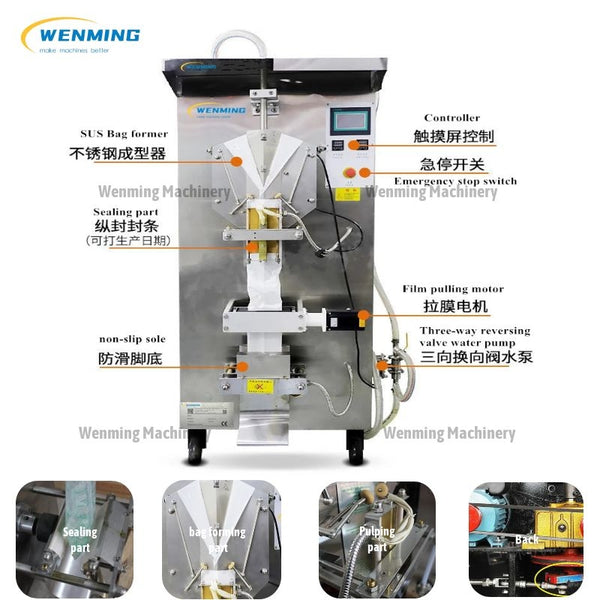

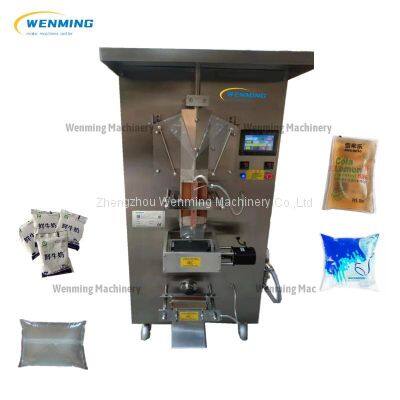

This Pouch Packing machine is design for packing liquid food such as milk, water,juice etc. The Main device consists of frame, mechanical transmission system, film feeding into the membrane system, traction mechanism, washing membrane sterilization device, uv device, heat sealing cutting machine, filling equipment, etc. Adopt stainless steel material, conform to the requirements of the food production. Each process by Japan's matsushita PLC control center through touch screen using the computer program to accurately completed according to design requirements. The whole machine has a thin-film adjust device, automatic length measuring adjustment device, multichannel sterilization processing, machinery, mechanical transmission, no air pump, low noise, imports of electrical appliances, filling accuracy is high, the sealing unique health and firm, convenient and reliable operation, it is an ideal equipment of bagged water production.
This machine is widely used in milk, soy milk, drinks, soy sauce, vinegar, rice wine, edible oil, detergent, chemical products, such as all kinds of liquid film packaging, all packaging application: uv sterilization, bag molding, print, quantitative filling, sealing, cutting, counting automatically completed, the heat sealing temperature adopts the automatic control, is not affected by power grid voltage, after packaging products beautiful and strong, the whole machine adopts stainless steel structure, to ensure that meet the national hygiene standards.

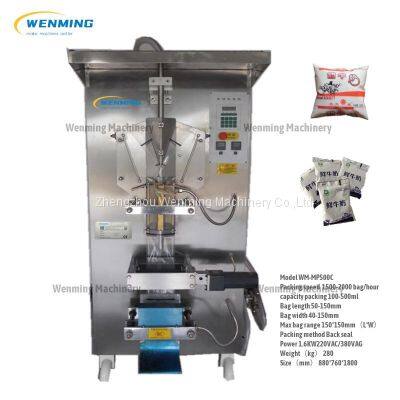

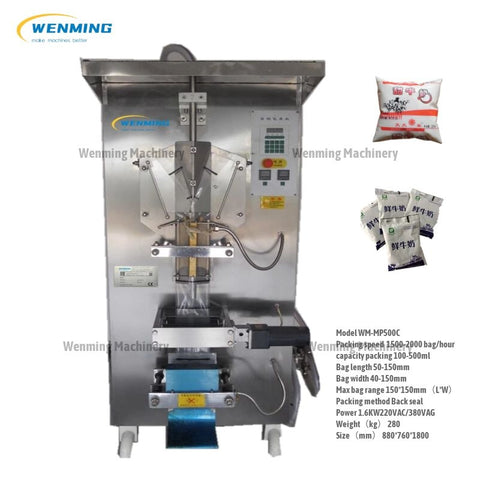

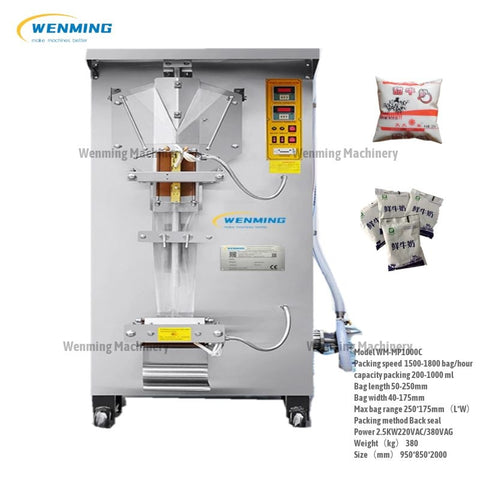

2.Technical parametersModel | WM-MP500C | WM-MP1000C |
Packing speed | 1500-2000 bag/hour | 1500-1800 bag/hour |
capacity packing | 100-500ml | 200-1000 ml |
Bag length | 50-150mm | 50-250mm |
Bag width | 40-150mm | 40-175mm |
Max bag range | 150*150mm（L*W） | 250*175mm（L*W） |
Packing method | Back seal | Back seal |
Power | 1.6KW220VAC/380VAG | 2.5KW220VAC/380VAG |
Weight（kg） | 280 | 380 |
Size（mm） | 880*760*1800 | 950*850*2000 |

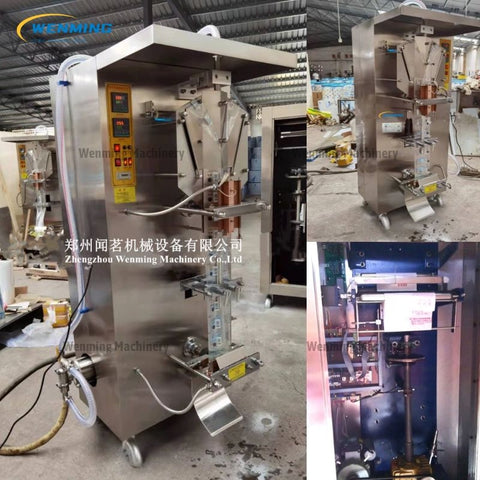

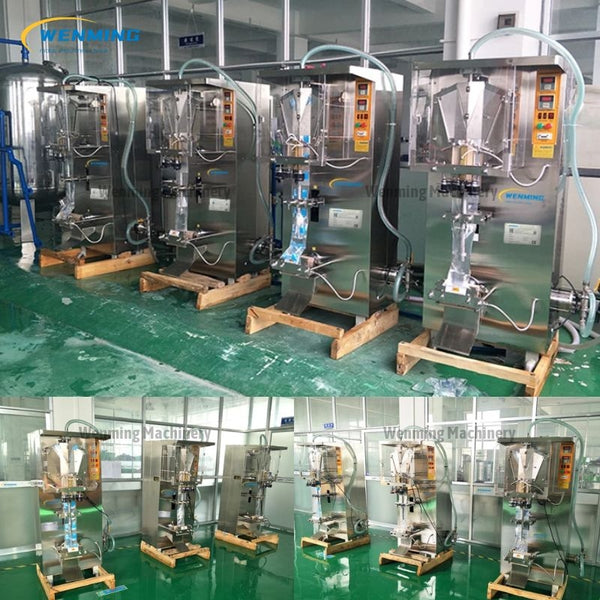

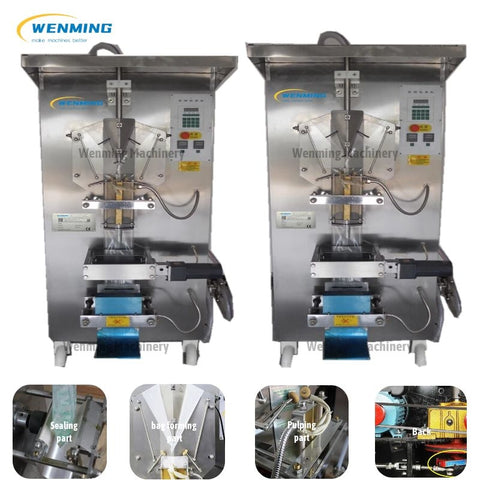

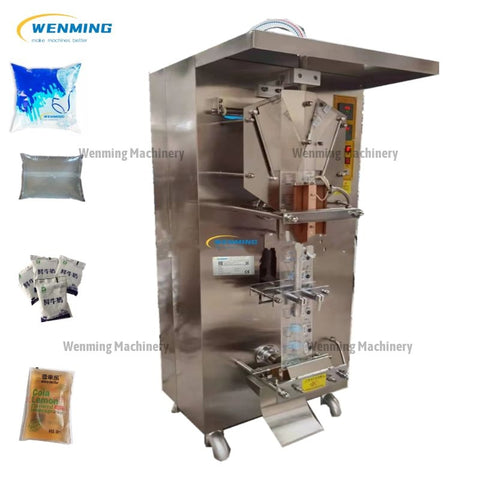

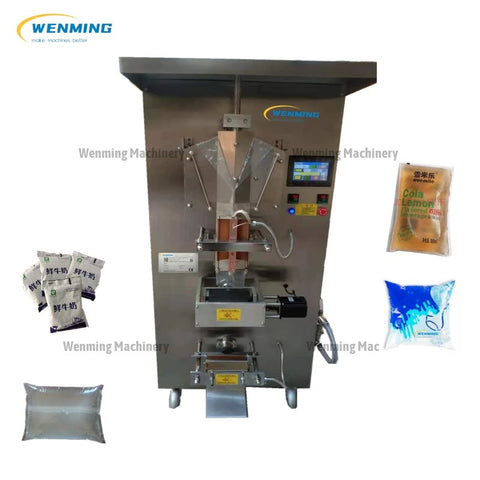

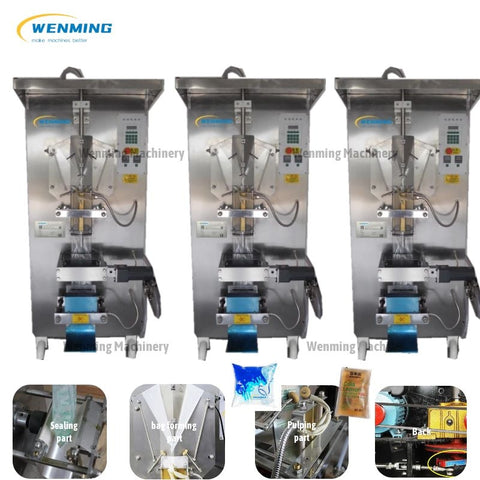

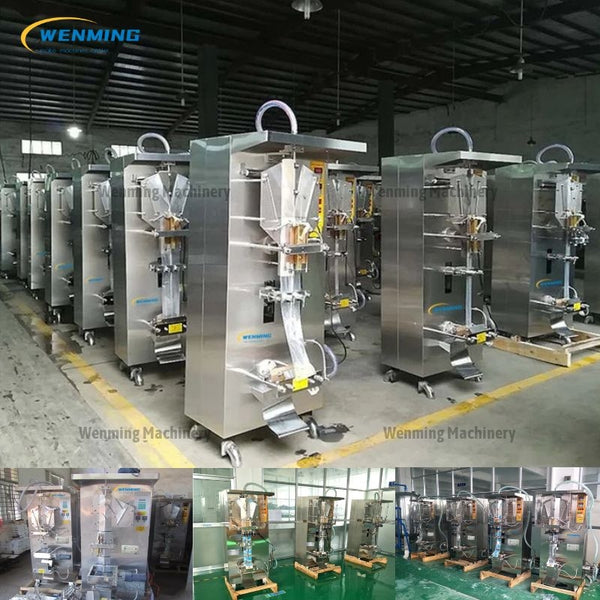

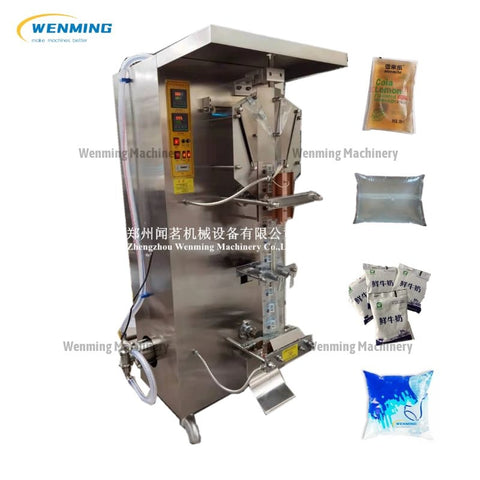

3. Milk Pouch Packing Video and pictures:
| |
| |
| |
| |
/channel/UC2csvp-_AvZ-OnSFKL6pmMw
