Cast Steel Rising Stem Knife Gate Valve ANSI Class150

Cast Steel Rising Stem Knife Gate Valve ANSI Class150 thumbnail-1
Cast Steel Rising Stem Knife Gate Valve ANSI Class150 thumbnail-2
Cast Steel Rising Stem Knife Gate Valve ANSI Class150 thumbnail-3
Cast Steel Rising Stem Knife Gate Valve ANSI Class150 thumbnail-4
Cast Steel Rising Stem Knife Gate Valve ANSI Class150 thumbnail-5
Cast Steel Rising Stem Knife Gate Valve ANSI Class150 photo-1

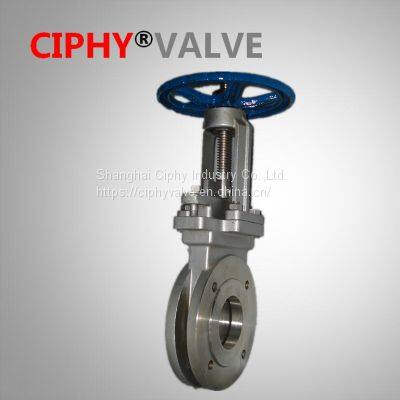

Cast Steel Rising Stem Knife Gate Valve ANSI Class150 photo-2

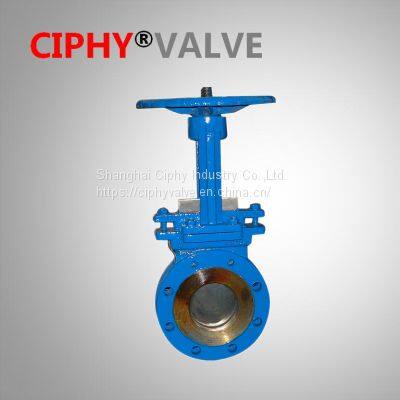

Cast Steel Rising Stem Knife Gate Valve ANSI Class150 photo-3

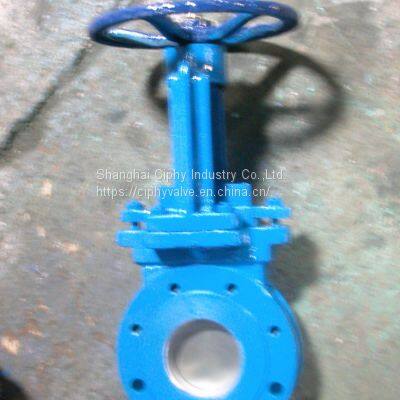

Cast Steel Rising Stem Knife Gate Valve ANSI Class150 photo-4

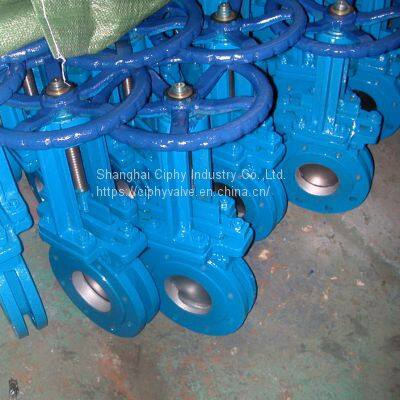

Cast Steel Rising Stem Knife Gate Valve ANSI Class150 photo-5
US$ 200 - 23000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ciphy
Place of Origin:
China
Material:
Casting
Contact Supplier Request Quote Chat Now
Shanghai Ciphy Industry Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ciphy
Place of Origin China
Material Casting
Application General
Structure Gate
Standard or Nonstandard Standard
Pressure Low Pressure
Power Manual
Port Size shanghai
Media Water
Temperature of Media Low Temperature
Product Description

CAST STEEL OR STAINLESS STEEL
KNIFE GATE VALVE BOLTED GLAND

DESIGN DESCRIPTION:
Design: MSS SP-81;Manufacture: Factory STD;Face To Face: MSS SP-81;Flange: ANSI B16.1;Bolt Gland;Metal Seal Available Soft Seal;Material and Working Temp.:
Cast Steel: -20ºC-400ºC(-4°F -752°F)PTFE: 180ºC(356°F) MaximumStainless Steel Seal: 180ºC(356°F) Maximum

PARTS AND MATERIAL:

NO. PARTS NAME MATERIAL
1 BODY ASTM A216-WCB/A351-CF8/A351-CF8M
2 DISC ASTM A351-CF8/A351-CF8M/A216-WCB
3 GASKET PTFE/NBR/CARBIDE ALLOY/S.S.
4 GLAND ASTM A216-WCB
5 BONNET NUT ASTM A193-B7
6 BONNET BOLT ASTM A194-2H
7 STEM BOLT ASTM A193-B7
8 RESISTENT PIN CARBON STEEL
9 BONNET ASTM A216-WCB/A351-CF8/A351-CF8M
10 STEM NUT BRASS
11 HANDWHEEL CAST IRON
12 H.W.LOCKNUT DUCTILE IRON
13 STEM ASTEM SS304/SS316/CARBON STEEL
14 SEAL RING NBR/PTFE/S.S/CARBIDE ALLOY
OTHER MATERIALS ARE AVAILABLE UPON REQUEST.


DIMENSIONS LIST(UNIT:MM):

SIZE DN L D D1 D2 H b n-Φ W
2" 50 55 152 121 92 302 16 4-19 240
2-1/2" 65 55 178 140 111 317 18 4-19 240
3" 80 55 190 153 127 340 19 4-19 240
4" 100 55 229 191 157 377 20 8-19 280
5" 125 60 254 216 186 430 20 8-22 280
6" 150 60 279 242 216 525 20 8-22 360
8" 200 70 343 299 278 670 22 8-22 360
10" 250 80 406 362 324 771 22 12-25 400
12" 300 80 483 432 381 895 25 12-25 400
14" 350 90 533 476 413 982 25 12-29 500
16" 400 90 597 540 470 1245 28 16-29 500
18" 450 130 635 578 533 1338 28 16-32 500
20" 500 130 698 635 584 1465 30 20-32 500
24" 600 130 813 750 692 1658 30 20-35 720

We hereby reserve the rights of any alternative dimension that would help to improve our valve's quality and working efficiency.
