Home > Industrial Equipment & Components > Valve > Ball Valve > Non-Rising Stem Resilient Gate Valve (IGAXRF-NRSS)
US$ 178 - 350000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ciphy
Place of Origin:
China
Model Number:
www.ciphy.com
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
30 days
Related Products
-
API 602 Gate Valves (FAAXRF-RS)US$ 200 - 50000MOQ: 1 Piece -
API602 Cryogenic Gate Valve (FAAXTH-LT)US$ 200 - 25000MOQ: 1 Piece
-
Pressure Seal Gate Valve (FAAXTH-PS)US$ 200 - 50000MOQ: 1 Piece
-
DN1200 Large Size Non-Rising Stem Resilient DIN Gate Valve (IGAXRF-NRSS)US$ 178 - 350000MOQ: 1 Piece
-
API602 Cryogenic Gate Valve (FAAXTH-LT)US$ 200 - 259000MOQ: 1 Piece
Brand Name
ciphy
Place of Origin
China
Model Number
www.ciphy.com
Material
Casting
Application
General
Structure
Gate
Standard or Nonstandard
Standard
Pressure
Low Pressure
Power
Pneumatic
Port Size
DN40-2500
Media
Water
Temperature of Media
Low Temperature
Product Description

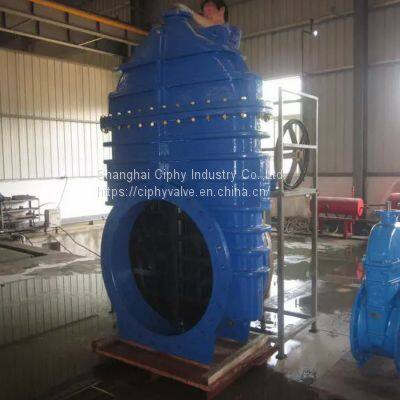

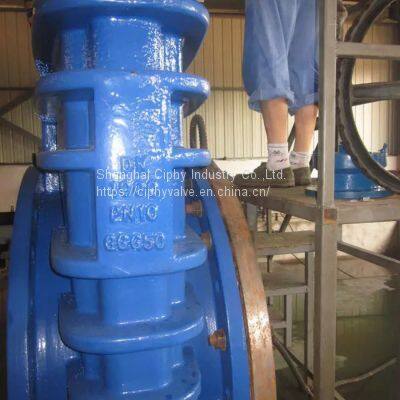

IGAXRF-NRSS
CAST IRON ANSI NON-RISING STEM SOFT SEAL GATE VALVE, FLANGED, HANDWHEEL;
1)Standard
Design: MSS SP-70
Face to Face: ANSI B16.10
Flange: ANSI B16.5
2)Main Parts Name and Material
Body: GGG50
Disc: GGG50+EPDM/NBR
Stem Nut: Brass
Stem: X20CR13
Bonnet: GGG50
Handwheel: Steel/GGG50
Dust ring: EPDM/NBR
Sealing ring: PTFE
O-ring: NBR/EPDM
Nut: Brass
Holding Ring: Brass
3)Size :2-24
4)Drawing
Attached Picture or Website
