1.485Gbps Video SFP Optical Transceiver

1.485Gbps Video SFP Optical Transceiver thumbnail-1

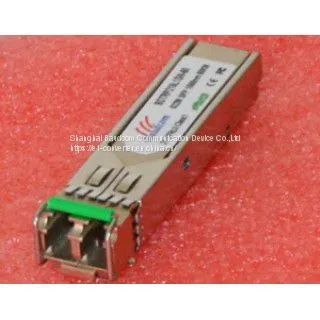

1.485Gbps Video SFP Optical Transceiver photo-1
US$ 100 - 150 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Baudcom
Place of Origin:
China
Model Number:
BDR-3115-L1C
Contact Supplier Request Quote Chat Now
Shanghai Baudcom Communication Device Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
1 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Baudcom
Place of Origin China
Model Number BDR-3115-L1C

Features
HD-SDI SFP Transceiver available
SD-SDI SFP Transceiver available
SMPTE 297-2006 Compatible.
Metal enclosure for Lower EMI
1310nm FP laser and PIN photodetector
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard :  0 to +70°C
Industrial : -40 to +85°C
Applications
SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces.
HDTV/SDTV Service Interfaces.

Specification

Absolute Maximum Ratings

Table 1 – Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage Vcc –0.5 4.5 V
Storage Temperature Ts -40 +85 °C
Operating Humidity – 5 85 %

Recommended Operating Conditions

Table 2 – Recommended Operating Conditions

Parameter Symbol Min Typical Max Unit
Operating Case Temperature Standard Tc 0
+70 °C
Industrial -40
+85 °C
Power Supply Voltage Vcc 3.13 3.3 3.47 V
Power Supply Current Icc

300 mA
Data Rate

1.485
Gbps



Optical and Electrical Characteristics

BDP-3115-L1x(D):  (FP and PIN, 1310nm, 10km Reach)

Table 3 – Optical and Electrical Characteristics

Parameter Symbol Min Typical Max Unit Notes
Transmitter
Centre Wavelength λc 1260 1310 1360 nm
Spectral Width (RMS) σ

4 nm
Average Output Power Pout -9
-3 dBm 1
Extinction Ratio ER 9

dB
Optical Rise/Fall Time (20%~80%) tr/tf

0.16 ns
Data Input Swing Differential VIN 400
1800 mV 2
Input Differential Impedance ZIN 90 100 110 Ω
TX Disable Disable
2.0
Vcc V
Enable
0
0.8 V
TX Fault Fault
2.0
Vcc V
Normal
0
0.8 V
Receiver
Centre Wavelength λc 1260
1580 nm
Receiver Sensitivity


-18 dBm 3
Receiver Overload
-3

dBm 3
LOS De-Assert LOSD

-20 dBm
LOS Assert LOSA -30

dBm
LOS Hysteresis
1
4 dB
Data Output Swing Differential Vout 370
1800 mV 4
LOS High 2.0
Vcc V
Low

0.8 V

Notes:

1. The optical power is launched into SMF.

2. PECL input, internally AC-coupled and terminated.

3. Measured with a pathological data pattern.

4. Internally AC-coupled.



Timing and Electrical

Table 4 – Timing and Electrical

Parameter Symbol Min Typical Max Unit
Tx Disable Negate Time t_on

1 ms
Tx Disable Assert Time t_off

10 μs
Time To Initialize, including Reset of Tx Fault t_init

300 ms
Tx Fault Assert Time t_fault

100 μs
Tx Disable To Reset t_reset 10

μs
LOS Assert Time t_loss_on

100 μs
LOS De-assert Time t_loss_off

100 μs
Serial ID Clock Rate f_serial_clock

400 KHz
MOD_DEF (0:2)-High VH 2
Vcc V
MOD_DEF (0:2)-Low VL

0.8 V



Diagnostics

Table 5 – Diagnostics Specification

Parameter Range Unit Accuracy Calibration
Temperature 0 to +70 °C ±3°C Internal / External
-40 to +85
Voltage 3.0 to 3.6 V ±3% Internal / External
Bias Current 0 to 100 mA ±10% Internal / External
TX Power –9 to -3 dBm ±3dB Internal / External
RX Power –23 to -3 dBm ±3dB Internal / External


Product Tags: SFP , Optical Transceiver
