Home > Instruments & Meters > Test Instrument > Test Machine > Computer Control Compression Testing Machine YAW-2000

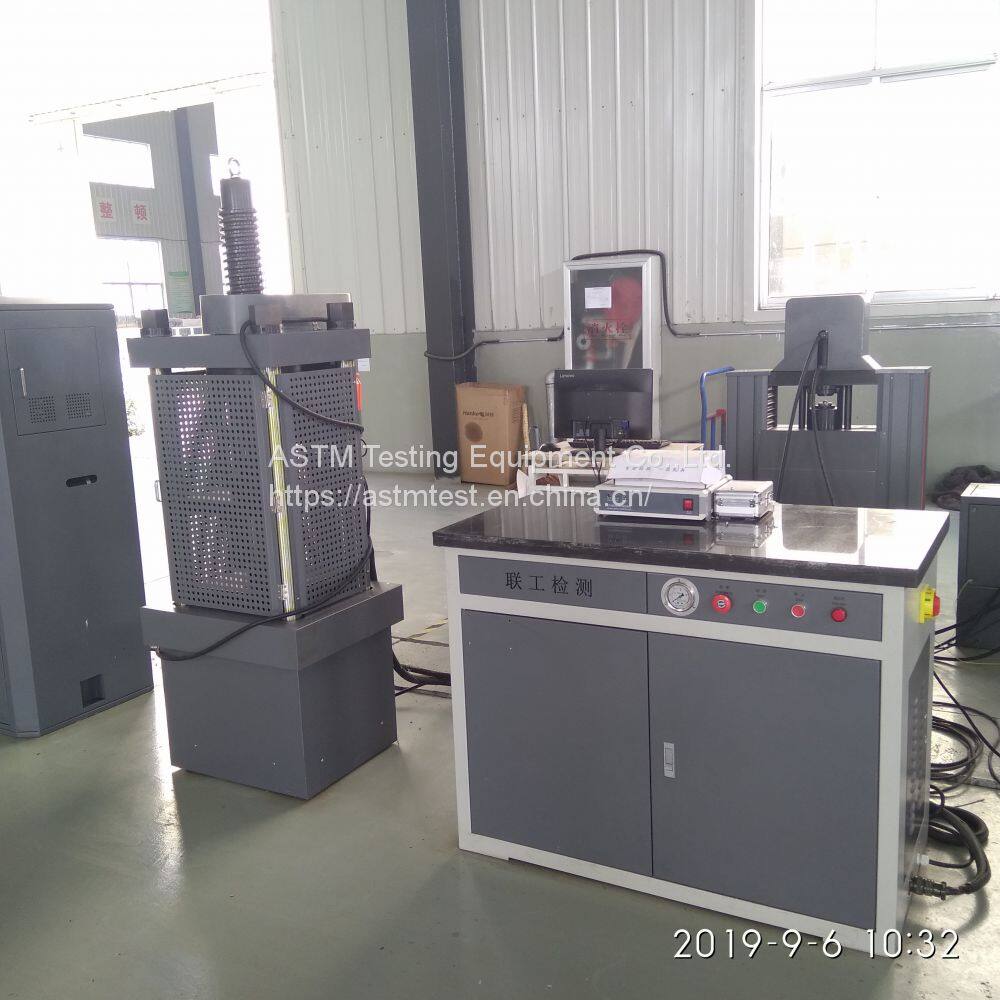

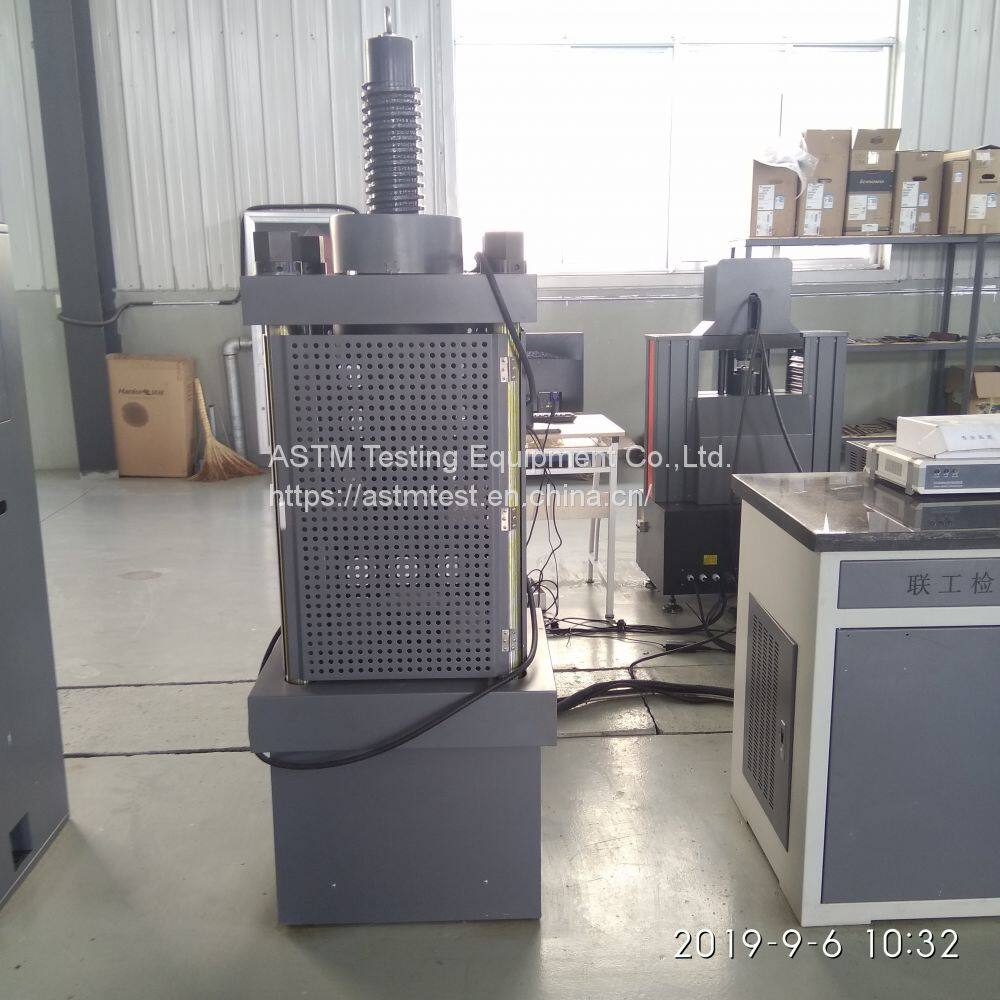

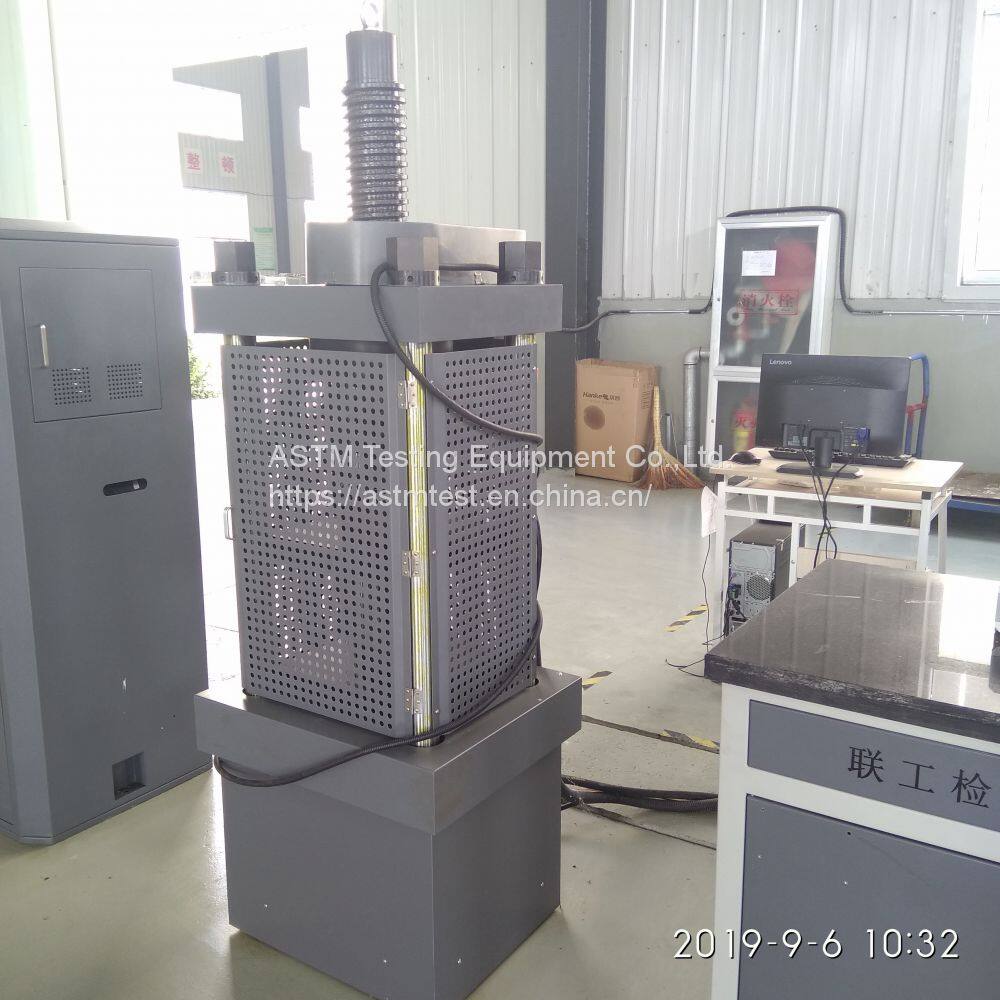

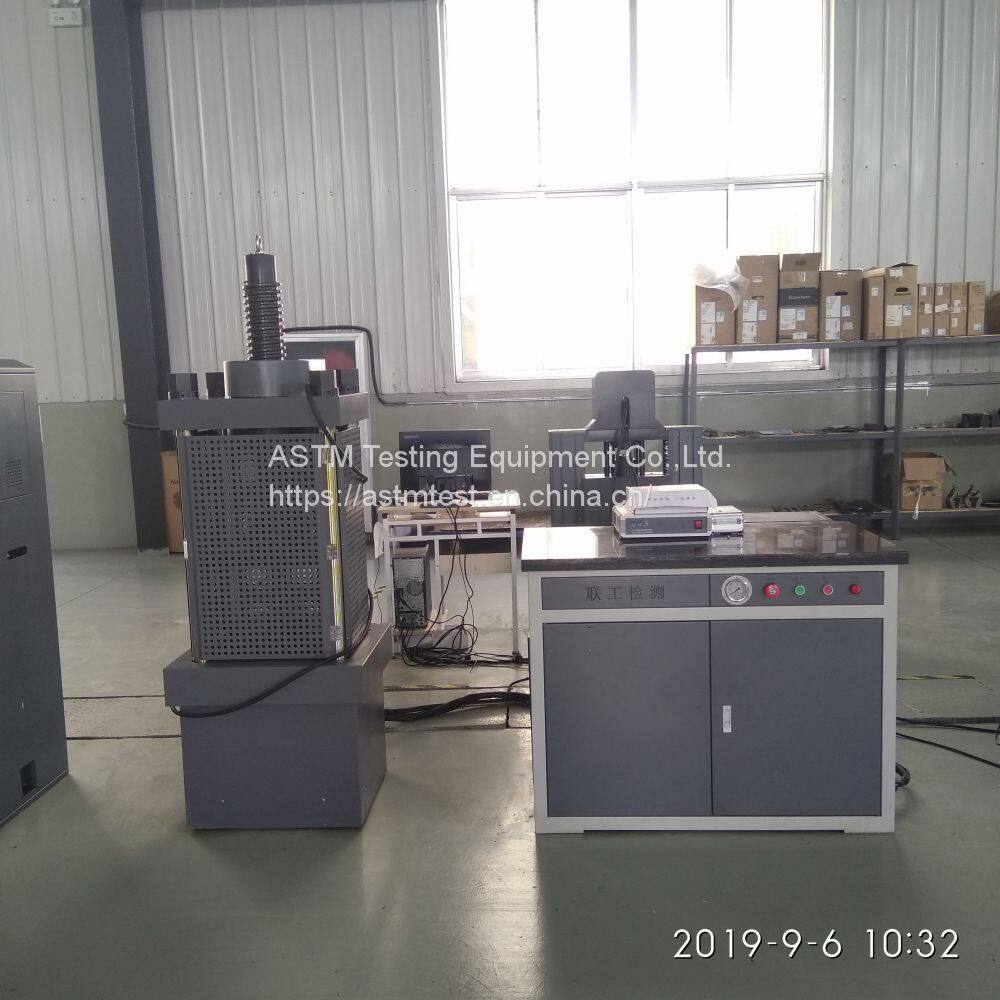

Computer Control Compression Testing Machine YAW-2000
US$ 10000 - 15000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ASTM
Place of Origin:
China
Model Number:
YAW-2000
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
-
Concrete Compression Testing Machine YAW-2000 Cement Compressive Strength Testing MachineUS$ 10000 - 15000MOQ: 1 Set -
YAW-300C Computer Control Compression-flexural Testing MachineUS$ 7000 - 15000MOQ: 1 Set
-
Automatic Computer Control Compaction Testing Equipment Used for Concrete Cement Pressure and Bend TestUS$ 7000 - 15000MOQ: 1 Set
-
Building Materials Concrete Cement Compression Testing Machine Pressure Testing Equipment PriceUS$ 7000 - 15000MOQ: 1 Set
-
Concrete Brick Tile Compression and Flexural Strength Tester Manufacturer Price YAW-300CUS$ 7000 - 15000MOQ: 1 Set
Brand Name
ASTM
Place of Origin
China
Model Number
YAW-2000
Power
Hydraulic
Usage
Compression Testing Machine
1.Usage
This machine is mainly used for the compression strength test of brick, stone, cement, concrete, etc, also it can be used for other material’s compressive performance test.
2.Main Technical Parameter
Max. Test Force |
2000kN |
Test force Measurement Range kN |
4%-100%FS |
Test Force indicating Error |
≤indicating value±1% |
Test Force Resolution |
0.01kN |
Hydraulic Pump Pressure Pressure Rated |
25MPa |
Upper and Lower Pressure Plate Size |
350*350mm |
Max.distance between upper and lower pressure plate |
400mm |
Piston Diameter |
φ320mm |
Piston Stroke |
100mm |
Motor Power |
Three Phase 0.75Kw |
Weight |
1150Kg |
