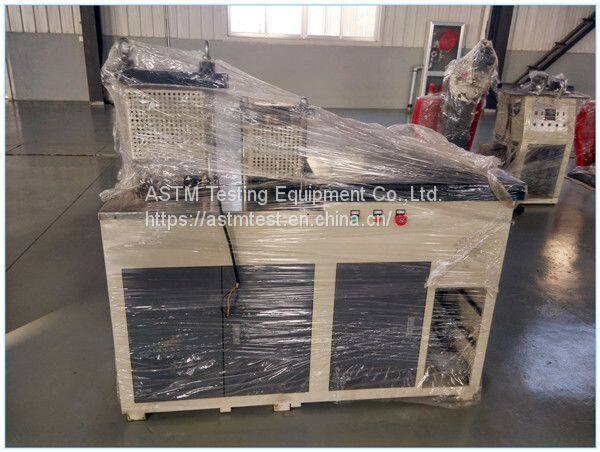

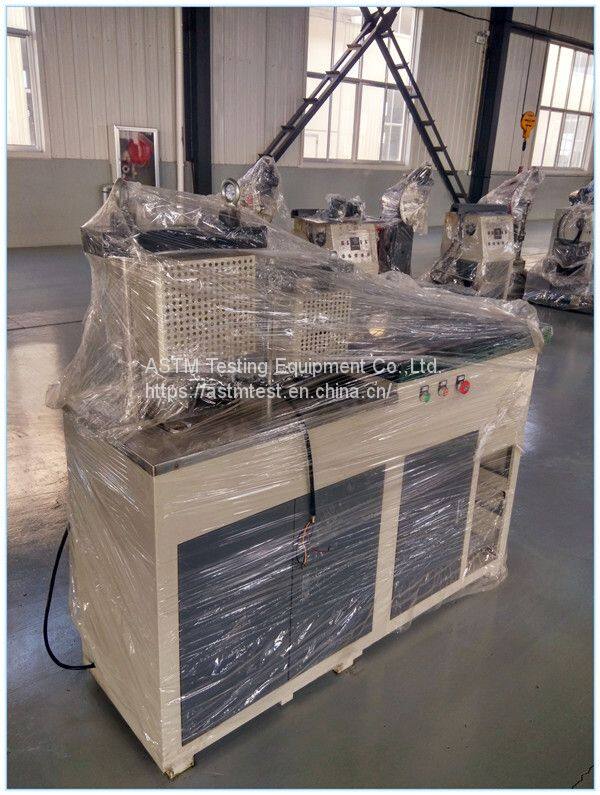

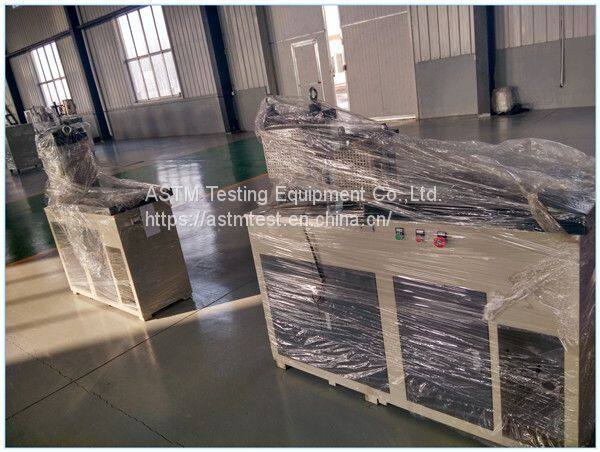

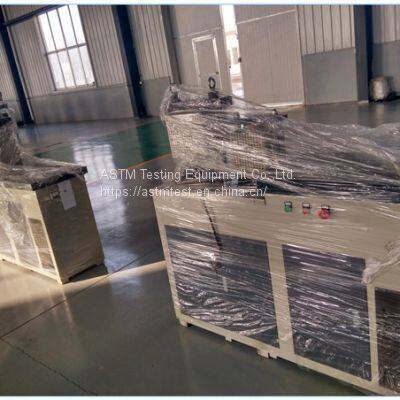

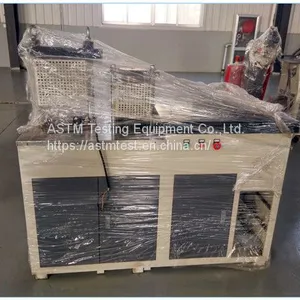

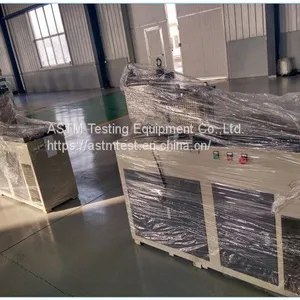

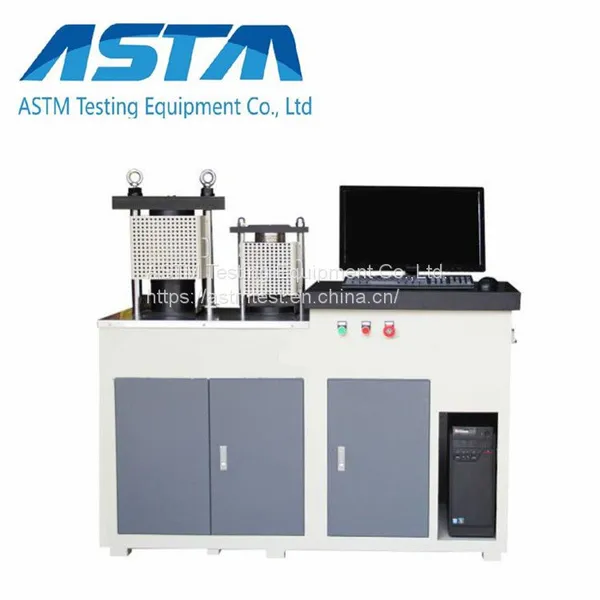

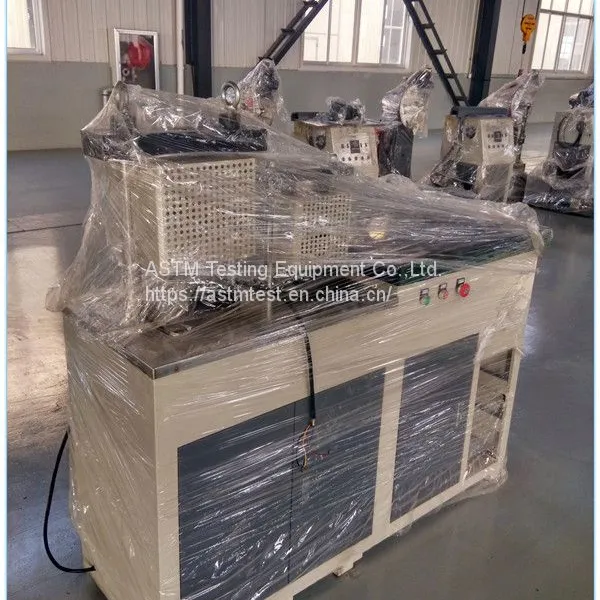

Help CenterConcrete Brick Tile Compression and Flexural Test Equipment / Compressive-flexural Strength Tester YAW-300C
Related Products
-
Digital Cement Stone Concrete Brick Compression Testing Equipment YES-2000E Universal Compression Testing Machine Electrically OperatedUS$ 4000 - 9800MOQ: 1 Set -
3000kN Hydraulic Loading Digital Display Electronic Force Measurement Compression Testing Machine YES-3000US$ 4000 - 9800MOQ: 1 Set
-
Barrel Universal Material Digital Compression Testing Machine YES Series China Mechanical Compression Testing Machine Factory PriceUS$ 4000 - 9800MOQ: 1 Set
-
Concrete Cement Brick Pressure Testing Equipment/concrete Pole Testing Equipment and Meters YES-2000US$ 4000 - 9800MOQ: 1 Set
-
Concrete Strength Testing Machine / Tester / Compression Test Machine Equipment YES-2000US$ 4000 - 9800MOQ: 1 Set
1.Product description

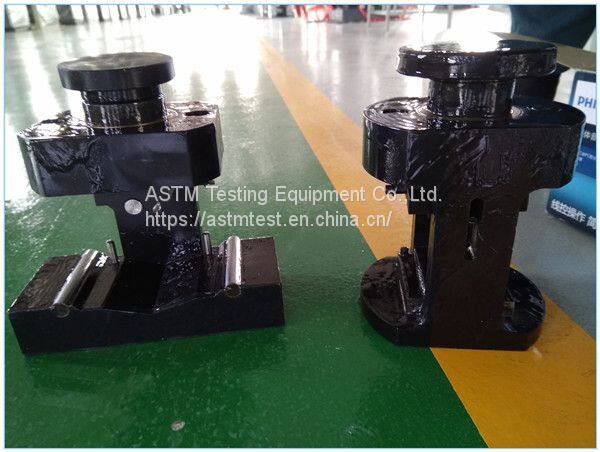

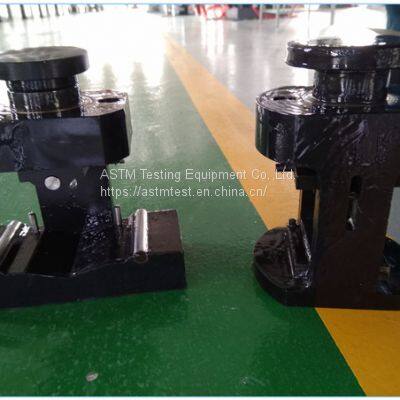

The test machine is mainly used for compressive strength test of cement, concrete, rock, red brick and other materials; the measurement and control system adopts high-precision digital servo valve, and has a closed-loop control function to achieve constant force loading. The machine runs stably and reliably. It can also be used for the compression test of other materials or the flexural performance test of concrete slabs after the installation of special fixture. Widely used in cement plants and quality inspection stations at all levels.
2.Technical Parameter
Item |
Compression |
Flexural |
Max.Test Force |
300kN |
10 |
Test Measurement Range |
20kN-300kN |
1-10 |
Test Force and Relative Error Value |
≤±1% |
≤±1% |
Upper and Lower Compression Plate Space |
250mm |
190mm |
Max. Piston Stroke |
80mm |
60mm |
Tow column space |
245mm |
180mm |
Compression Plate size |
φ160mm |
φ160mm |
Motor Power |
0.75KW |
|
