WTL 3.2*2.5mm Saw Resonator 12pF 10ppm SMD Frequency 26.000MHz Saw Resonator

Yiwu Kunchang E-commerce Firm
WTL 3.2*2.5mm Saw Resonator 12pF 10ppm SMD Frequency 26.000MHz Saw Resonator thumbnail-1
WTL 3.2*2.5mm Saw Resonator 12pF 10ppm SMD Frequency 26.000MHz Saw Resonator photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
WTL
Place of Origin:
China
Model Number:

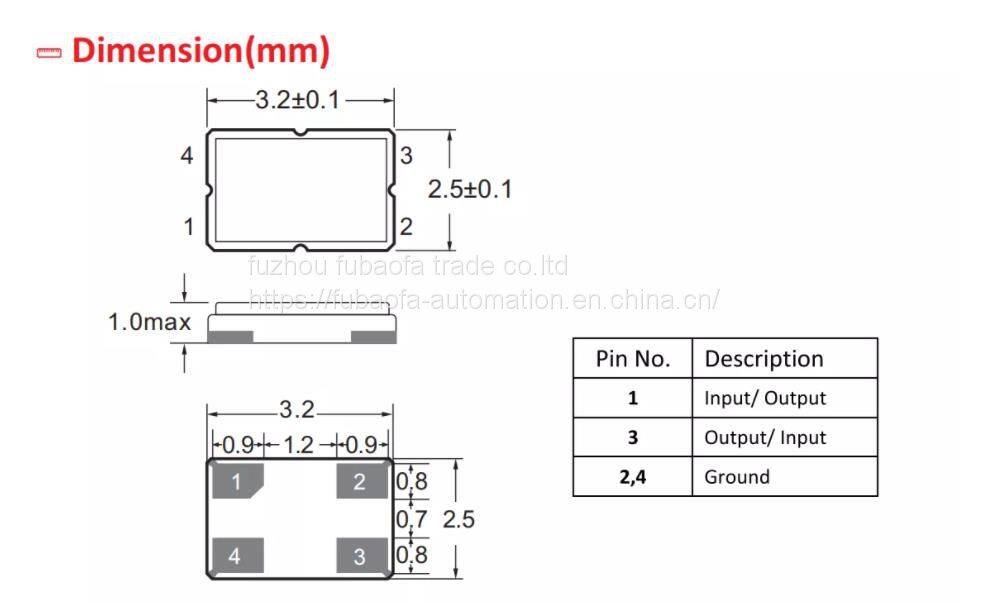

3.2*2.5mm Saw Resonator
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WTL
Place of Origin China
Model Number 3.2*2.5mm Saw Resonator



Maximum Rating
Item
Value
Unit
DC Voltage
VDC
10
V
Operation Temperature
T
-40 ~ +85
℃
Storage Temperature
Tstg
-55 ~ +125
℃
RF Power Dissipation
P
10
dBm
Item
Minimum
Typical
Maximum
Unit
Center Frequency
Absolute Frequency
fc

433.920

MHz
Tolerance from 433.920MHz
fc

±75

KHz
Insertion Loss(min)
IL

1.5
2.0
dB
Quality Factor
Unloaded Q
QU

18362


50Ω Loaded Q
QL

2150


Temperature
Stability
Turnover Temperature
T0
25
40
55
℃
Turnover Frequency
f0

fc


Frequency Temperature Coefficient
FTC

0.032

ppm/℃
Frequency Aging
Absolute Value during the First Year
|fA|

≤10

ppm/yr
DC Insulation Resistance between Any Two Pins

1.0


MΩ
RF
Equivalent RLC
Model
Motional Resistance
RM

13.2
18.0
Ω
Motional Inductance
LM

89.4
110.2
µH
Motional Capacitance
CM

1.5

fF
Static Capacitance
C0
1.45
1.75
2.05
pF


Product Tags: Resonator , 3.2*2.5mm Saw Resonator
