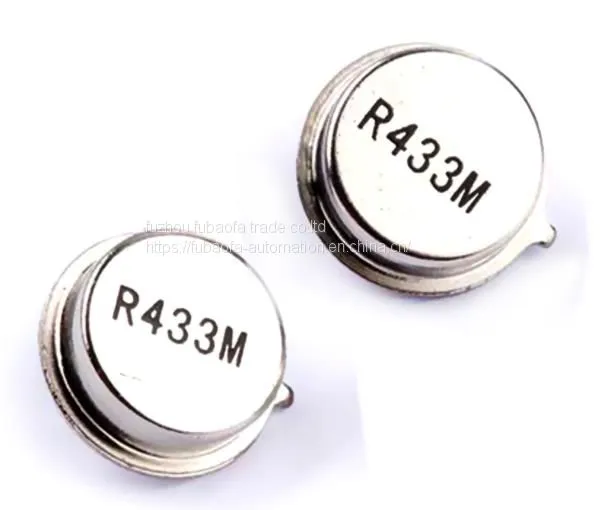

WTL Saw Resonator R433M 433.92MHz TO-39 Usd for Real-time Clocks
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
WTL
Place of Origin:
China
Model Number:
WTL2.05732ZX
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian
Delivery Detail:
7 days
Related Products
-
WTL Xtal 3225 12pF 30ppm 4Pin 30 MHz Crystal ResonatorNegotiableMOQ: 1 Piece -
WTL 49SMD R433 433.92MHz SMD Crystal Saw ResonatorNegotiableMOQ: 1 Piece
-
WTL 3*8mm Tuning Fork Crystal Resonator 12.5pf 20ppm 40khz 40.000khz Tuning Fork CrystalNegotiableMOQ: 1 Piece
-
WTL HC-49S Quartz Crystal DIP 4.194304MHz Quartz Crystal Resonator HC-49SNegotiableMOQ: 1 Piece
-
WTL HC-49S SMD 13.56MHz Crystal Resonator 30ppm 20pf 13.56mhz 13.560mhz +/-30ppm 13.56MHz SMD CrystalNegotiableMOQ: 1 Piece
Brand Name
WTL
Place of Origin
China
Model Number
WTL2.05732ZX
Item |
Unites |
Minimum |
Typical |
Maximum |
|
Center Frequency |
MHz |
433.845 |
433.920 |
433.995 |
|
Insertion Loss |
dB |
1.5 |
2.5 |
||
Quality Factor Unload Q |
12,800 |
||||
50Ω Loaded Q |
2,000 |
||||
Temperature Stability |
Turnover Temperature |
℃ |
20 |
35 |
50 |
Turnover Frequency |
KHz |
fo±1.3 |
|||
Freq.temp.Coefficient |
ppm/℃2 |
0.032 |
|||
Frequency Aging |
ppm/yr |
||||
DC. Insulation Resistance |
MΩ |
1.0 |
|||
|
RF Equivalent RLC Model |
Motional Resistance RM |
Ω |
18 |
26 |
|
Motional Inductance LM |
μH |
86 |
|||
Motional Capacitance CM |
pF |
1.5 |
|||
Pin 1 to Pin 2 Staic Capacitance Co |
pF |
1.7 |
2.0 |
2.3 |
|
Transducer Static Capacitance Cp |
pF |
1.9 |
|||
