Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Shanwei
Place of Origin:
China
Technique:
Welded
Contact Supplier Request Quote Chat Now
Anping Shanwei Metal Products Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang,Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Shanwei
Place of Origin China
Technique Welded
Application Screen
Wire Gauge Width of the wire: 0.75mm, 1mm, 1.5mm, 1.8mm, 2 mm, 2.5mm, 3mm. Height of the wire: 2 mm, 2.5mm, 3mm, 3.5mm, 4.5mm.
Material Low carbon galvanized wire, stainless steel 304, 316, 316L etc
Mesh Size 25, 50, 100, 200, 250, 300, 400 micron

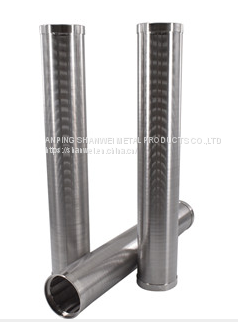

A Water treatment used wedge wire screen filter mill sizing Johnson screen filter beverage processing mesh screen is a metal filter product with high mechanical strength and a self-supporting structure.
It is made of two parts: a V-shaped profile wire and T-shaped (triangular) support rod, which is welded through the ring fusion welding process. The profile wire is the filtering surface, and the supporting rod plays a supporting role.
Compared with other metal filter cores: Firm structure, stable filtration accuracy, not blocked, high opening area.

V wire screen material:Low carbon galvanized wire, stainless steel 304, 316, 316L,

Minimum diameter Positive volume(the support bar is inside): 16mm

Common profile wire and support wire:#63, #69 | #93.

Filtering accuracy (slot size)common: 25, 50, 100, 200, 250, 300, 400 micron

Vee Wire dimensions
Width of the wire: 0.75mm, 1mm, 1.5mm, 1.8mm, 2 mm, 2.5mm, 3mm.
Height of the wire: 2 mm, 2.5mm, 3mm, 3.5mm, 4.5mm.
The specification of the wire can be customized according to the customer's requirements.

Types:FITO & FOTI

Water treatment used wedge wire screen filter mill sizing Johnson screen filter beverage processing mesh screen  Specification

NAME WIDTH
in / mm		 HEIGHT
in / mm		 SECTION AREA
in2 / mm2		 ANGLE
20 0.020 / 0.508 0.040 / 1.016 0.005 / 0.323 11
30 0.030 / 0.762 0.050 / 1.270 0.001 / 0.645 13
47 0.047 / 1.194 0.088 / 2.235 0.003 / 1.935 10
63 0.060 / 1.524 0.100 / 2.540 0.004 / 2.581 13
69 0.071 / 1.803 0.177 / 4.496 0.010 / 6.452 7
93 0.089 / 2.261 0.138 / 3.505 0.009 / 6.806 13
118 0.116 / 2.946 0.185 / 4.699 0.015 / 9.677 13
130 0.130 / 3.302 0.250 / 6.350 0.023 / 14.839 8
158 0.158 / 4.013 0.239 / 6.070 0.028 / 17.94 8
191 0.195 / 4.953 0.363 / 9.220 0.055 / 35.484 5
NAME WIDTH
in		 HEIGHT
in		 SECTION AREA
in		 SECTION MODULUS
29 .029 .102 .003 .037
63 .060 .100 .004 .050
93 .089 .138 .009 .150
XJR .089 .189 .013 .298
60SR .060 .120 .006 .084
156 .151 .217 .022 .600

Water treatment used wedge wire screen filter mill sizing Johnson screen filter beverage processing mesh screen surface treatment
Generally, the finished product will be polished, so that the product will appear bright.
With China’s emphasis on environmental protection, this treatment process has been banned. We independently developed a new treatment process to physically treat the product surface, which not only has a smooth appearance but also greatly improves the service life of the product.
