Kraft Paper Pulp Making Used Johnson Pressure Screen Baskets Filter Slotted Wedge Wire Screen Pressure Baskets

Kraft paper pulp making used Johnson pressure screen baskets filter slotted wedge wire screen pressure baskets

Slot Type Fiber Pressure Screen Basket For Pulp And Paper Product Line – Paper Mill – Improve the quality of paper

Johnson screen is widely used in the pulp and paper industry. We provide customized service of pressure screen for global customers.

Material: Stainless steel 304, 316, 316L.

Max Diameter (basket): 1800mm.
Min slot size: 0.02mm

Wedge Wire Pressure Screen Basket Filter Advantage

1.Special v-wire structure, not easy to block, easy to clean.

2.Adopt circular fusion welding, all-welded structure, the welding position is firm and the service life is long.

3.Continuous slotting structure, high opening rate, low pressure, energy-saving, and cost reduction.

4.Self-supporting structure with high mechanical strength.

5.The use of high-quality raw materials and special surface treatment processes. Increase the abrasion and corrosion resistance of the product.

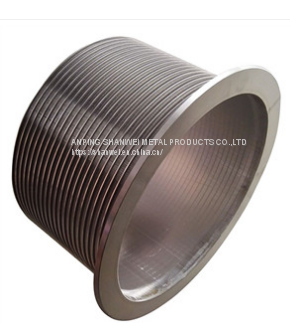

Pressure Screen Basket

Inflow wedge wire pressure drum screen basket is a screening tool in pulping equipment in the paper industry. It can be used not only for pulp screening before papermaking in the papermaking process but also for fine screening of waste pulp.
Therefore, there are two kinds of functions of pressure sieve screen in the papermaking process, namely pulp screening and waste pulp fine screening.

Kraft paper pulp making used Johnson pressure screen baskets filter slotted wedge wire screen pressure baskets Slot Size

In the internal flow pressure screen, the size of the gap of the screen drum is a very important technical parameter.
The size of the screen gap (slot) determines the opening area of the screen. Generally, the larger the screen area of the pressure screen, the larger the gap size.

Pulp screening is an essential process in pulping. The pressure screen is one of the important equipment to achieve pulp screening. Its basic components are composed of a pressure screen basket and a rotor.
The type of pressurized screen and rotor determines the screening effect, screening capacity, and the operation of the screening system.

At the same time, the screening speed will also increase, but the quality of screening will be significantly reduced, so a secondary screening is required.

(open area rate = slot size / width of profile wire + slot size)

Applications

Slotted pressure screen baskets: used for fine screening, the screen slot is adjustable.

1. Separation of unwanted debris or contaminants from required fibers in paper pulp，Also widely used for fine screening of wood pulp, straw pulp, and waste paper pulp

2. paper machine thin-stock recirculation system。
Remove debris (fiber bundles) and other large hard contaminants.

Fractionation, fiber retention, water purification, cleaning dewatered pulp screens, drying, and other liquid-solid separation processes.

Outflow Basket
High-Speed Pressure Screen Basket
Fine-Slotted Wedge Wire Screen Basket
Screen Basket for Kraft Paper Pulp Making
