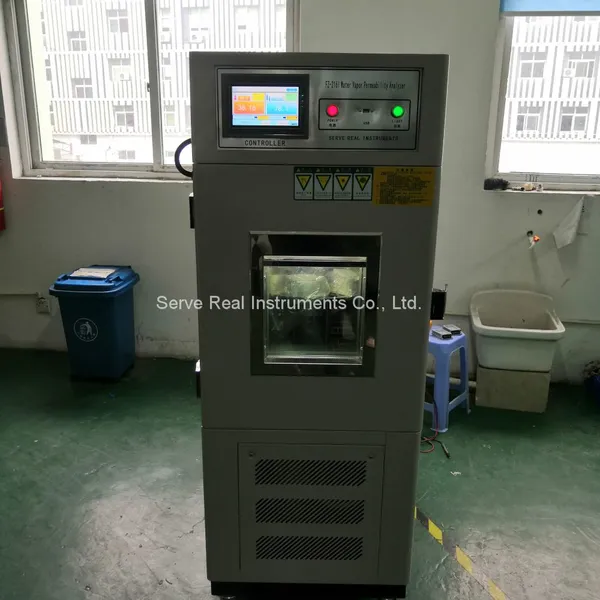

Help CenterWater Vapor Transmission Rate Tester WVTR ASTM E96 BS 7209
Related Products
-
Automatic Fabrics Air Permeability Tester ISO ASTM JISUS$ 1000 - 5000MOQ: 1 Set -
Protective Glove and Upper Cut Resistance Tester GB 24541-2009 EN388US$ 1000 - 2000MOQ: 1 Set
-
ASTM D2594 Stretch And Recovery TesterUS$ 2000 - 4000MOQ: 1 Set
-
Stretch And Recovery Tester ASTM D3107US$ 2000 - 4000MOQ: 1 Set
-
Automatic Stiffness Tester ZB WO4003 ASTM ISO BS ENUS$ 2000 - 4000MOQ: 1 Set
Standards
GB/T12704, JIS L1099, BS 7209, ASTM E96, A/B /BW.
Description
This tester is used to test the water vapor transmission of fabrics (including Moisturizing type coated fabric), cotton, space cotton.
Test Principle
Under the condition of that two sides of fabric sample has constant vapor pressure difference, to test the water vapor that penetrated the sample in a certain time, indicates in g/m2×d.
Technical Specifications
Work mode |
MCU control, LCD display, test condition monitoring |
Test chamber temperature |
20~45 degree C, resolution: 0.1 degree C |
Temperature accuracy |
±0.5 degree C |
Humidity control |
40%RH-95%RH, ±2%RH |
Humidification capacity |
300ml/h |
Drying oven control temperature |
RT-199 Degree C (optional) |
Test time |
1~999h59min |
Circulation air flow rate |
0.02-1.5m/s |
Vapor transmission area |
2827mm2, ASTM Standard 3848mm2 |
Moisture cup number |
6pcs or 9pcs |
Power supply |
AC 220V, 50HZ |
