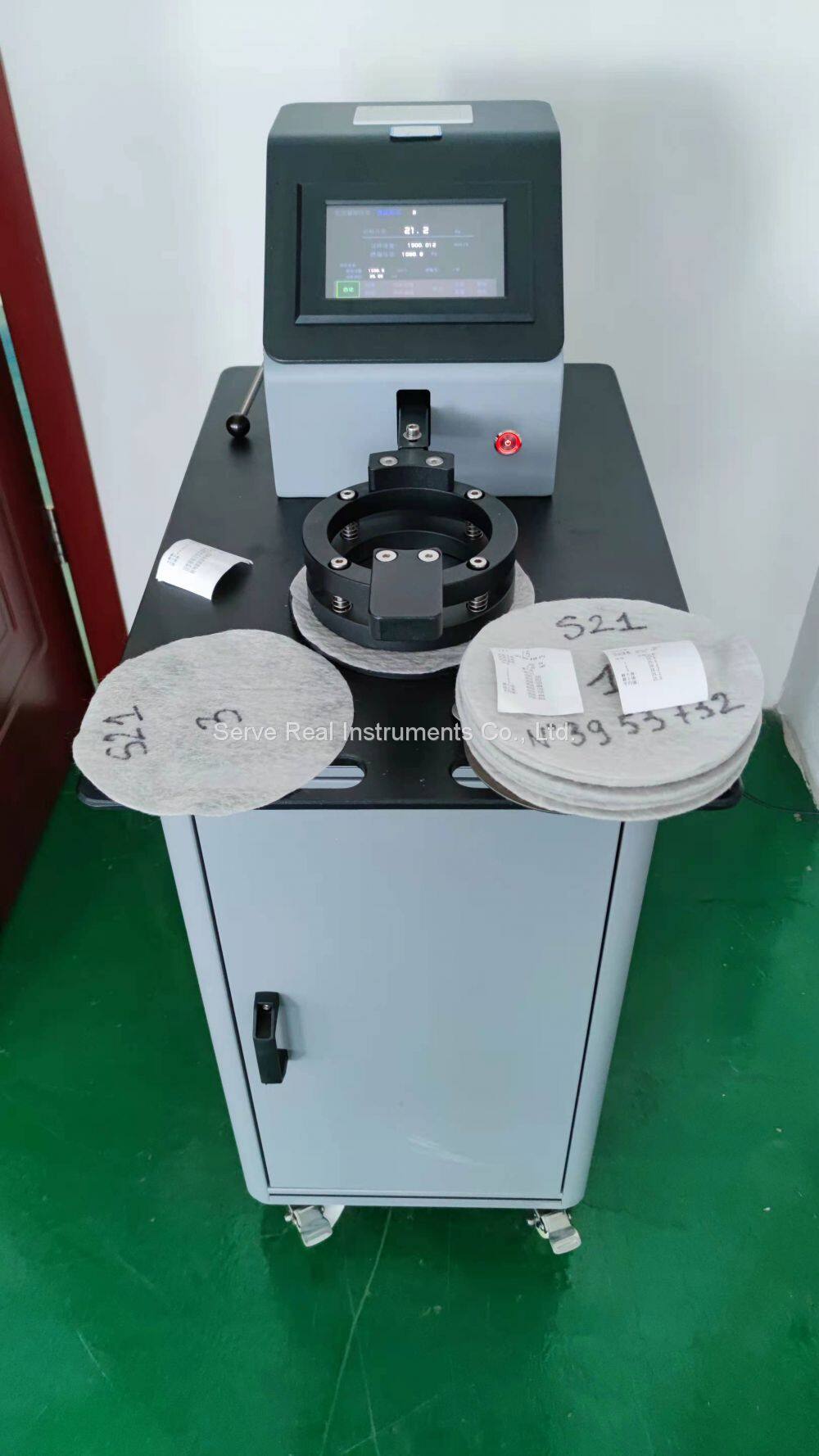

Automatic Fabrics Air Permeability Tester ISO ASTM JIS
- SHANGHAI, SHENZHEN,NINGBO, QINGDAO
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 2020 days
You May Like
-
Super fine cable wire drawing machine 0.012mm--0.025mm outlet size
-
Automatic tube sheet welding machine Laser identification and positioning
-
Automatic tube / tube sheet expanding flatting integration machine Industrial robot
-
Ultra fine copper aluminum wire drawing machine 0.016mm--0.030mm outlet size
-
Ultra fine copper aluminum wire drawing machine 0.022mm--0.04mm outlet size
-
Fine wire drawing machine with continuous annealing
Product Details
| Brand Name | SRI | Place of Origin | China | |
| Model Number | FZ-461E/H |
Product Description
Model | FZ-461E/H(Built-in nozzle, automatic switching of nozzle) |
Standards | GB/T5453 GB/T13764 ISO9237 ISO7231 ISO5636 BS5636 ASTM D737, DIN 53887 JIS L1096 BS5636 |
It's used for rapid determination of air permeability of various textiles, coated fabrics, industrial filter paper, filter materials, plastics and other related materials.
Features
High-precision pressure sensor with higher accuracy.
Built-in multiple measurement modes such as constant pressure difference measuring flow, constant flow measuring pressure difference, and constant pressure difference flow measuring time.
Automatic detection and conversion of the air permeability and air permeability of various samples in the full range without manual conversion.
Different national standard parameters and units can be set arbitrarily, and the test results can be printed out directly without conversion.
Measurement units mm/s, cfm, cm3/cm2/s, I/m2/s, I/dm2/min, m3/m2/min
Intelligent and smart touch screen interface in English, dynamic test full display.
RS232 port for PC connection, specialized English test software optional
SpecificationsControl & Display | microcomputer control, 7.8-inch touch color screen operation display, Chinese and English interface can be switched |
Pressure range | 0～4000Pa self-set pressure drop |
Measurable air permeability | 0.1～12000mm/s |
Measurement error | ≤±2% |
Measurable fabric thickness | ≤15mm |
Suction volume adjustment | data feedback dynamic adjustment |
Data calculation | automatic calculation of the full range, automatic results, no need for manual conversion |
Measurement mode | constant pressure difference measurement flow (standard configuration), constant flow measurement pressure difference, constant pressure difference flow measurement time (optional) |
Sample area fixed value | Circle 5cm2; 20cm2; 50cm2; 100cm2; optional |
Sample diameter fixed value | circle Ф50mm (≈19.6cm2) Ф70mm (≈38.5cm2) |
Measurement units | mm/s, cfm, cm3/cm2/s, I/m2/s, I/dm2/min, m3/m2/min, etc. Built-in 11 measurement units, which can be switched at will |
Nozzles | 11 in total, manual replacement |
Data output | RS232 interface for PC connection, built-in micro thermal printer, which can print test results in real time |
Data statistics | maximum, minimum, average and other functions |
Power supply | AC 220V±10V 50Hz |
Weight | 85Kg |
Appearance | 600×700×1100mm (L×W×H) |
Packaging
Gross weight | 140kg |
Packaging size | 84*54*130cm |
Pattern | Poly wooden case |
Qty | 1 case |
