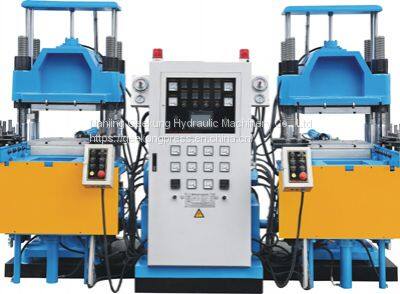

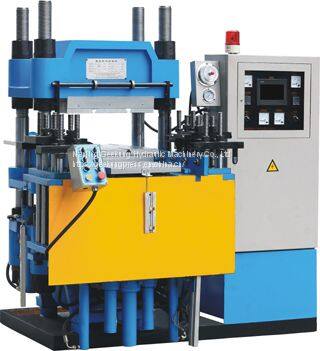

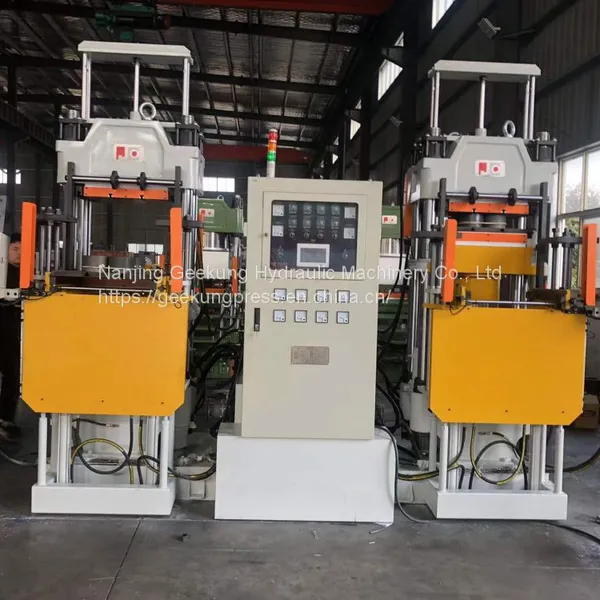

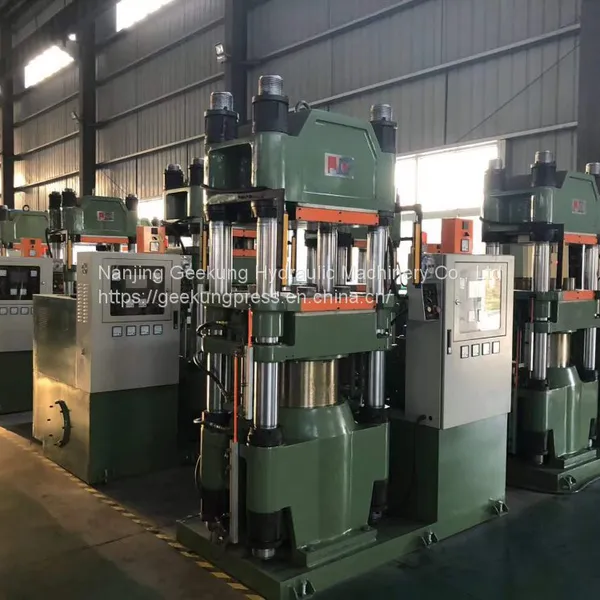

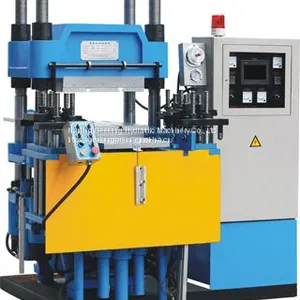

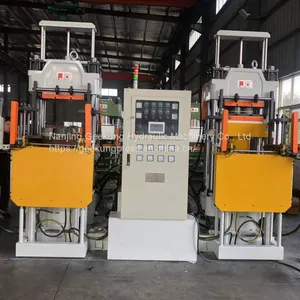

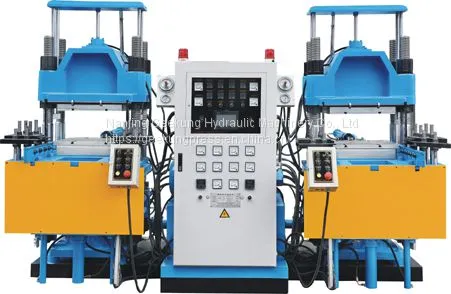

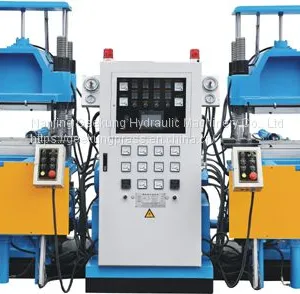

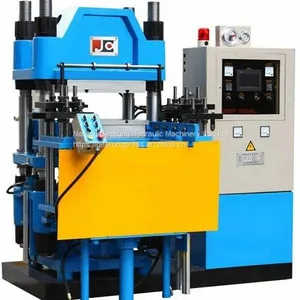

Rubber&Silicone Platen Press Vulcanizing Machine

Name: Rubber&Silicone Platen Press Vulcanizing Machine
Brand: Geekung
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port Nanjing,Shanghai
Payment Terms:T/T L/C
Delivery Detail:60 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Geekung	Place of Origin:	China	Model Number:	XLB-200T
Certification:	CE,ISO	After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	1 year
Weight:	10000 Kg	Condition:	New	Power(W):	7.5KW

Product Description

Rubber&Silicone Platen Press Vulcanizing Machine is suitable for the production of making packing O-rings,keyboards,rubber medical products,etc.

Work flow:

Initial state→Put material in mold→Start program→Ejector cylinder reset→Mold move in→Fast mold closing→Slow lock,pressing→Exhaust→Curing→Mold open→Mold move out→Ejector cylinde works to separate products from mold →Take out the finished product

Technical specification:

Model	JC-XLB 100T	JC-XLB 200T	JC-XLB 300T	JC-XLB 350T	JC-XLB 400T	JC-XLB 500T
Tonnage	100T	200T	300T	350T	400T	500T
Max.system pressure	21 Mpa	21 Mpa	21 Mpa	21 Mpa	21 Mpa	21 Mpa
Clamping stroke(mm)	280	300	300	300	300	300
Rapid clamping	≥60mm/s	≥60mm/s	≥50mm/s	≥50mm/s	≥50mm/s	≥50mm/s
Platen size(mm)	450x450 500x500	510x540 600x550	700x650	700x700	900x800	700x700 800x800 950x800
Max. daylight	350 mm	350mm	350mm	350mm	350mm	350mm
Max.temperature(℃)	250	250	250	250	250	250
Motor power(KW）	5.5	7.5	11	11	13	13
Heating power(KW)	9.6	18.6	20.6	20.6	27.8	27.8
Size (LxWxH:cm)	175x190x170	210x230x210	230x280x230	230x280x250	270x410x280	270x410x310
Oil tank capacity(L)	270	320	400	400	500	600

Notes: the form only list out the normal standard model, more special models can be customized to order.

Rubber&Silicone Platen Press Vulcanizing Machine is one of our main products,"Geekung" is now the famous brand in China for rubber compression molding press machine,

made with premium components and strict QC management,featuring high quality&reliable operation.

Our Rubber&Silicone Platen Press Vulcanizing Machines are being sold very popular across China,we are now also expanding our overseas market.
