Kapillare Mat/Micro capillary Mats for Radiant Heating Cooling
About Capillary Mats:
Capillary tube mat can be used for heating/cooling in the building to replace the conventional radiator heating and air conditioning systems. With the advantages of large exchange surface, uniform and constant heating, It also can be used in agricultural greenhouse. In addition, it can be embedded in the soil or installed in the tunnel as the energy collection device.
To heat or cool rooms, hot or cold water runs through the sinolanc capillary tube mats system to exchange heat with the space air by radiation. They ensure a quick dissipation of the cooling load or a quick supply of the heat requirement. Due to the large exchange surfaces, large energy quantities can be transmitted with low temperature differences between the active room surface and the room air.

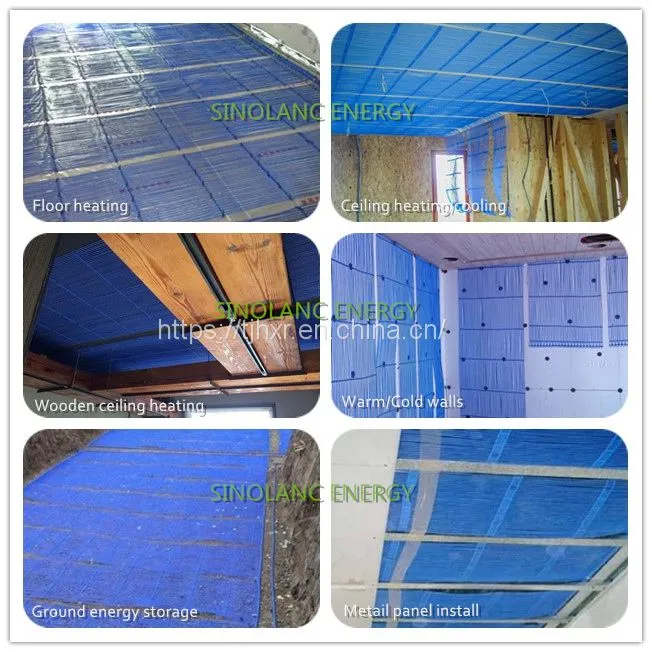

Capillary Tube Mats Application Range:
· Ceiling with plaster – heating/cooling;
· Metal ceiling panels – heating/cooling;
· Ceilings with plasterboard finish – heating/cooling;
· Incorporation of Sinolanc capillary mats in concrete and reinforced concrete ceiling panels – heating/cooling;
· Walls with plaster or plasterboard finish –heating/cooling;
· Floor heating;
· Groundwater geothermal collectors;
· Non-standard use (use in greenhouses, swimming pools, various surface heating/cooling)
Capillary Tube Mats Technical Specifications:
| Material | Polypropylene (PP-R) & Blue |
| Collector pipe size | 20*2.0 mm |
| Capillary tube size | 4.3*0.8 mm |
| Spacing of Capillary tubes | 10mm, 20mm, 40mm, Z20mm, Z40mm |
| Length | 600mm - 12,000 mm |
| Width | 1000mm |
| Connection method | Connect mats to another and to the water circuit by means of thermal welding. |
| Test pressure in production | 20 bar |
| Recommended operating pressure | 4 bar |
| Max allow heating water temp. | +60 ℃ |
| Optimal input temp. For heating | +28~32 ℃ |
| Optimal input temp. For cooling | +16~18 ℃ |
About Sinolanc:
The verified first and largest manufacturer of capillary mats in China for more than sixteen years.
We use only high quality polyproplyne granules and modern German automatic intelligent manufacuring equipment.
We have built distribution partners and work with experieced installers European countries such as Poland, Germany, Spain, Romania, Slovakia. Russia, Egypt, Iraq, Belgium, Saudi Arabia, Czech Republic, India, Thailand, etc
Please feel free to contact us.
We provide the reasonable cost, fast delivery and professional technical support.
Email: energy@snlanc.com Mobile: + 86 18920696269
