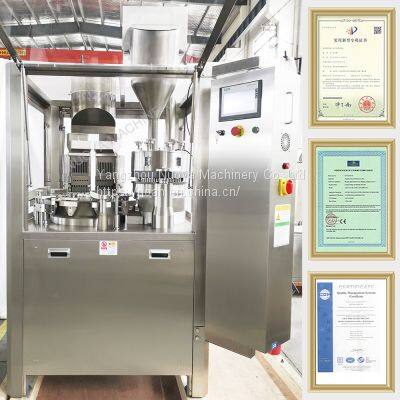

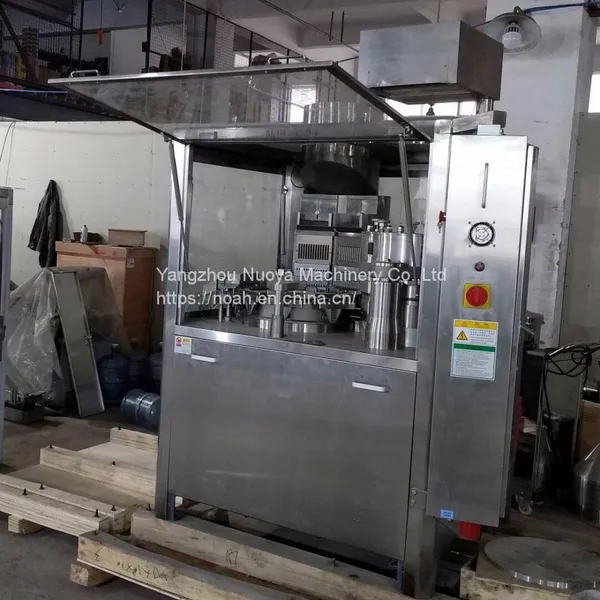

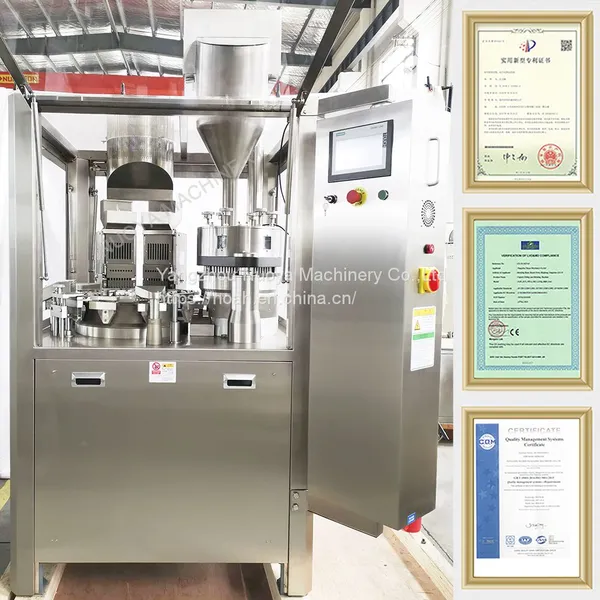

NJP-3800 Mass Production Automatic Pharmaceutical Protein Powder Vertical Capsule Filling Machine

Name: NJP-3800 Mass Production Automatic Pharmaceutical Protein Powder Vertical Capsule Filling Machine
Brand: NOAH
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port china shenzhen shanghai
Delivery Detail:25 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	NOAH	Place of Origin:	China	Model Number:	NJP3800
Certification:	CE	After-sales Service Provided:	Overseas service center available	Warranty:	1years
Weight:	2300	Dimension(LWH):	145013002100	Condition:	New
Control Mode:	Full Automatic	Capacity:	228000pcs/h

Product Description

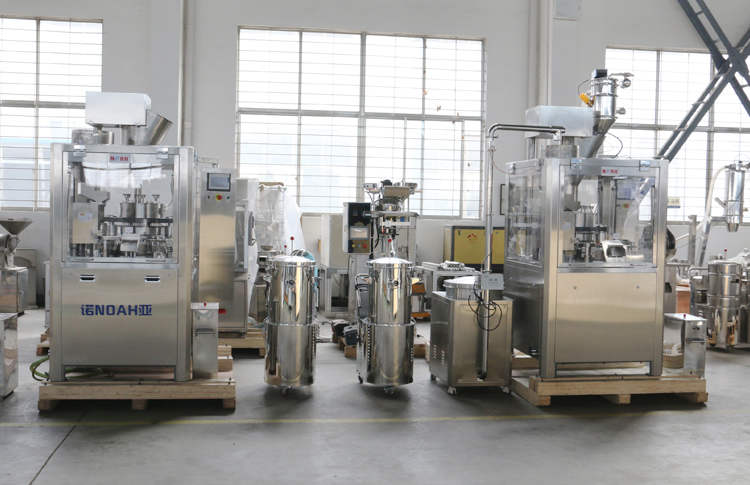

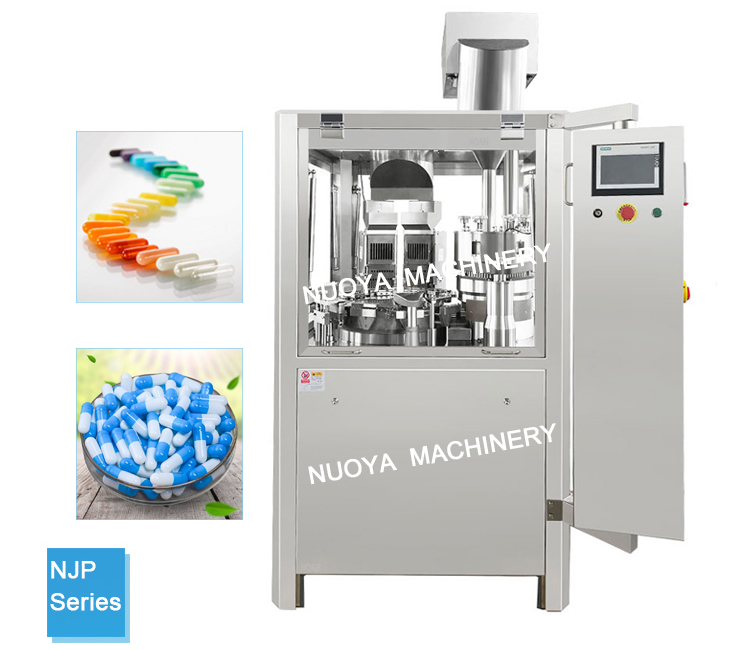

NJP-3800 Vertical Capsule Filling Machine For Protein Powder

Products Description

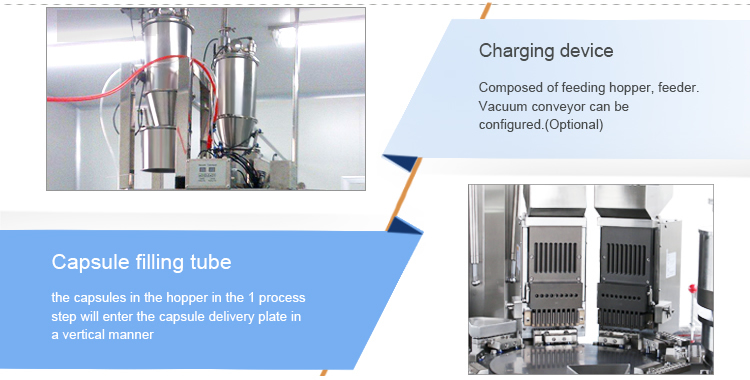

Details Images

Model	NJP-2000	NJP-2500	NJP-3800
Max.Output (pcs/h)	120000	150000	228000
Capsule Size	Suitable for filling capsule size 00#-5# Supro/safefy capsule size:A-E (need to exchange the spare parts/moulds accordingly)
Dosage Type	Powder/Pellet/Tablet
Power Supply	3.7KW	3.74KW	6.37KW
Noise Index	Less than 75dBA
Machine Size(mm)	120010002200	125011502000	145013002100
Net Weight(kg)	1300	1350	2300

Applications:
This machine is widely used in Pharmaceutical, medicine, and chemicals (powder, Pellet, granule, pill),also can be used to fill vitamin, foodstuff and animal drug, etc

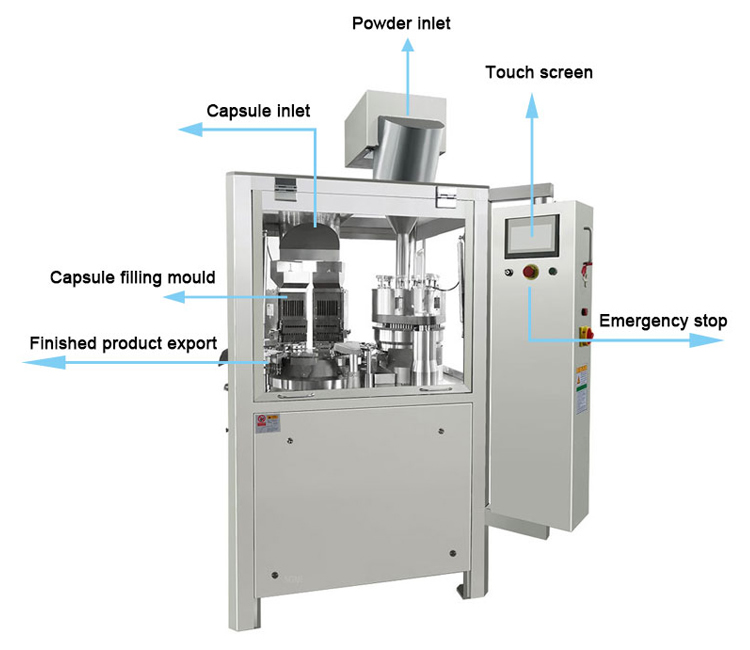

    1.Touching-Screen, PLC program control panel with LCD.

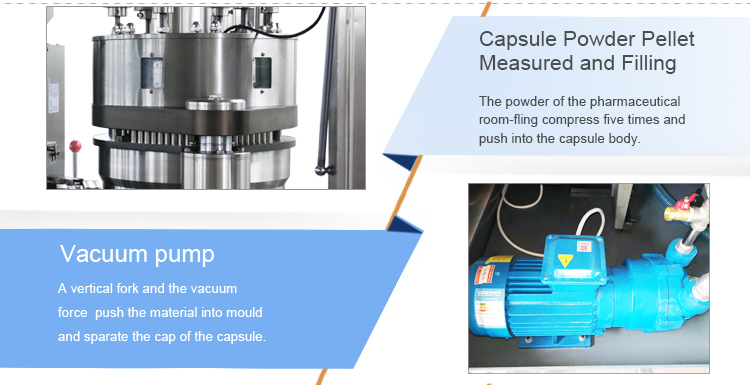

    2. Capsule vacuum positioned mechanism to make the capsule qualified over 99%.

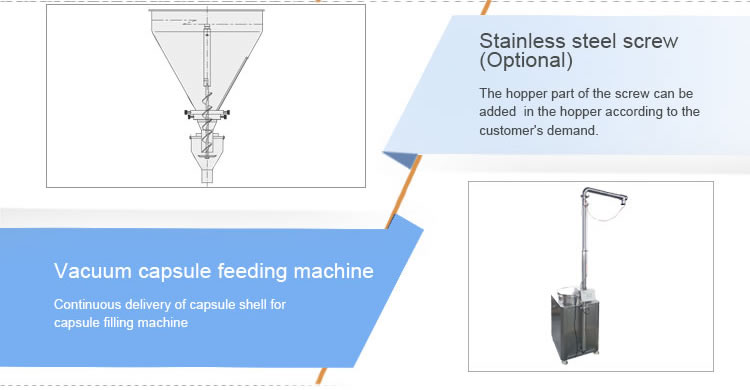

    3. Removable powder hopper for cleaning and easy auger adjustment easy to change fills weights.
    4. Easy speed selection and closed capsule length adjustment.

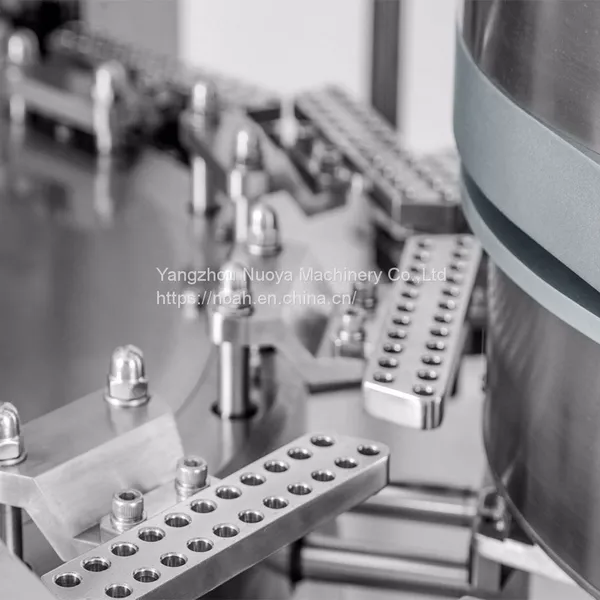

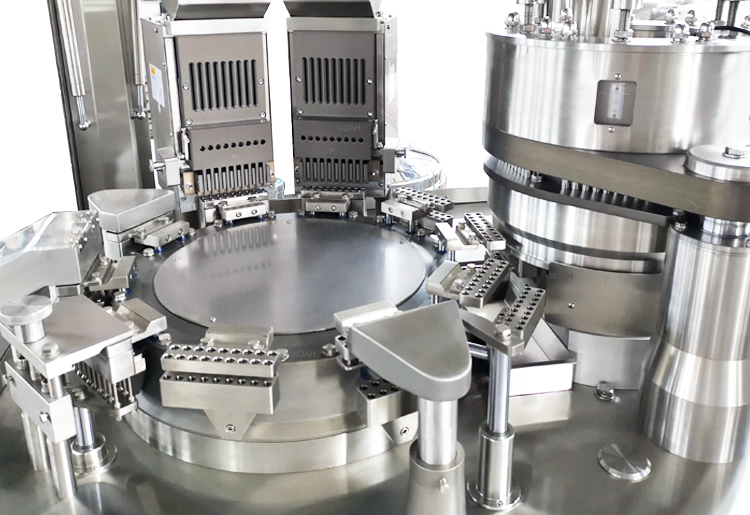

    5. Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.

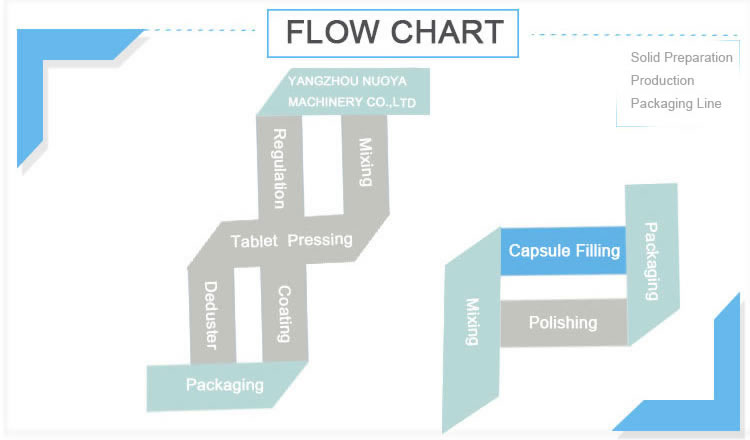

    6. Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.
    7. Large cam mechanism keeps the rotating table of mould together with the whole equipment running with balance,and completely guarantees the machine operating with highest precision and accuracy.

Product packaging

Company Profile

Contact Us

Yangzhou Nuoya Machinery Co.,Ltd
