NJP-260 Pharmaceutical Empty Gelatin Liquid Capsule Filling Machine

NJP-260 Pharmaceutical Empty Gelatin Liquid Capsule Filling Machine photo-1

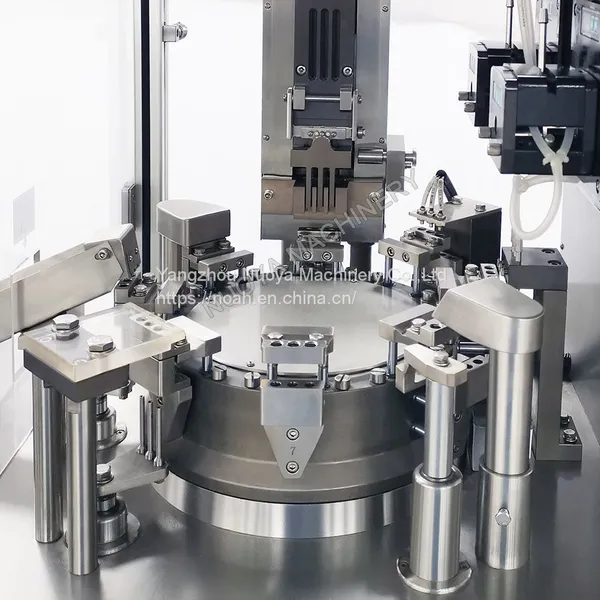

NJP-260 Pharmaceutical Empty Gelatin Liquid Capsule Filling Machine photo-2

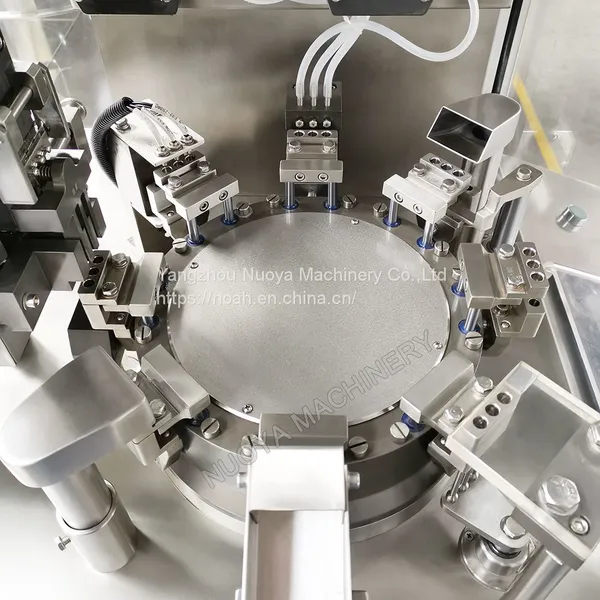

NJP-260 Pharmaceutical Empty Gelatin Liquid Capsule Filling Machine photo-3

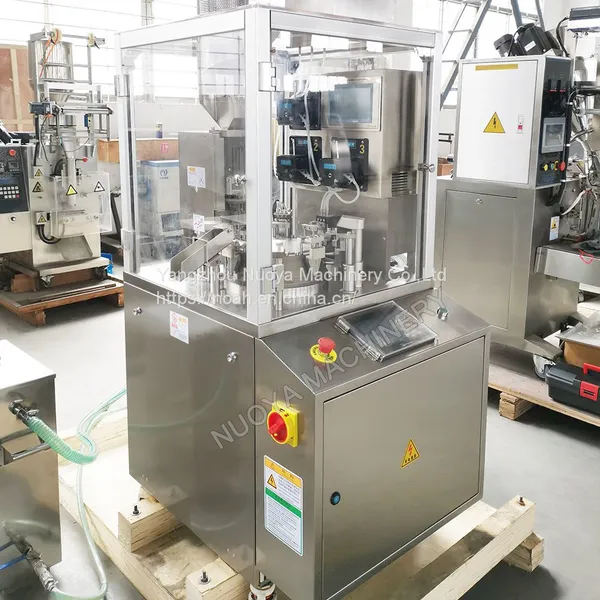

NJP-260 Pharmaceutical Empty Gelatin Liquid Capsule Filling Machine photo-4

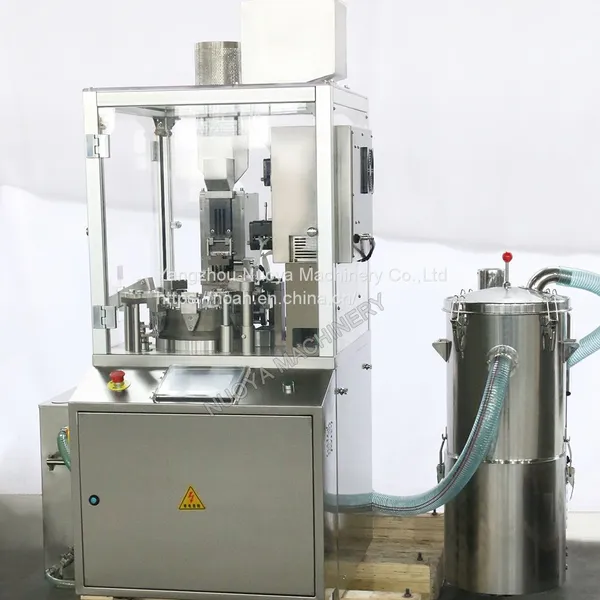

NJP-260 Pharmaceutical Empty Gelatin Liquid Capsule Filling Machine photo-5
US$ 18000.0 - 30000.0 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
NOAH
Place of Origin:
China
Model Number:
NJP260
Payment & Shipping
Payment Methods:
Port of Shipment:
jiangsu
Delivery Detail:
25 days
Brand Name NOAH
Place of Origin China
Model Number NJP260
Certification CE
After-sales Service Provided Overseas service center available
Warranty Lifetime service
Weight 900kg
Dimension(L*W*H) 1020×860×1970mm
Condition New
Control Mode Full Automatic
Capacity 260pcs/minute
NJP-260 pharmaceutical empty gelatin liquid capsule filling machine
Products Description
Applications:Pharmaceutical, medicine, and chemicals (powder, Pellet, granule, pill,liquid),also can be used to fill vitamin, foodstuff and animal drug, etc. 1. Touching-Screen, PLC program control panel with LCD. 2. Capsule vacuum positioned mechanism to make the capsule qualified over 99%. 3. Easy speed selection and closed capsule length adjustment. 4. Electrical Appliance control system approved to CE, and international standard. 5. Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly. 6. Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants. 7. Large cam mechanism keeps the rotating table of mould together with the whole equipment running with balance, and completely guarantees the machine operating with highest precision and accuracy.
Items
NJP-260 Closed Full-Automatic Capsule Filling Machine
Weight
900kg
Overall size
1020×860×1970mm
Motor power
5.75kw
Power
AC 220V/380V; 50Hz/60Hz
Three-phase four-wire AC 380V;50Hz
Max Capacity
260pcs/minute
Capsule size
00#~5#
Supro/safefy capsule size:A~E
Load difference
≥99.5%
Noise
≤75dBA
Filling amount difference
Liquid: above 300mg ≤ ±3%
Compressed air
0.06m3/min 0.3Mpa
Water source requirement
The water recycle vacuum pump is equipped with a water tank for recycle using, and can also be connected to an external water
source.
Vacuum degree
-0.02~-0.06 MPa
Water flow
250L/h
Inlet pipe inner diameter
20mm
Drain pipe inner diameter
27mm
Working temperature
21℃±3℃
Working plant height requirement
Manual materials load ≥2.6m,
Automatic materials vacuum convey≥2.8m
Working environment relative humidity
40~55%
Exhaust volume
300m3/h
Control System
Variable frequency stepless speed regulation, PLC control
