Fridge Seals Welder PVC Refrigerator Door Gasket Welding Machine For Freezer
Introduction:
This fridge door gasket welding machine is specially used in welding refrigerator door gasket, rubber gasket, which has the features of compact structure, easy operation and accurate temperature controlling. The heating tube is made of imported materials. One leg period of this machine is about 14 seconds and the leg stretching resistance is higher than the technical standard in the same industry at home and abroad.
Feature:
(1) This machine adopts advanced Omron PLC control system, famous-brand cylinder, and imported electrical parts to keep machine high-automatic, high-efficient, easy operation, long-using time.
(2) This machine can weld 2 gasket corners every time, after welding, it cleans (trims) rest material automatically to keep even, firm and beautiful surface of welding corner.
(3) The welding process is: heating ~ vacuum adsorption ~ welding ~ inner cooling ~ outer cooling ~ automatic outlet.
(4) the welding mould take with vacuum system, and inner cooling system, which can make the gaket corner smooth surfact and the inncer cooling systme can avoid gasket zones stick together.
(5) Photoelectrical protection system is used to protect hands being clamped in operation.
(6) Welding period is 11~14 second/ two corners, the output can reach 600~650 sets per 10 hours.
(7) This machine pass CE certification and export to different countries.
Main electrical elements:
| PLC industry automatic control system | OMRON |
| Pneumatic elements | XINYI, Made In China |
| Photoelectrical protecting switch | OMRON |
| Electrical control elements | CHINT(China) or SIEMENS |
| Induced draft fan (1 set ) | Made in China |
| Vacuum valve (1 piece) | Made in China |
| Automatic heating system | Made in China |
Feature:
(1)This machine adopts advanced PLC automatic control system; open system adopts OMRON pneumatic element that guarantees stability of process and enhances quality.
(2) It breaches many processes of old welder such as manual work for pruning rest material and welding lump and so forth.
(3) This welder is double hole full automatic welding equipment; after welding, it cleans rest material automatically; therefore, it guarantee even, firm and beauty of welding angle; the production efficiency is twice of the old welder.
(4) Mould and frock has up and down layer with adopting precise beeline rail transmission breath that guarantees precision of equipment; the welding way is: automatic heating (firing type) ~ vacuum adsorption ~ welding ~ inner cooling ~ outer cooling ~ automatic outlet.
(5) Security protection system: in order to protect pressing, it equips photoelectricity protector before mould with adopting two-hand open button; it can open electric case after power failure.
(6) Leg period of this welding machine is 11~14 second/double angle; the output can reach 500-600 sets; the stress of welding angle is higher than criterion in the same industry.

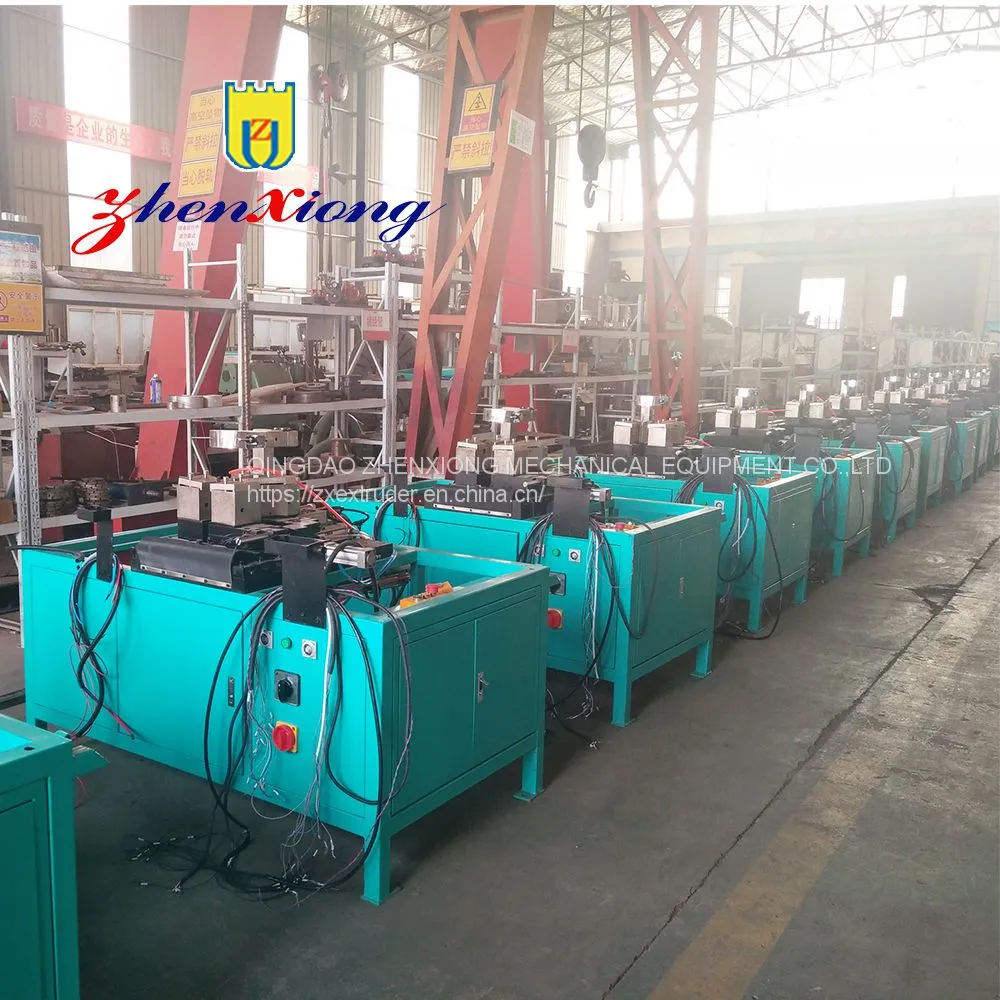

Pictures:
