Factory Direct Rerigerator Magnetic Stripe Production Line

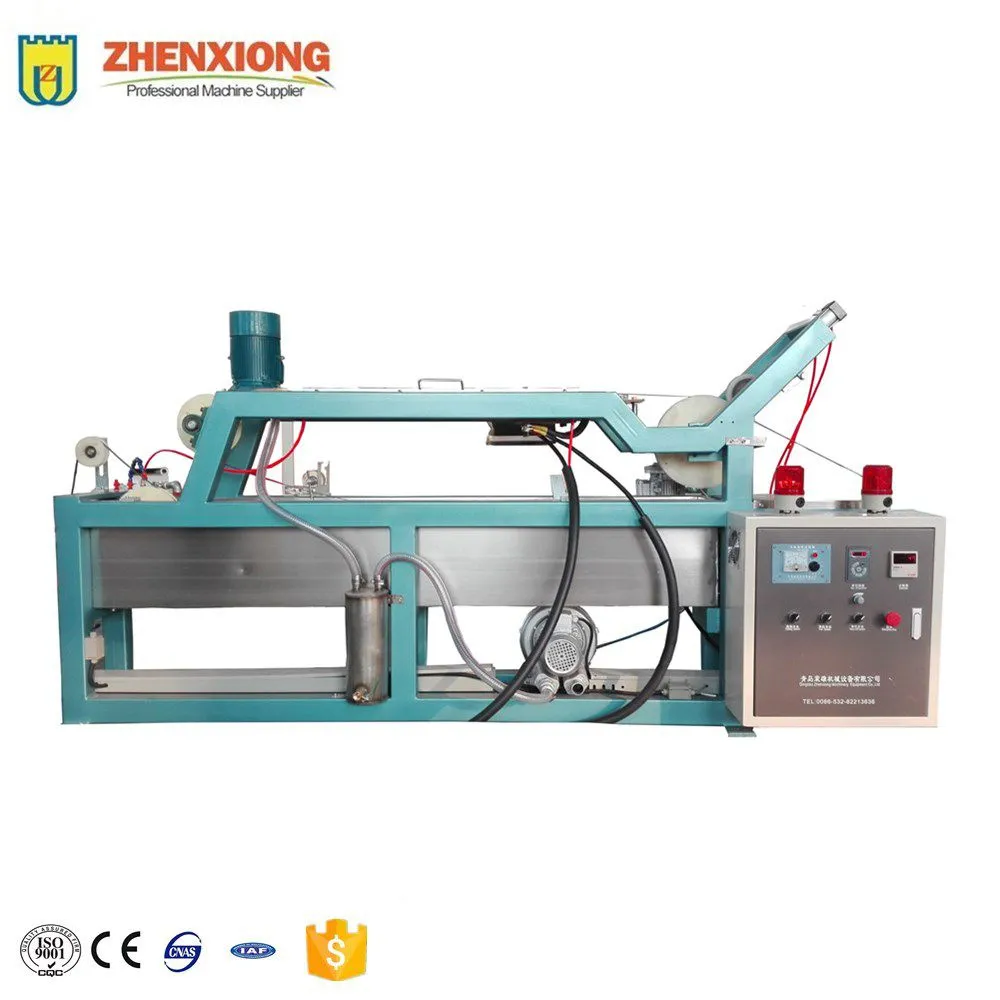

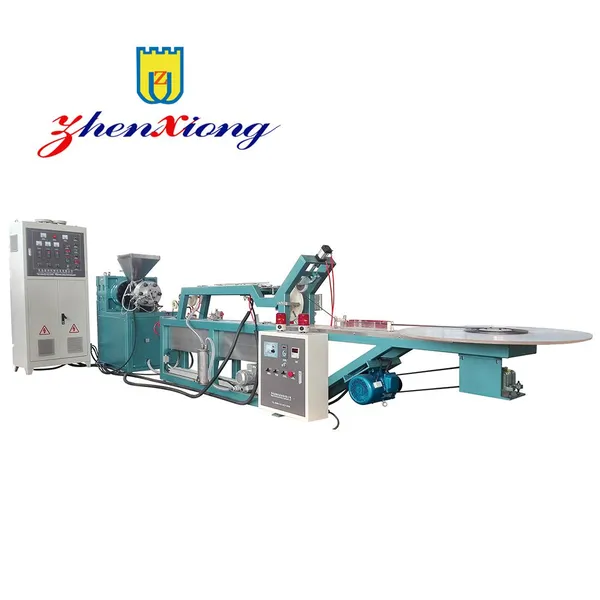

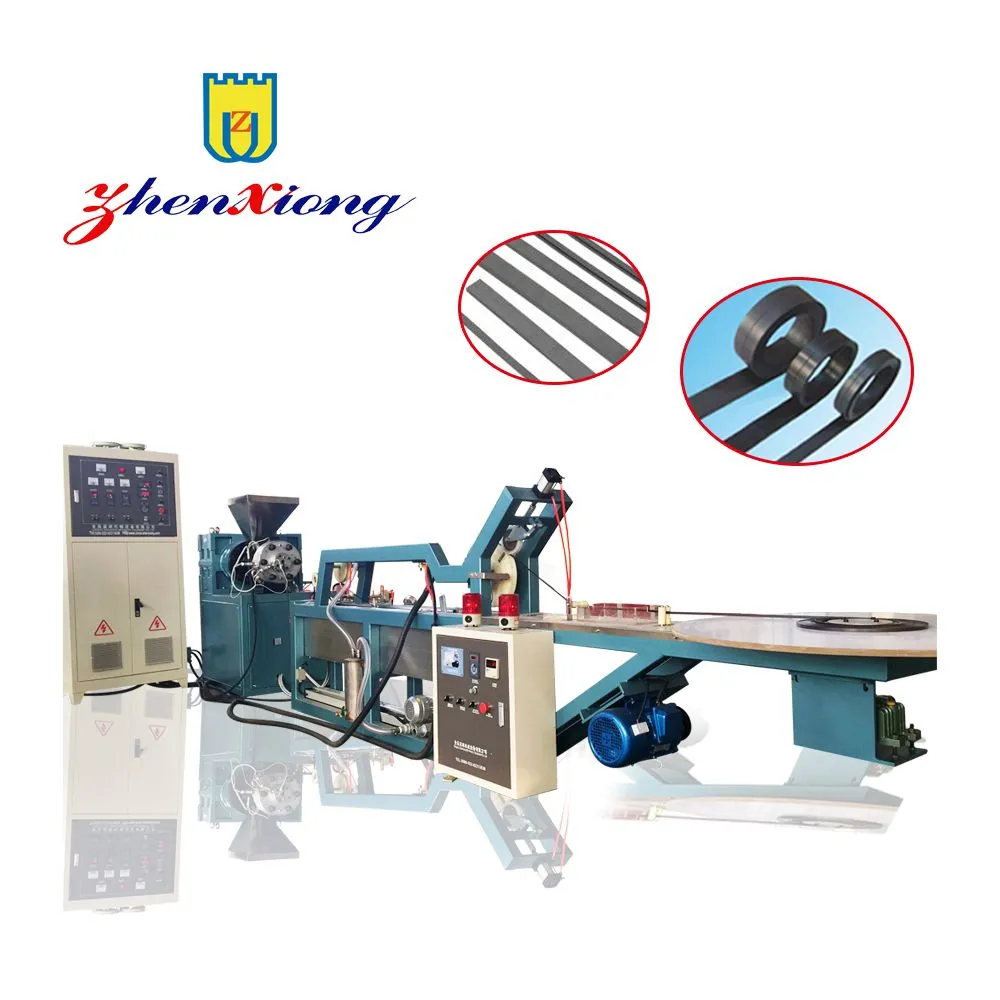

Factory Direct Rerigerator Magnetic Stripe Production Line photo-1

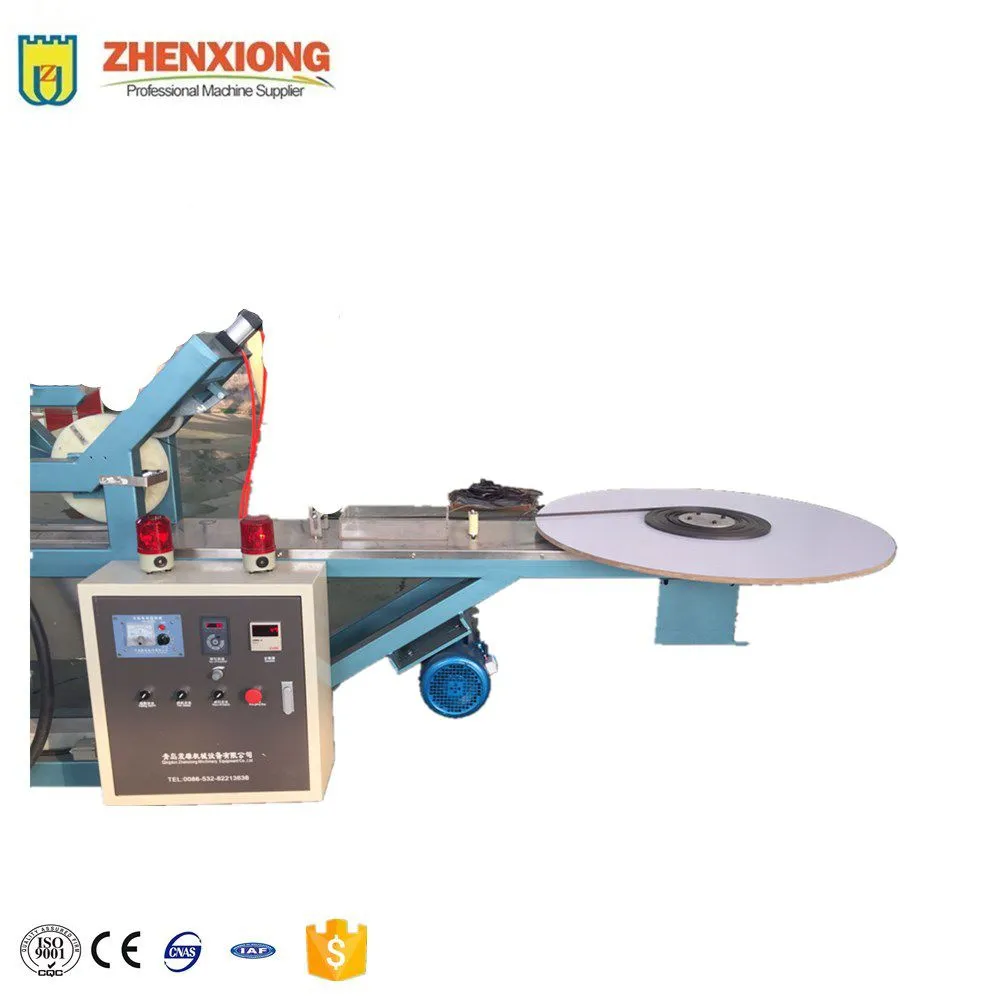

Factory Direct Rerigerator Magnetic Stripe Production Line photo-2

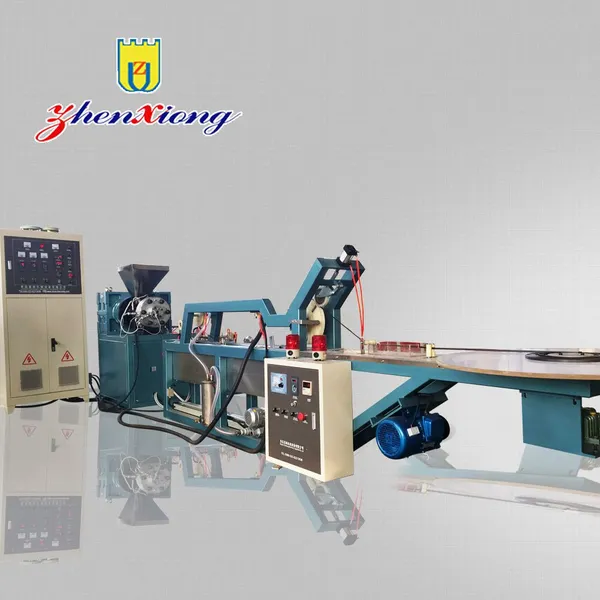

Factory Direct Rerigerator Magnetic Stripe Production Line photo-3
Factory Direct Rerigerator Magnetic Stripe Production Line photo-4

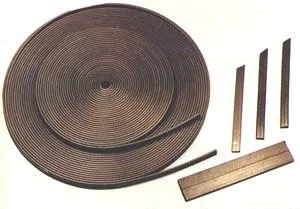

Factory Direct Rerigerator Magnetic Stripe Production Line photo-5
US$ 13800 - 15800 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Profile
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
30 days
Place of Origin China
After-sales Service Provided Engineers available to service machinery overseas
Application Profile
Condition New
Plastic Processed PVC
Screw Design Single-screw

                              Rerigerator Magnetic Stripe production line for door gasket

Professional refrigerator magnetic stripe production line

Magnetic Stripe production line for rerigerator door gasket

Combining foreign advanced technology, We developed magnetic strip extruder for producing strip used as refrigerator door-seal. The machine is newly designed, easy to maintain, it has suitable structure, work reliable. The production is automatic, productivity, and high quality. By this machine, 10,000m2 magnetic strip (section 9X2mm2) can be produced per day. The production process is entirely automatic, extruding, magnetizing and rolling can be done at the same time. The machine is suitable for new built, expanding and reforming factories.


Magnetic Stripe production line for rerigerator door gasket

Technical parameters
Screw diameter  ø60 mm
 L/D 9:1
Compressing ratio 1.7
Screw rotation speed : 0-24 r/min (adjusted according material)
Driver motor:  15KW
Haul-off power  0.55KW
Winder power 0.37 KW×2
Heating power 2.9KW
Churning power hopper 0.37KW
Volume of cooling tank 1.8 m3/h
Commonly extrusion speed 6-10m/min
Barrel and screw material Alloy
Temperature range 0-120ºC
Barrel temperature in working 60-100ºC (not pre-heating temperature)
Total installation capability about 25KW
Cooling tank materia stainless steel
Water pump length 3M
Magnetizing capacitance 6000 micro farad
Magnetizing voltage 6000 micro farad
Magnetizing power 500V
Magnetic field 600-700GS

Magnetic Stripe production line for rerigerator door gasket

IF you are intrested in this kind of plastic machinry or even other kinds of extruder units which we can supply,pls feel free to contact us,we'll be glad to  give you our best service.

1.Payment terms:T/T,Westem Union,PayPal
2.Payment Condition:30% deposit in advance. 70% balance before delivery.
3.Delivery time:depends on detailed machine
4.Packing:Wooden case with plate.
5.Shipment:By Sea.


After Sales Service

1. Full life cycle worry-free service.

At Zhenxiong, We care about the customers experience and service; we put great importance to collecting customers feedback. That is why we keep constant communication with our old customers by our service representatives.



2. Professional Service Team.

Zhenxiong is proud of her own 8 well-trained and experienced After-Sales Service Engineers, who are providing timely technical support for our customers around the world, day and night.



3. Quick response, Minimize the downtime.

24-hour on Call, Customers can get in-time service from Zhenxiong to fix any of their issues.



4. The fastest supply of high-quality parts to resume the production.

Our warehouse can quickly and accurately deliver necessary spare parts to our customers. Less downtime means more output.
