Product Details
| Place of Origin: | China | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

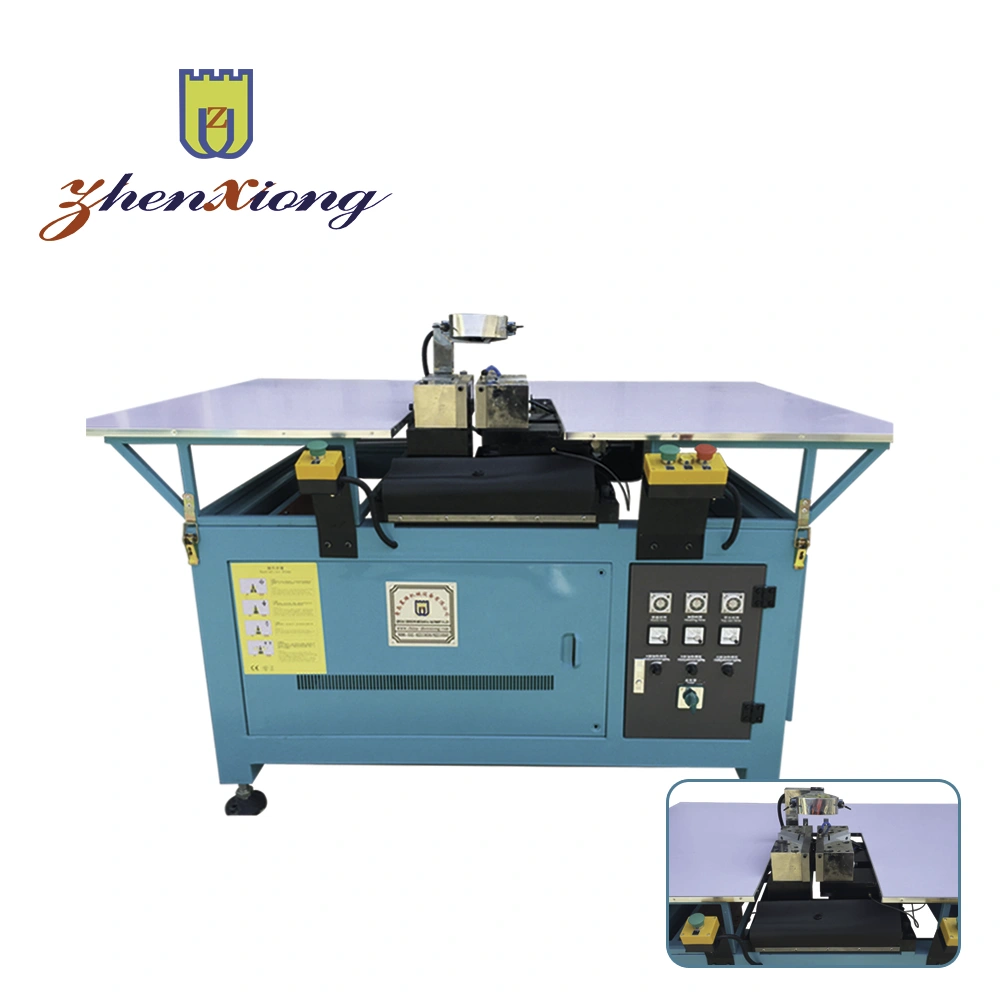

Soft Plastic PVC Automatic Refrigerator Door Gasket Welding Machine for freezer fridge door gasket welder Factory outlet
It is specially used in the welding of the refrigerator door gasket, which has the features of compact structure, easy operation and accurate temperature controlling.One leg period of this machine is about 14 seconds and the leg stretching resistance is higher than the technical standard in the same industry at home and abroad.
Main electrical elements:
Feature:
(1)This machine adopts advanced PLC automatic control system; open system adopts OMRON pneumatic element that guarantees stability of process and enhances quality.
(2) It breaches many processes of old welder such as manual work for pruning rest material and welding lump and so forth.
(3) This welder is double hole full automatic welding equipment; after welding, it cleans rest material automatically; therefore, it guarantee even, firm and beauty of welding angle; the production efficiency is twice of the old welder.
(4) Mould and frock has up and down layer with adopting precise beeline rail transmission breath that guarantees precision of equipment; the welding way is: automatic heating (firing type) ~ vacuum adsorption ~ welding ~ inner cooling ~ outer cooling ~ automatic outlet.
(5) Security protection system: in order to protect pressing, it equips photoelectricity protector before mould with adopting two-hand open button; it can open electric case after power failure.
(6) Leg period of this welding machine is 11~14 second/double angle; the output can reach 500-600 sets; the stress of welding angle is higher than criterion in the same industry.
(2) It breaches many processes of old welder such as manual work for pruning rest material and welding lump and so forth.
(3) This welder is double hole full automatic welding equipment; after welding, it cleans rest material automatically; therefore, it guarantee even, firm and beauty of welding angle; the production efficiency is twice of the old welder.
(4) Mould and frock has up and down layer with adopting precise beeline rail transmission breath that guarantees precision of equipment; the welding way is: automatic heating (firing type) ~ vacuum adsorption ~ welding ~ inner cooling ~ outer cooling ~ automatic outlet.
(5) Security protection system: in order to protect pressing, it equips photoelectricity protector before mould with adopting two-hand open button; it can open electric case after power failure.
(6) Leg period of this welding machine is 11~14 second/double angle; the output can reach 500-600 sets; the stress of welding angle is higher than criterion in the same industry.
Pictures:
