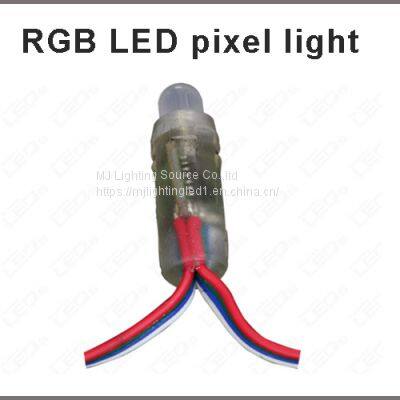

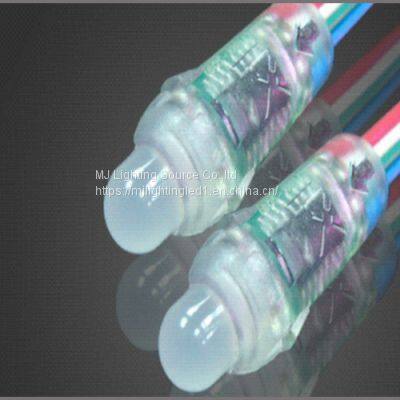

5V 12mm RGB Led Light Pixel Lamp 50pcs/String 0.3W DC5V IP67 Outdoor 3D Letter Signage Made In China

5V 12mm RGB Led Light Pixel Lamp 50pcs/String 0.3W DC5V IP67 Outdoor 3D Letter Signage Made In China

Specification

Pictures

Feature:

1.Produce with Taiwan chip. high lumen, good color purity, lower light dissipation and long lifespan.

2.Compared with traditional lights, LED light has the advantage of energy saving, environment friendly, long lifespan, Stable well, install conveniently, ect.

3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.

4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.

5.Every piece is connected with series method, If one is down, Just need to exchang the break one. Much different from the kind that need to exchanged the whole roll sting if there is only 1 pcs gone down.

6.flexiable enough for installation, high strength, High and low temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP68.

Driver select and installation:

1.Total load power of the driver should not be over than 80% of the driver rated power.

For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over

Than 200*80%=160W. If every pcs light is 0.1W, Then the quantity should not be over than

160/0.1=1600pcs.

2.If there is more than one driver, Pls make sure that there is no reture circuit.Otherwise the drivers

Will be burn out.

3.Connect ways: When connect the string with driver, pls keep the beging and the end contacted with the main wire . and main wire must be 2.5 mm2 .

Pls check the picture as below:

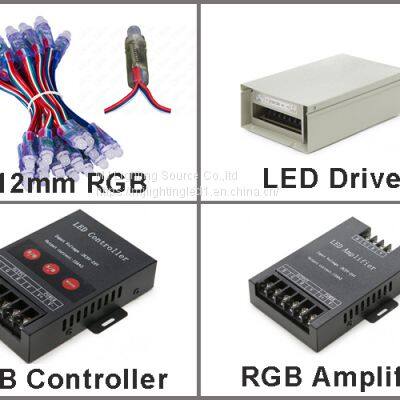

RGB led controller and Amplifier are needed for RGB LED pixel light.

Package

Application

Notice:

1.Pls confirm the dirver is DC5V output.

2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.

3.Pls make sure of the positive and negative of the string, usually the negative is white.

4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.

Common faults and troubleshooting:

1.the whole sting can’t be light up.

Resolve way:Inspect whether the string and driver main wire polar connected right or not.

2.One pcs light can’t be light up or not bright enough.

Resolve way:The light is break ,and exchange it with the good ones

3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.

Resolve way:Exchange the main wire to 2.5mm2 wire.
