12V LED Advertising Texsign Module SMD 5054 3-chips LED Module for Lettere Signage Yellow Color CE ROHS

12V LED Advertising Texsign Module SMD 5054 3-chips LED Module for Lettere Signage Yellow Color CE ROHS thumbnail-1
12V LED Advertising Texsign Module SMD 5054 3-chips LED Module for Lettere Signage Yellow Color CE ROHS thumbnail-2
12V LED Advertising Texsign Module SMD 5054 3-chips LED Module for Lettere Signage Yellow Color CE ROHS thumbnail-3
12V LED Advertising Texsign Module SMD 5054 3-chips LED Module for Lettere Signage Yellow Color CE ROHS thumbnail-4
12V LED Advertising Texsign Module SMD 5054 3-chips LED Module for Lettere Signage Yellow Color CE ROHS photo-1
12V LED Advertising Texsign Module SMD 5054 3-chips LED Module for Lettere Signage Yellow Color CE ROHS photo-2
12V LED Advertising Texsign Module SMD 5054 3-chips LED Module for Lettere Signage Yellow Color CE ROHS photo-3
12V LED Advertising Texsign Module SMD 5054 3-chips LED Module for Lettere Signage Yellow Color CE ROHS photo-4
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
MJ
Place of Origin:
China
Model Number:
MJ-5054-Youtdoor
Contact Supplier Request Quote Chat Now
MJ Lighting Source Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MJ
Place of Origin China
Model Number MJ-5054-Youtdoor
Certification CE, ROHS
Light Source LED
Emitting Color Yellow
IP Rating IP68
Lamp Luminous Efficiency(lm/w) 110
Lamp Luminous Flux(lm) 80-100lm
Lamp Power(W) 0.75
Input Voltage(V) 12V
Working Lifetime(Hour) 100000
CRI (Ra>) 90
Working Temperature(℃) 0, 50

                                  Main products Hot seller

RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 9mm 5V pixel led
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED Drivers RGB LED Controllers


12V LED Advertising Texsign Module SMD 5054 3-chips LED Module for Lettere signage Yellow Color CE ROHS


Specifications:

Product Name 12v led advertising texsign
Product Size 75*12*05 mm
Voltage DC12V
Power 0.8W/pc
Working Currency 20mA
Bean Angle 180°
IP Rate IP67
Working temperature -45℃～+70℃
Warranty 3 Years
Package 20pcs/roll
Emitting Color Yellow
Application LED advertising light is widely used for all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration.

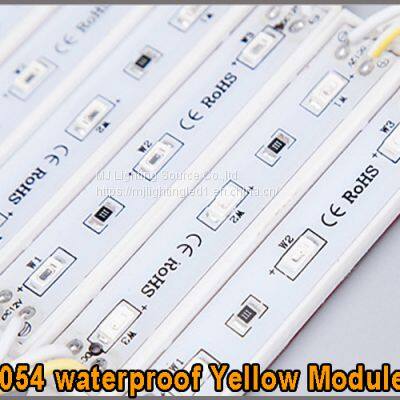

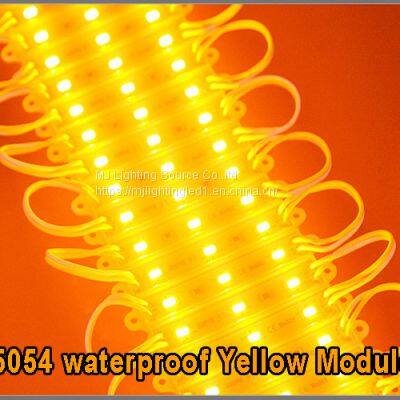

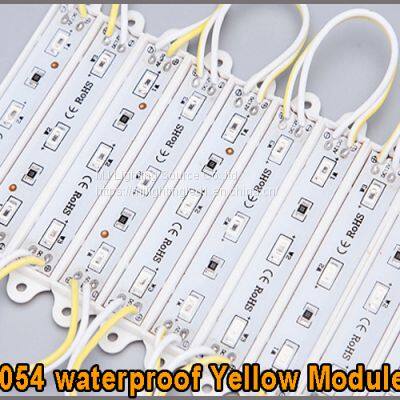

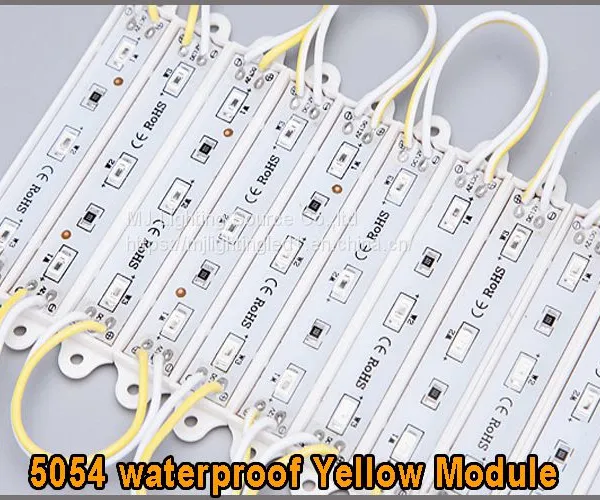

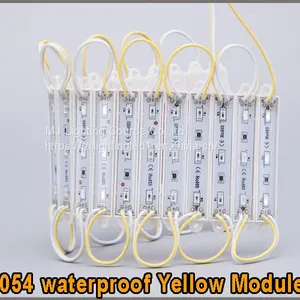

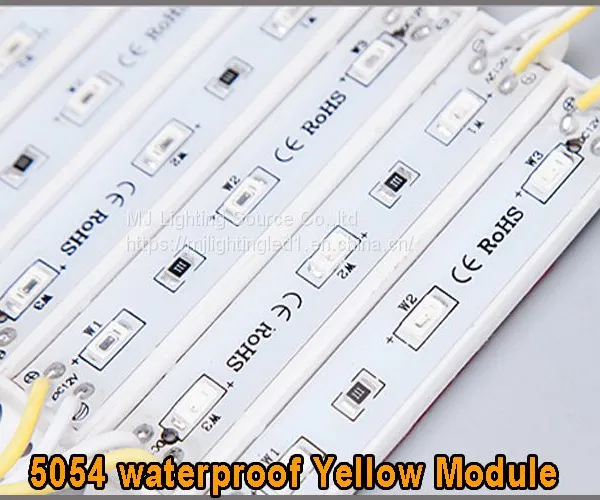

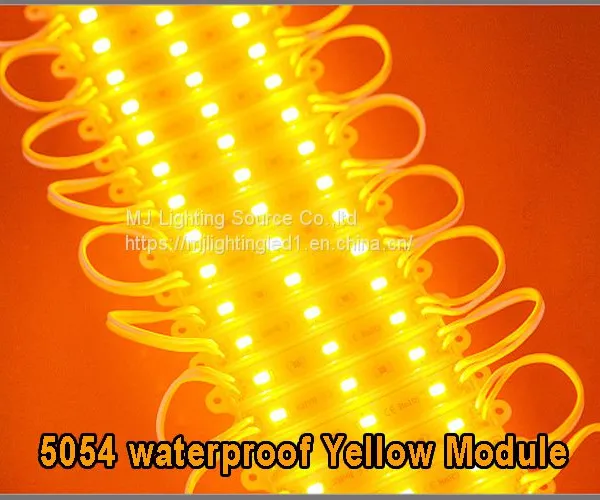

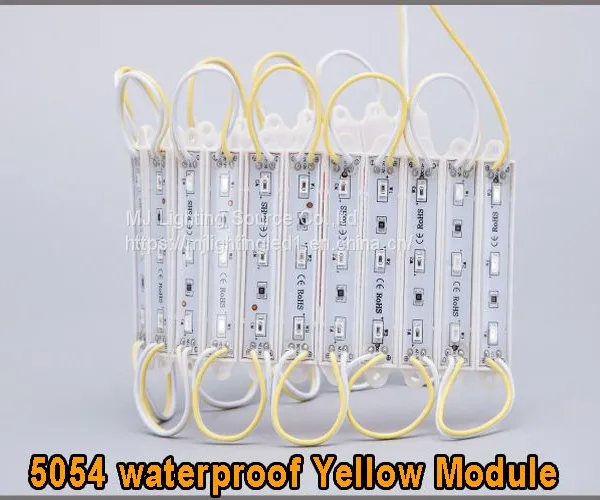

Pictures:




Feature:

1.Produced with Taiwan chip. high lumen, good color purity, lower light dissipation and long lifespan.

2.Compared with traditional lights, LED light has the advantage of energy saving, environmental friendly, long lifespan, Stable well, install conveniently, ect.

3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.

4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.

5.Every piece is connected with series method, If one is down, Just need to exchange the break one. Much different from the kind that need to exchange the whole roll string if there is only 1 pcs gone down.

6.Flexible enough for installation, high strength, High temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP67.


Driver select and installation:

1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.

 2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.

3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

Application pictures:
LED module is widely used for all kinds of LED channel letters,Name board, Wire bar,wall,building and stage decoration.



Notice:
1.Pls confirm the dirver is DC12V output.

2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.

3.Pls make sure of the positive and negative of the string, usually the negative is white.
