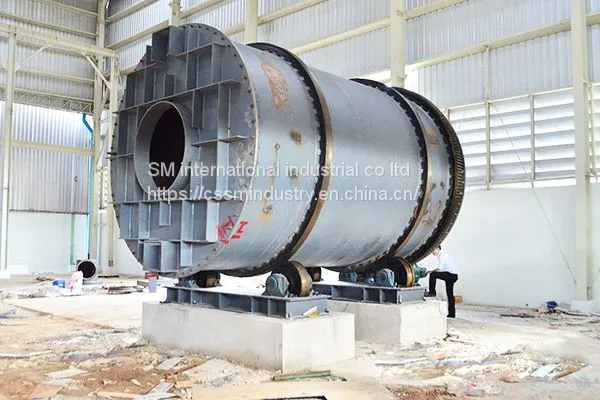

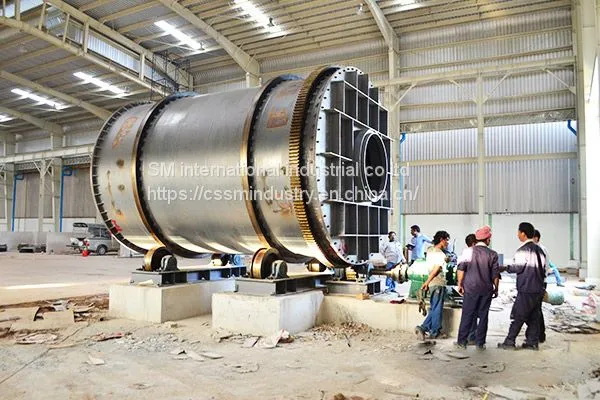

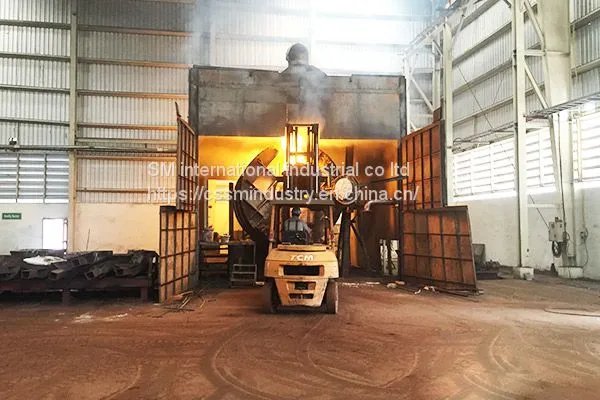

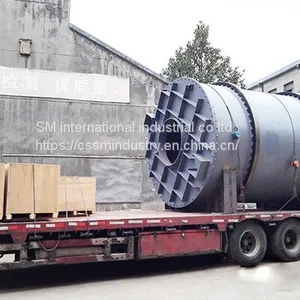

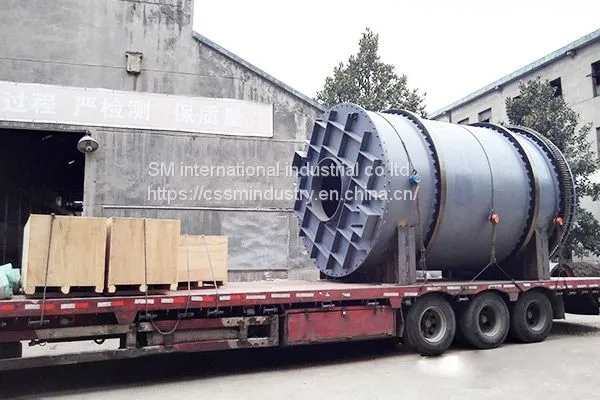

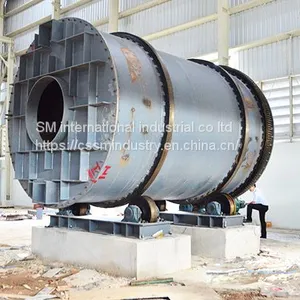

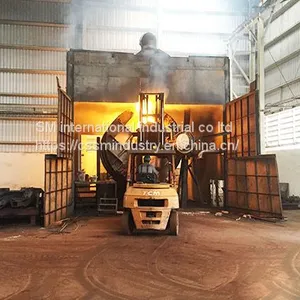

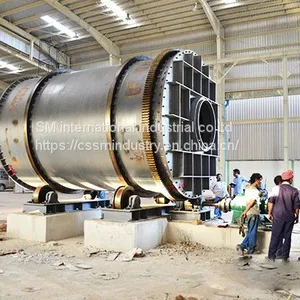

Lead Smelting Rotary Furnace
Lead smelting rotary furnace is widely used for the Lead paste smelting of Battery recycling plants all over the world. SM Industry have rich experience in providing complete system according to customer requirements, which includes: rotary furnace and filters.
The rotary furnace is consist of furnace body, driving system, burner hole, off-gas holefilters.
Equipment name: Lead smelting rotary furnace |
Capacity: 1~20Tons/batch |
Application: Lead acid battery recyclers, Lead ore smelter, Secondary Lead smelters |
Raw material: Lead paste from used battery, Lead ore, Lead dross, Lead slag, crude Lead, and other Lead containing materials |
Product: 98% purity crude lead |
Fuel: natural gas, heavy oil, petroleum coke |
Brick: Mg-Cr brick |
Burner: pyronics burner |
Motor and reducer: China famous brand motors and reducers |
Related equipment: battery crushing and separation system, Lead kettles, ingot casting machine, Lead ladles |
Advantages
1. Good adaptability. It can be used for the roasting and smelting for many type of materials, its capacity can tolerate 50-100% of changes. Comparing with reverberatory furnace, it has higher production energy rate and lower fuel consumption.
2. Small length-diameter ratio, small temperature difference, quick heat transferring, and uniform smelting temperature in the furnace.
3. High heat efficiency and good seal performance.
4. Furnace can rotate, which make the firebricks has a longer life service.
5. Good operation environment with high mechanization level and low labor intensity.
6. The rotating speed can be adjusted according to process requirements.
7. Fuel can be diesel, natural gas, gas, powdered coal, heavy oil, and so on. The gas after heat exchanger will enter surface cooler and then dust bag collector.
