ASME-MRA Non-Contact Magnetic Encoder 260kg.cm 4096 Resolution 32Bit MCU High Torque Servo
- 1000 per Month
- T/T Credit Card
-
ASME-MXA High Torque Servo 360 Degree 260Kg.cm 12-24V Robot Servo For Medium-Sized Large Robots
-
ASME-04A 12-24V 260Kg.cm High Torque Servo Alloy Gear Robot Servo For Large Robot Mechanical Arms
-
Silver 6061 Aluminum Alloy 3pcs 42 Gear Motors + 3-Axis Mechanical Robot Arm 3-DOF Robotic Arm
-
4-Axis Robotic Arm 4-DOF Robot Arm Industrial + 3pcs 57 Gear Motors Load 2.5kg
-
4 Axis Stepper Motor Hand Manipulator Assembled SCARA Robot Mechanical Arm
-
R290 3Axis Robot Arm Assembled Load 500g Industrial Robotic Arm Kit with APP Fits for Android Smartphone
Product Description

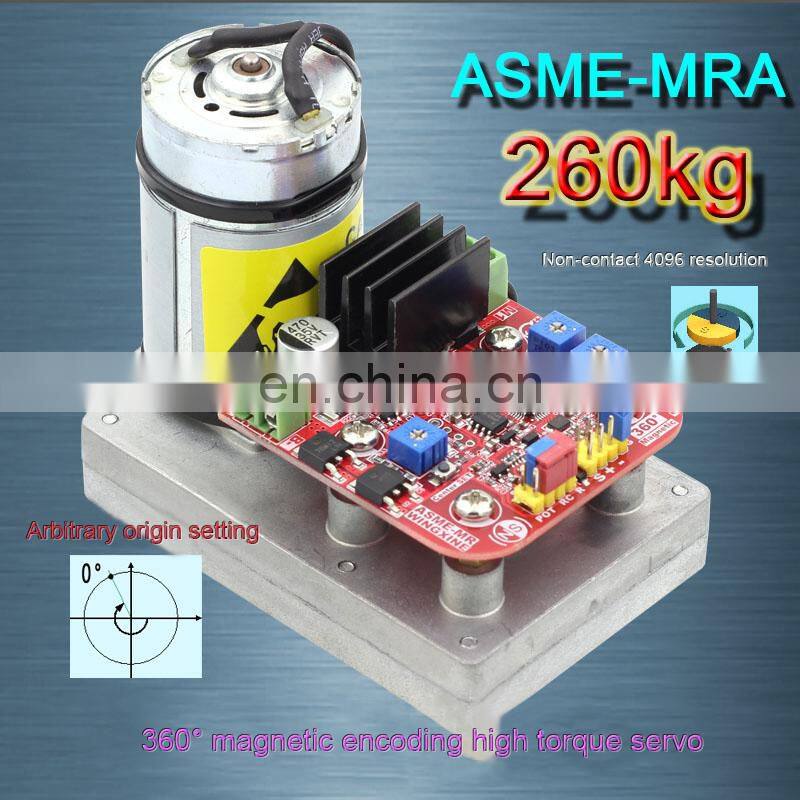

ASME-MRA Non-Contact Magnetic Encoder 260kg.cm 4096 Resolution 32Bit MCU High Torque Servo
Advantages:
1. Use digital port to directly read sensor data and return true angle information. It is not the other way to read chip voltage value to judge angle.

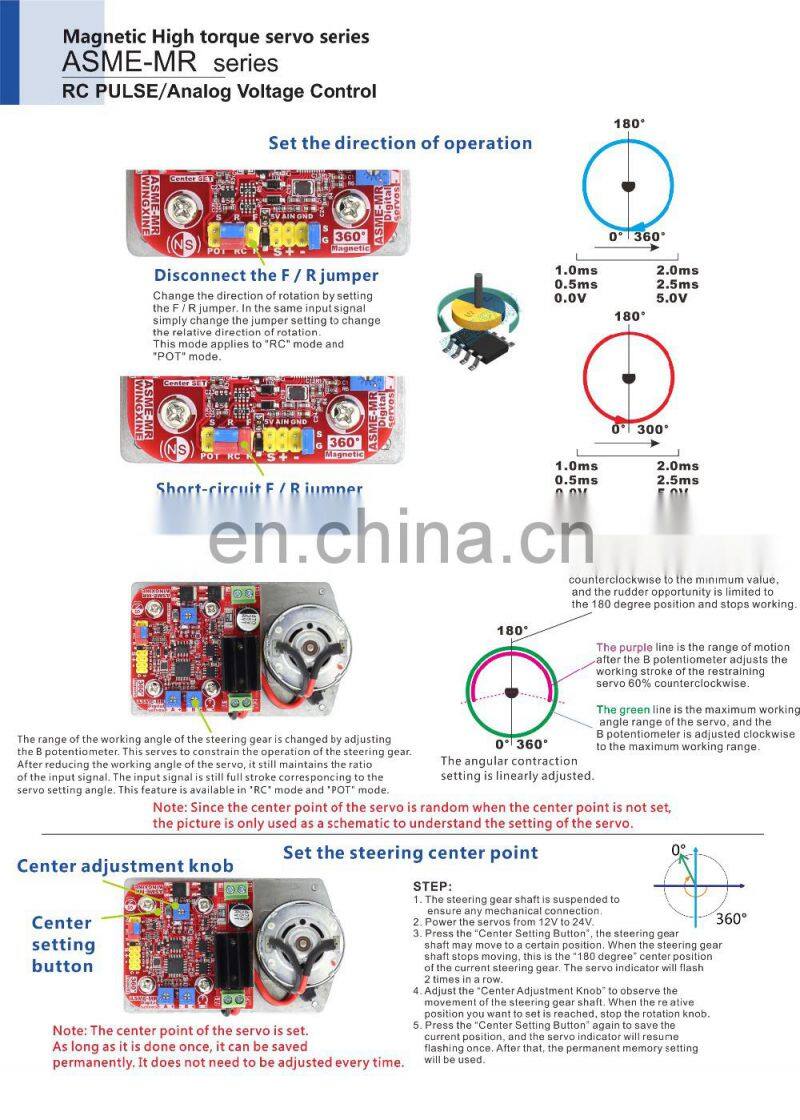

2. Setting the origin by users. It is no longer necessary to consider installation position first, just adjust the origin setting knob on the servo after installation to complete the origin setting. The origin can be memorized in the servo and will not be lost.
3. Real 360-degree controllable range.
Demonstration Video:
/v_show/id_XMzg2NDkyMzAzNg==.html?spm=a2h3j.8428770.3416059.1
Features:
- For steering gear controller, model airplane wireless remote control and analog voltage control
- Alloy gear high power motor high torque output
- Aluminum alloy gearbox body is ultra-lightweight
- Easy to install and durable
Applications:
- Heavy-duty motion control of arm joints and leg joints of large robots
- Industrial automation production line manipulator control
- Precise control of valve angle
- Large camera PTZ remote control
- Various occasions requiring large torque angle control
Rated Parameters (Recommended Operating Conditions):
- Rated voltage: 12V~24V/DC (11V/MIN~30V/MAX, limit voltage)
- No-load current: <500mA (current limit: 5A, it is recommended to use a switching power supply or battery greater than 5A)
- Limit angle: ±180° or 0°~360° (MAX), the steering gear has electronic limit adjustment

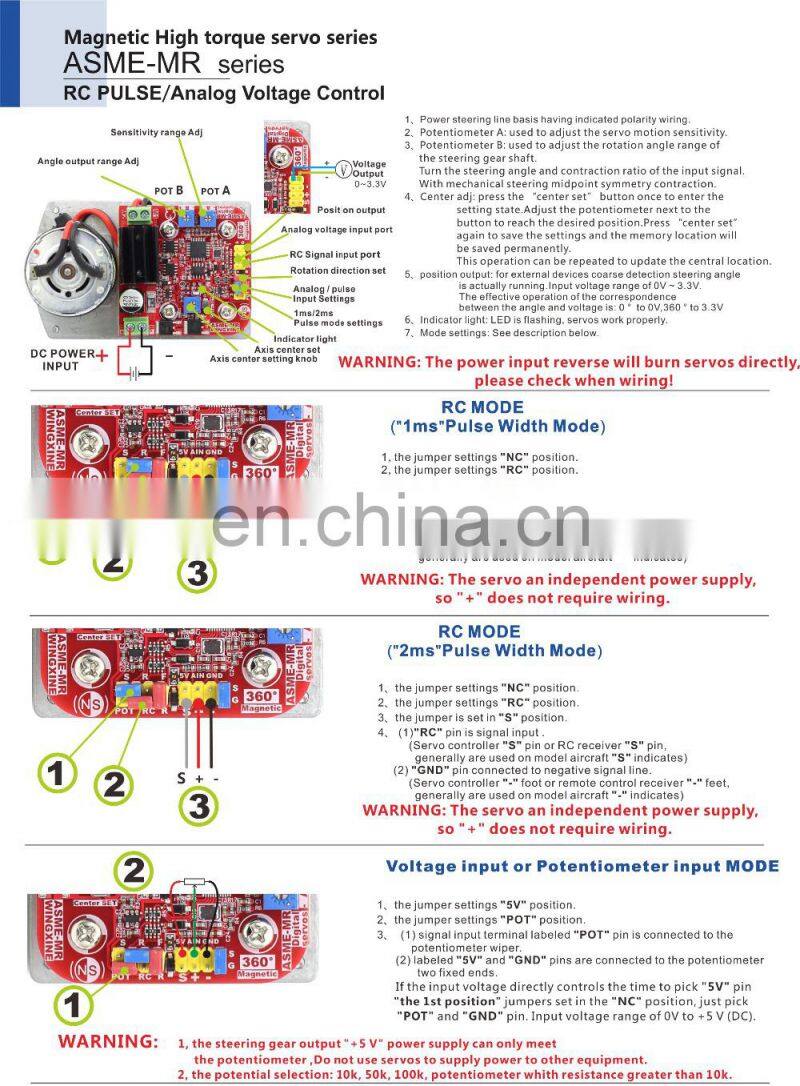

- Control ways:
* RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz (frequency), suitable for wireless remote control. 2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz (frequency), suitable for multiple-way steering gear controller control
* Analog voltage mode: 0V-5V input voltage (0V corresponds to 0°, 5V corresponds to 360°)
- Control resolution: 360° corresponds to 12Bit resolution (4096), 32-bit MCU for ARM, real digital port to read magnetic encoding data
- Materials: gear and shaft: alloy steel; gear box body: cast aluminum
- Product weight: 550g

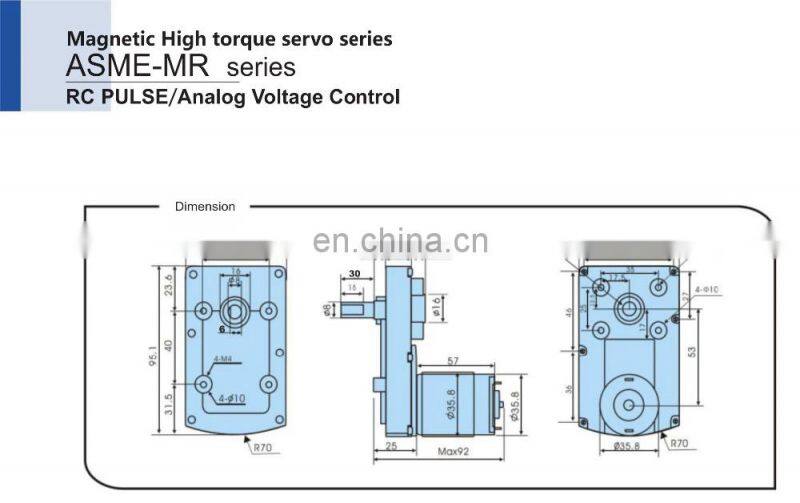

- Dimensions: 95mm*60mm*110mm
- Mechanical life: >1,000,000 times/full load (conservative value)
Limit Parameters:
- Limit voltage: 11V~30V/DC (MAX)
- Current limit: 5A±0.2A (MAX)
- Working angle: ±180° or 0°~360° (MAX)
- Control ways:
* RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz~333Hz (frequency); 2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz~333Hz (frequency)
* Analog voltage mode: 0V-5V input voltage (0V corresponds to 0°, 5V corresponds to 360°)
- Product weight: 510g~560g
Model Specifications:
* ASME-MRA: Starting torque 260kg.cm max; Holding torque 220kg.cm max; Rated speed (24V power supply): 0.12s/60°
* ASME-MRB: Starting torque 380kg.cm max; Holding torque 340kg.cm max; Rated speed (24V power supply): 0.5s/60°
Package Included:
- 1 x Servo
Note:
- Battery is not included.
Detail photo
