Product Description

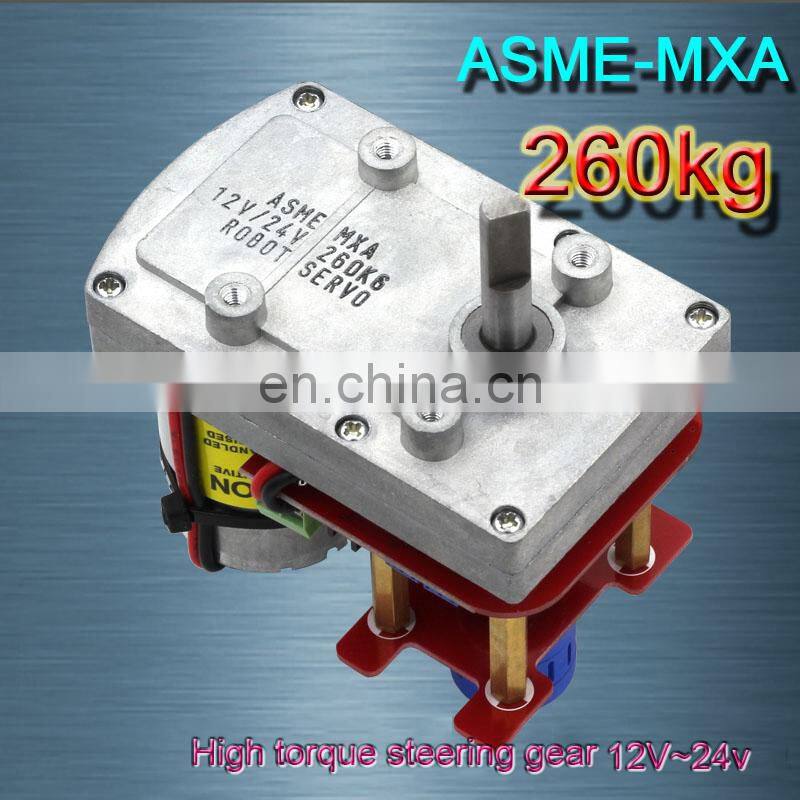

ASME-MXA High Torque Servo 360 Degree 260Kg.cm 12-24V Robot Servo For Medium-Sized Large Robots
Features:
- Large angle 3600 degrees. Excellent for special occasions.
- Digital steering servo has sensitive response, large stroke and zero blind zone.
- Suitable for Futaba, JR, SANWA, Hitec and other remote-control systems.
- Unique power stabilization technology ensures the continuous operation of servo, which is completely different from other steering servos that use fuse protection. Once the fuse of other servos is blown, the servos cannot continue to work. Our servo can stably work within safe torque.
Demonstration Videos:
ASME-MXA and B type remote control mode control contrast speed:
Http:///v_show/id_XMTcwOTI5Njk4MA==.html
ASME-MXA potentiometer control and angle zoom function demonstration:
Http:///v_show/id_XMTcwOTI5Njk2OA==.html
ASME-MXA remote control mode angle limitation function demonstration:
Http:///v_show/id_XMTcwOTI5Njk2NA==.html
Technical Parameters:
- Working voltage: 12V to 24V (DC)
- No-load current: <500mA
- Maximum torque:
* 260kg.cm(24V) (actual measurement, not theoretical calculation value)
* 2496N.cm(24V) (actual measurement, not theoretical calculation value)
* 130kg.cm(12V) (actual measurement, not theoretical calculation value)
* 1248N.cm(12V) (actual measurement, not theoretical calculation value)
- Angular velocity:
* 0.12s/60° (0.12s is required to turn 60 degrees), at 24V;
* 0.24s/60° (It takes 0.24s to turn 60 degrees), at 12V;
- Rotation angle: 3600°MAX, which means the maximum stroke is 3600° (0 to 3600° electronic limit adjustable)
- Input mode: pulse signal (remote control, multi-channel steering gear controller, MCU) or analog voltage signal (potentiometer)
- Pulse signal input range: 0.5ms-2.5ms suitable for all multi-channel servo controllers, 1ms-2ms model aircraft remote control, MCU programming, for Arduino and so on
- Voltage signal input range: 0V to +5V
- Control accuracy: 0.87°
- Weight: 530g
- Gear material: steel
- Dimensions: 95.5mm x 60.5mm x 102.6mm
Application:
- For medium-sized and large robots, robotic arms and other high-power and high-torque control fields.
Package Included:
- 1 x Servo
Note:
- Servo horn pictured is not included.

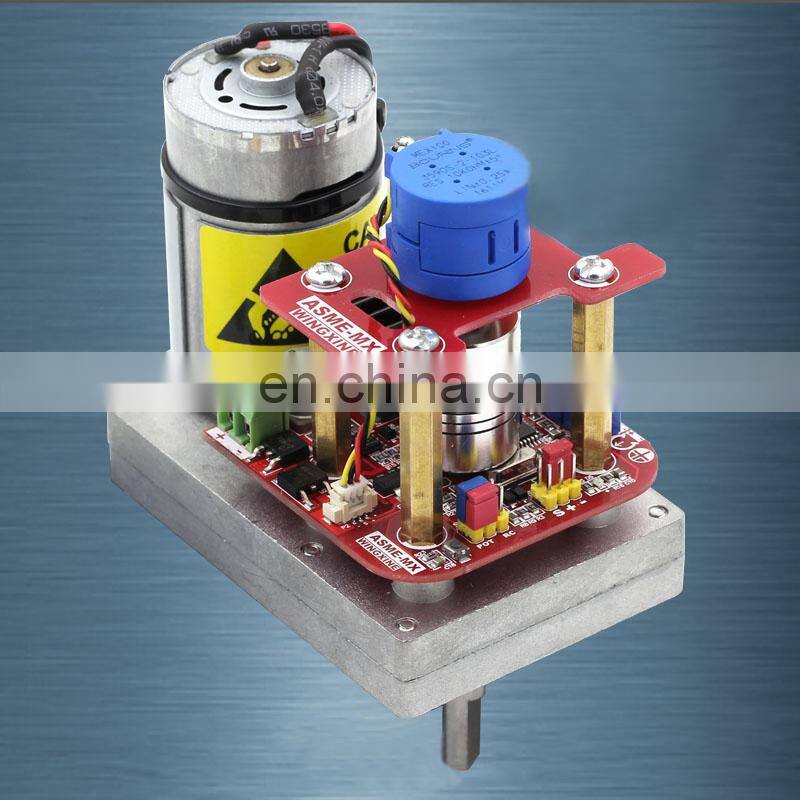

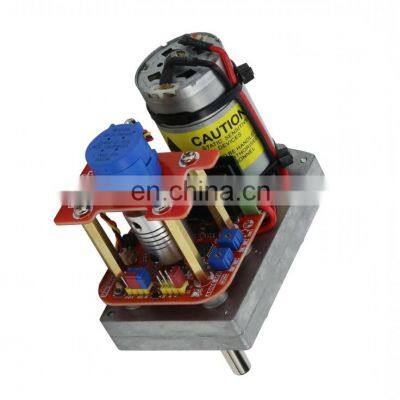

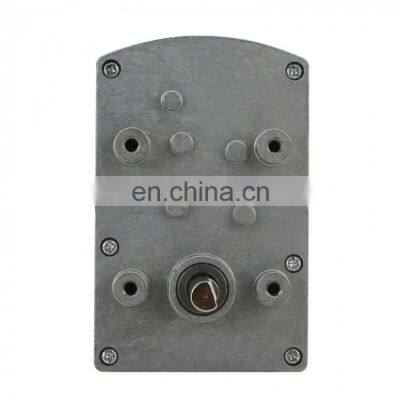

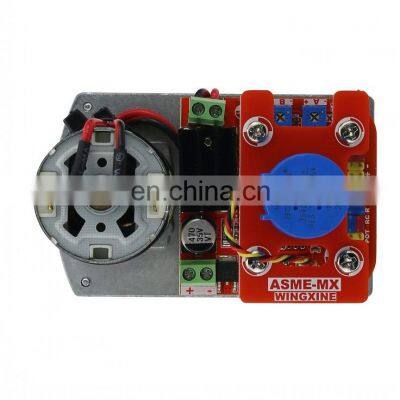

Detail photo
