Silver 6061 Aluminum Alloy 3pcs 42 Gear Motors + 3-Axis Mechanical Robot Arm 3-DOF Robotic Arm

3-Axis Mechanical Robot Arm 3-DOF Robotic Arm + 3pcs 42 Gear Motors Aluminum Alloy 6061 Silver

Package Included:
- 1 x Mechanical Robotic Arm
- 3 x 42 Gear Motors

Specifications:
- Material: 6061 Aluminum Alloy
- Deceleration Ratio: 1:10
- Maintaining Torque: 4.32 Nm
- Allowing Torque: 4.32 Nm
- Maximum Torque: 8.64 Nm
- Resolution: 0.18°
- Backspace: ≤15 arc minute
- Noise: ≤ 45 dB
- Efficiency: 96%
- Life Span: 20000 h

- Phase: 2
- Step Angle: 1.8 deg.
- Voltage: 4.83V
- Current: 0.84A
- Electric Resistance: 5.75Ω
- Inductance: 9.3mH
- Static Torque: 2.8kg.cm
- Insulation Class: B
- Load Capacity: 500g

Note:
- Black end cap.
- Controllers and drivers are not included.

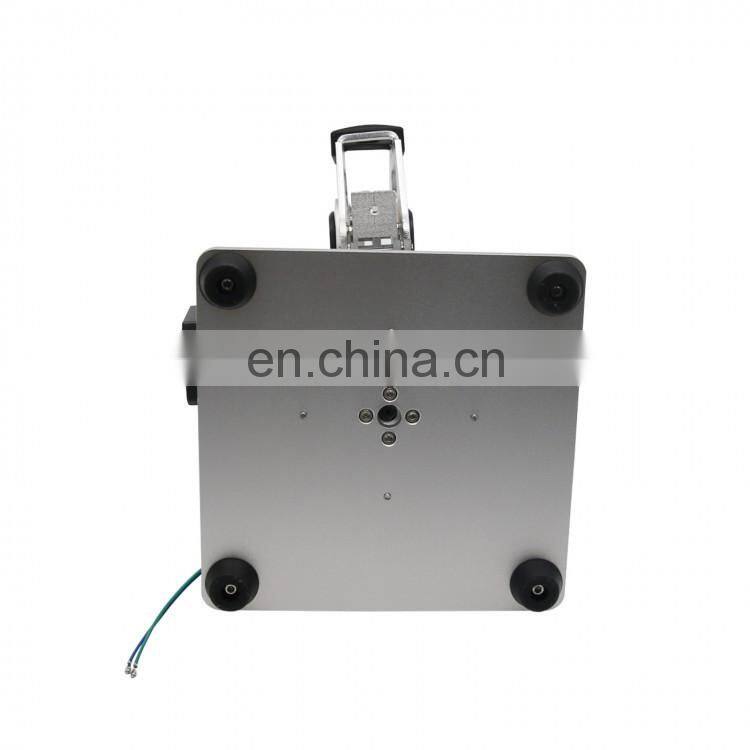

- Base size 150*150mm

Detail photo
