12V 24V 48V Lead-acid Lithium 180W Constant Current Electronic Load 200V 20A Battery Tester Discharge Capacity Tester

Product Description:
- It can be taken as electronic constant current load,USB tester,cable detector.Built-in ontelligent temperature control and large power auto protection,safe discharger.
- Test charger function voltage and maximum current

Specification:
- Input interface/Output interface:100A large current  occluding screw column
- Voltage testing range:0.00V~200V;Resolution accuracy:0.01V
- Current testing range:0.00A~20A;Resolution accuracy:0.01A
- Capacity accumulated range:0~999.999Ah;Resolution accuracy:0.01Ah
- Electricity accumulated range:0~9999.9Wh;Resolution accuracy:0.01Wh
- Power measurement range:0000.00~150/180 W;Resolution accuracy:0.01W
- Impedance measurement range:1~999.9 ohm;Resolution accuracy:0.01ohm
- Temperature measurement range:0~99℃,0~99℃;Resolution accuracy:1℃
- Timing the max time:999 hours 59minutes 59 seconds;Resolution accuracy:1s
- Timing testing alarm setting:count down 24 hours Arbitrary setting value
- Small current standby alarm threshold parameter and timing:<2W/0.5 hour; >0.5W begin timing
- 4~30V DC voltage provides electricity for testing system
- Refresh time:>500mS/times;> 500mS/times
- Testing speed rate:about 0.5 times/s
- Over voltage over current setting alarm method:display warming interface alrm users
- Over voltage warning setting range:1~200V
- Low voltage warning setting range:0~190V
- Over current warming setting range:0.2~100A
- Display screen type:micro power consumption crystal module LCM black font green backlight Chinese English display screen
- Size:156x96x58mm
- Working temperature:-10~+60℃; -10~+60℃
- Working humidity:10~80℃ (no condensation);10~80℃(no doubt)
- Working gas pressure:80~106kPa - When the power is > 0.5W, the time will be calculated.
- Take-all Measurement
- One screen multi group data Display
- Support Qualcomm QC2.0 compatible QC3.0 quick voltage range test
- Power Down Data Retention Charging time protection
- Voltage display  Current display  capacity display    Electrical voltage display    Power display    Timing display
- Real-time monitoring
- Power Test: 180W optional
- Voltage:0-200V Current:0-20A
- Industrial grade long life 180W power continuous discharge
- USB Dual Adjustment accuracy Electronic Load discharger
- Industrial discharge load USB tester

Note:You need to test Qualcomm QC2.0/QC3.0 quick voltage (5V, 9V, 12V, 20V) and requires a combination of our QC2.0/QC3.0 trigger can test,can directly read Qualcomm QC2.0/QC3.0 fast charging voltage (5V, 9V, 12V, 20V).

Operation method:
Keystrokes using method and the capacity, power,time reset Settings:
1) Reset button long-press all data (mAh,Wh,00:00:00)
2) Quickly button twice - capacity Reset (mAh)
3) Quickly button three - power reset (Wh)
4) Quickly button four - time reset (00:00:00)
5) Quickly button five - Set up automatic standby and Discharge the countdown to remind regularly
6)When no load output no-load,quick seven keys,and for the current zero to zero in the current environment temperature for accurate calibration,so more can do more accurate measurement in small current.

Package List:
- 1 x 180W USB Mobile Power Tester
- 1 x Charger
- 1 x Crocodile clamp cable
- 1 x Crocodile clip to USB male head

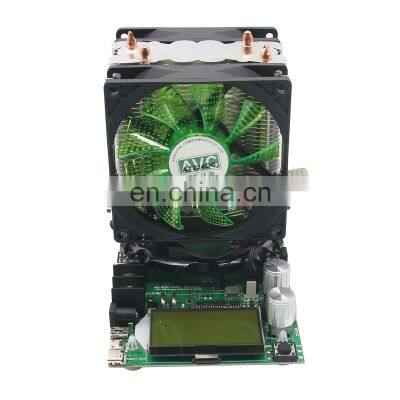

Detail photo
