DSO2512G 120M Bandwidth 500M Sampling Mini 2 Channel USB Digital Oscilloscope For Repairs
Description:
DSO2512G 120M bandwidth oscilloscope boasts powerful functions, like adoption of chips for ARM and FPGA. It also can output various waveforms of 2.5V amplitude such as sine waves, half waves and so on. Come and try it, it will not let you down.
Features:
- Chips for ARM and FPGA provide high-speed signal acquisition and high-speed data processing to give you a smooth use experience and rich functions
- When the channel two closed, the bandwidth can reach 120M, the bandwidth is 60M when the channel 1 and 2 open at the same time
- Wide applications: can be used for such as MCU debugging, car maintenance, home appliance maintenance, DIY debugging, electronic competition, power supply debugging, frequency converter and the like

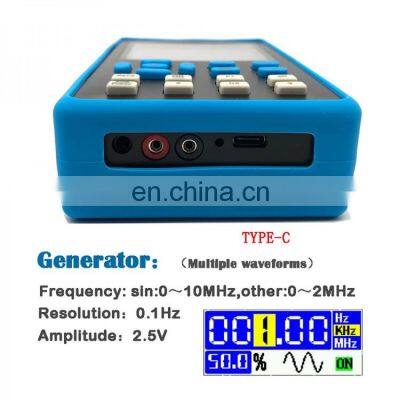

- The bottom of the oscilloscope can output a variety of waveforms of 2.5V amplitude such as sine waves, square waves, triangle waves, half waves, among which the frequency adjustment ranges of sine waves is 0~ 10MHz, the frequency ranges of other waveforms is 0~2MHz, and the accuracy is up to 0.1Hz. Signal generators are widely used, such as square waves for new probe calibration, driving MOS tube, etc., sine waves can be used for testing audio distortion, etc.
- There are 14 measurement options available: Frequency, Peak-to-Peak, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle
- There are three types of trigger mode: auto, normal and single. The automatic trigger can update the waveform in real time without triggering. The normal trigger need have a waveform trigger to update the waveform and the single trigger will sample a frame of waveform and stop automatically after the key is pressed
- Through USB cable connection, the waveform map can be exported to a computer (up to 50 at a time) for you or others to use.
- Support scaling waveform after stopping: after stopping, you can drag the waveform from left to right to find the place you are interested in to expand the observation details and analyze the cause of the problem
Specifications:
- Channels: 2
- Coupling: AC/DC
- Precision of V: ±2%
- Bandwidth 120M
- XY mode: support
- Sampling rate: 500M
- Screenshot: support
- Rise time: <3ns
- Frequency: ±0.01%
- Storage depth: 128Kbit
- Single: support
- Impedance: 1MΩ
- FFT: support
- Time base: 5ns~10s
- Wave out amp: 2.5V
- Vertical sensitivity: 10mV/div~10V/div
- Waves out freq: 10MHz(sin) 2MHz(other)
- Max voltage ±40V (x1), ±400V (x10)
- Trigger type: rise/fall
- Display mode: YT/Roll
- Persistence: None/1s /∞
- Battery: lithium battery, 4000mAh

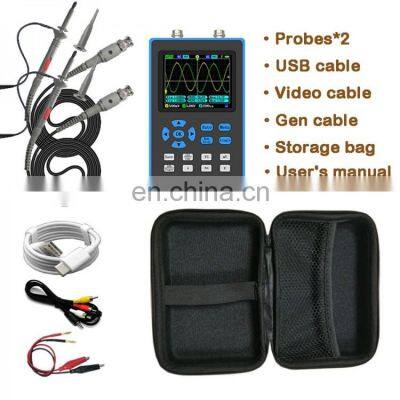

Package Included:
- 1 x Set of Oscilloscope
