Description:

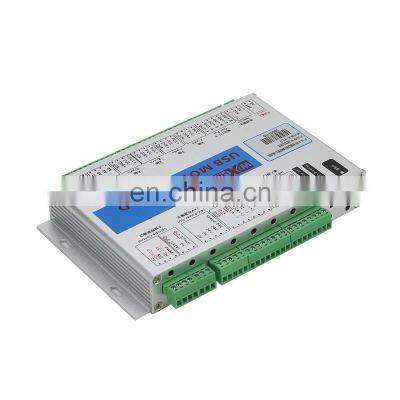

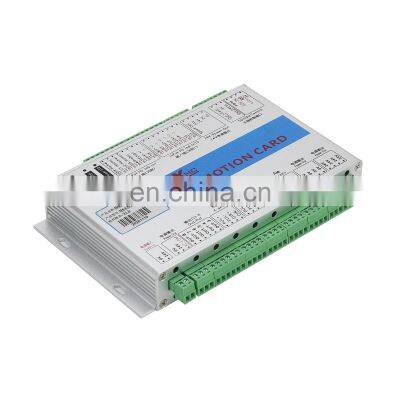

This is the latest generation 4 axis Mach4 motion control card, which is the fourth generation calling MK4-M4. It could work under Mach4 software.The maximum step-pulse frequency is 2000 KHz. Now MK4-M4 is stronger, more stable and better performance than other version.

Features:
1.Dual-Processors, ARM+FPGA, More processing power
2.Support all versions of Mach4.
3.Work under Windows 32-bit operating system (not including Mac OS)
4.Support spindle speed feedback function.
5.USB jack does not need to install the driver, plug and play under all versions of Windows.
6.Full support USB hot-swappable, USB connection status monitoring at any time. Under Mach4 working state, USB cable unplugs and then plugs in, but also the normal connection.
7.Supports 4-axis linkage.

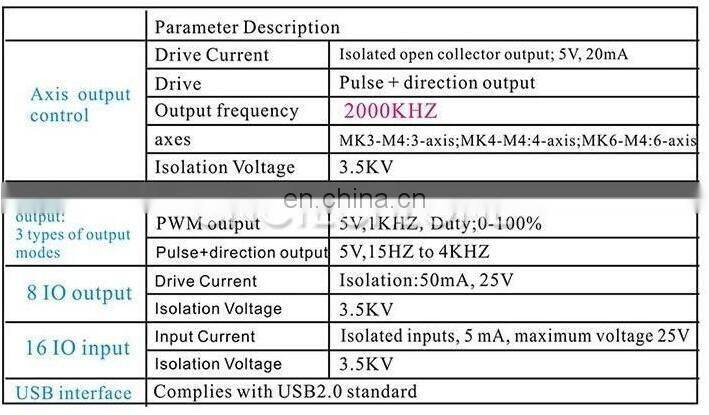

8.Maximum step-pulse frequency is 2000 KHz, can connect servo driver and stepper driver.
9.The indicator light indicates various working status, such as USB connection, Mach4 connection and so on.
10.16 input IO, 8 output IO, Supports extended I / O control.
11.Onboard isolated power supply, not need external power supply.
12.All IO port fully isolated, strong anti-interference, stable performance.
13.Support spindle speed PWM output; support spindle pulse and direction output; support spindle speed output from 0 to 10V analog voltage.
14.Support XHC series of wireless electronic Mach4 MPG, such as WHB04B-4-M4 MPG.
15.With an aluminum shell, effectively shielding interference, stable and reliable performance.

Mach3 Recommended Requirements:
PREFERRED: 32 or 64-bit Laptop or Desktop – Using an External Motion Controller
    Windows 10, Windows 8, Windows 7 & Windows XP
    An appropriate external motion controller
    Mach4 Plugin for the selected Motion Controller
    2Ghz CPU
    1GB RAM
    Video Card with 256MB RAM(Large G-code files, especially 3D files will require a video card with 512MB RAM or higher)
*Use of Parallel Port for machine control only with desktop style computers with 32-bit versions of windows 7 and below.
32-bit Desktop – Parallel Port Recommended Requirements
    32-bit version of Windows XP, Windows Vista, or Windows 7
    Mach4 Parallel Port Legacy Plugin (cost applicable)
    2Ghz CPU
    1GB RAM
Non-integrated Video Card with 256MB RAM(Large G-code files, especially 3D files will require a video card with 512MB RAM or higher)

Note: we don't offer Mach4 software. If you need it, you could purchase through mach software's site

Package Contents:
- 1 x CNC Mach4 USB 4 Axis Motion Control Card
- 1 x USB Cable
- 1 x English Manual
