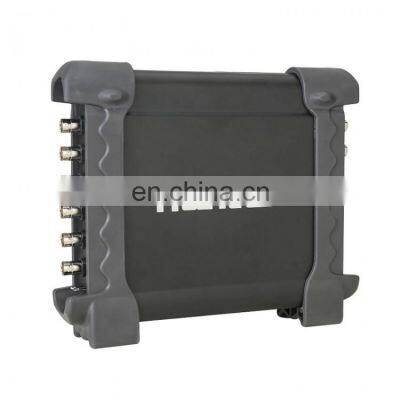

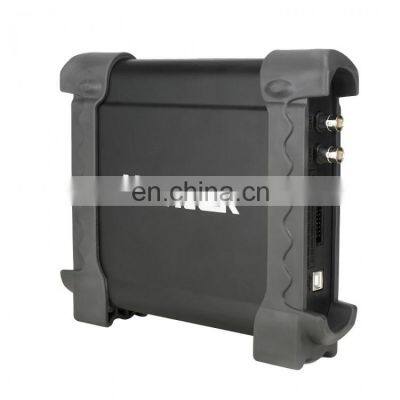

Hantek1008C 8-Channel Programmable Signal Generator Automotive Diagnostic Hantek Oscilloscope
Description:
8-channel oscilloscope is for vehicle testing. It feature over 80 types of automotive diagnostic function (Ignition/Sensor/Bus detection/Perform/Starter and charging circuits etc.). Video Help Function provides the video help of diagnostic which can be watching online. The diagnostic result can be generated in diagnostic report, printed or taken screenshot by pushing one key, supporting many methods to save the data. Supports recording waveform for a long time. It can simulate camshaft and crankshaft signal. Transmit signals through USB 2.0 interface plug and play, requiring no extra power supply.
Features:
- 8-channel automobile diagnostic instrument, equipped with more than 80 automobile diagnostic functions (ignition / sensor / bus detection / actuator / startup & charging, etc.) as standard.
- Video help function provides car test video help, can be watched online.
- The test results can be generated in a variety of ways, such as generating a diagnostic report, one-click printing, and screenshots.
- Support waveform recording. It can record waveform for a long time, and can simulate camshaft and crankshaft signals.
- USB2.0 power transmission signal. Plug and play.
Main Functions:

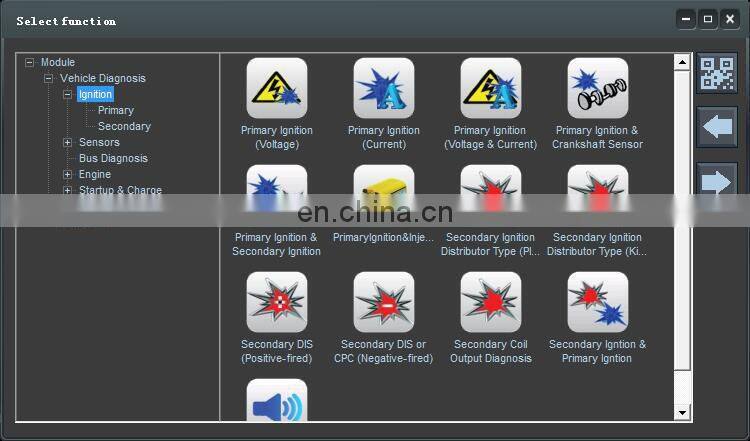

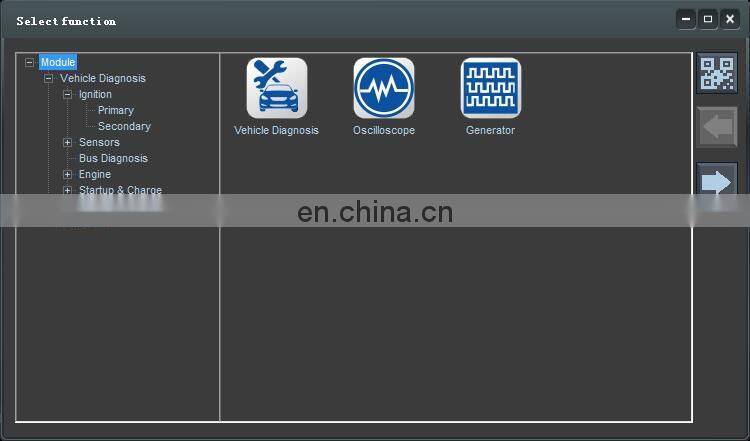

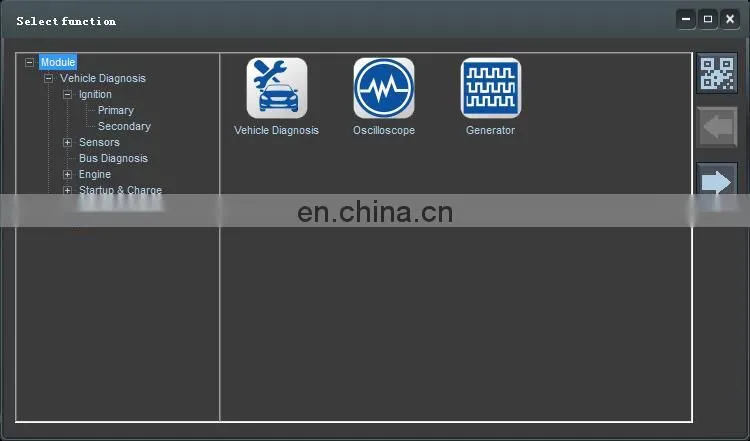

- Function Selection:
There are three functions of vehicle diagnosis, oscilloscope and signal generator, including 78 types of vehicle diagnosis function.

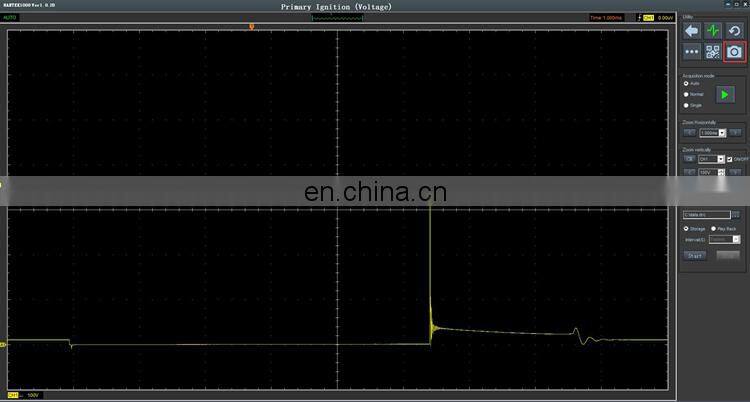

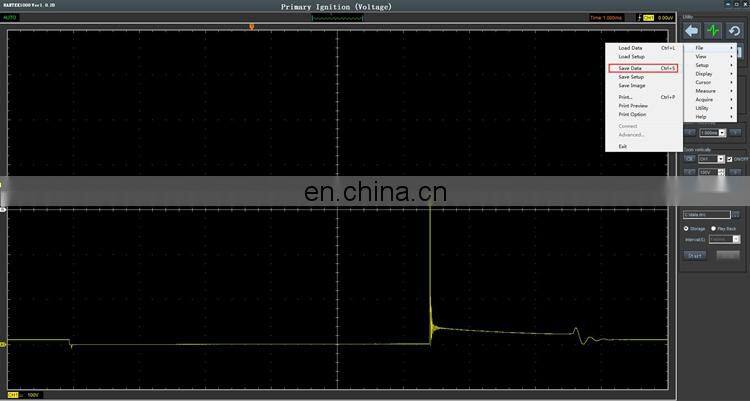

- One Button Screenshot:
Save the current waveform and generate pictures. Storage location is optional and easy to find.

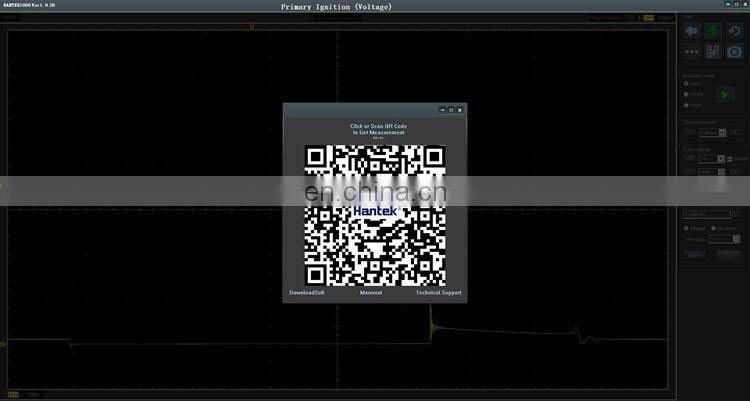

- Quick Guide:
Callout the quick guide column with one button. There are special vedio guide for each vehicle diagnosis function, including wiring method, adjustment method, reference waveform etc. And it is supported to be checked through scanning the QR code.
- Reference Waveform:
Over 80 types of of standard reference waveform inside and can be callout or close with one button. It is convenient to be compared.

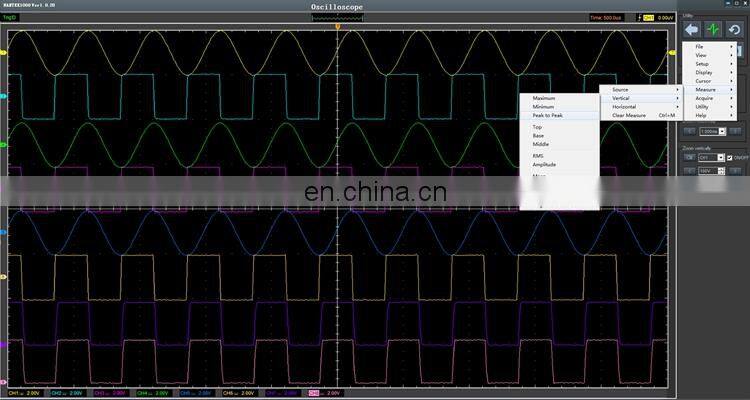

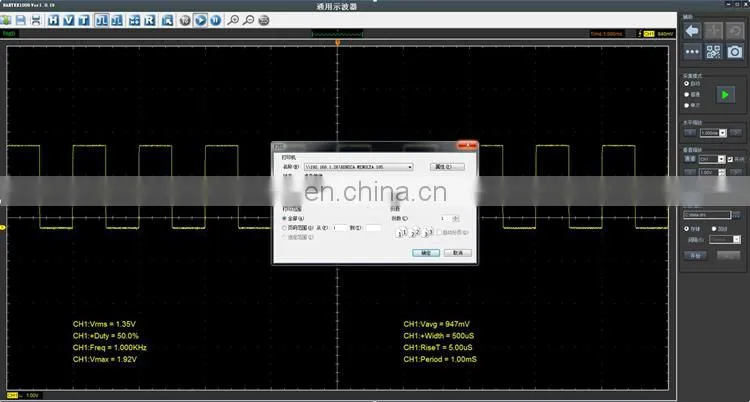

- Measurement Method:
20 types of automatic measurement method which can be callout or close with one button. It is convenient and visual to read out the result.
- Print:
The result can be printed with one button and generate diagnosis report which is easy to be saved and recorded.

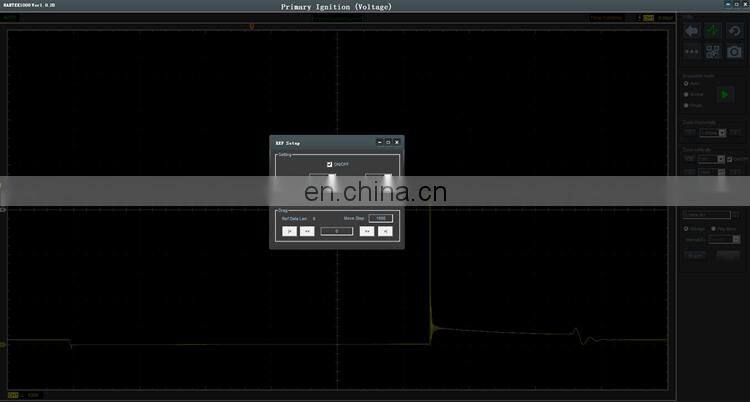

- REF Comparison Waveform:
The user can save the waveform as REF format and callout it again when you need to compare the two waveforms catched in different time.
- Data Storage:
The diagnosis result can be saved as the format of txt, csv, rfc, xls, doc, jpg and etc. It is convenient to be checked and compared later.

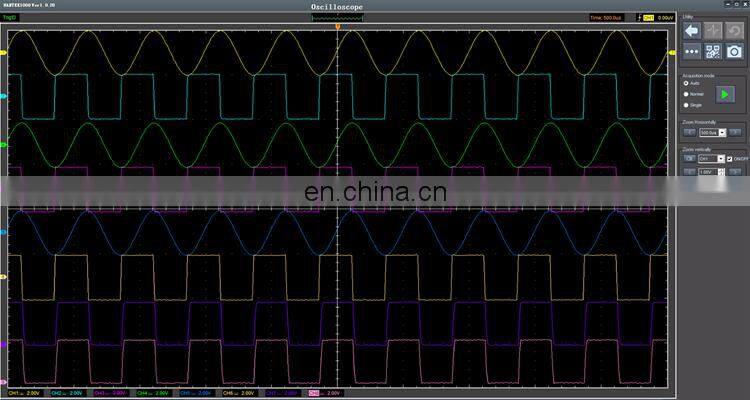

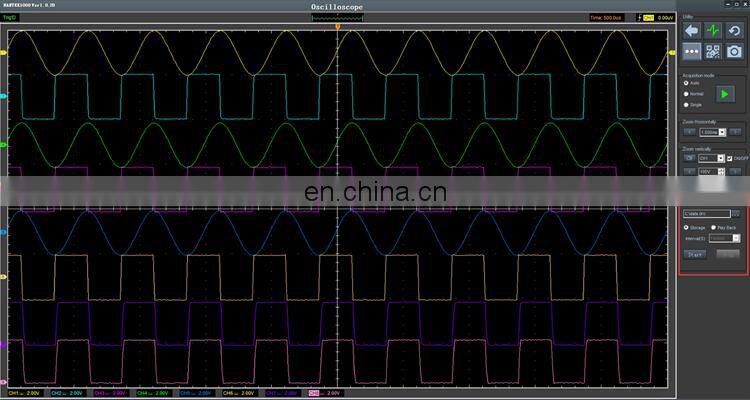

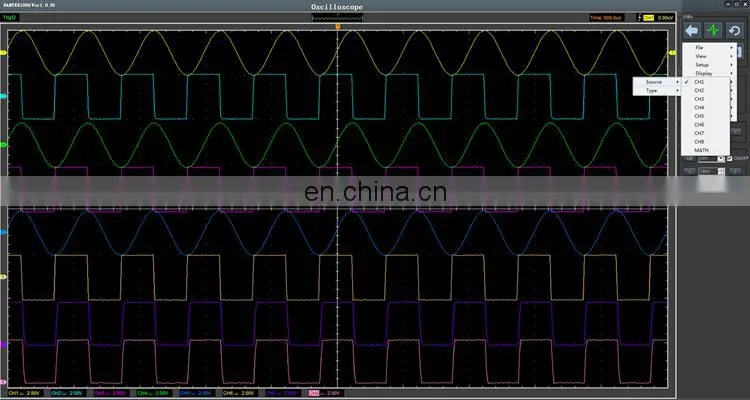

- 8CH Vehicle Diagnosis:
8CH signal can be measured simultaneously. The measurement voltage of each channel can be adjusted independently. You can choose to open or close each channel.
- Waveform Record:
Support to record and replay the waveform. The waveform can be save into the computer hard disk and easy to read. There is no limit to the record time which can long-time measure and record the waveform for troubleshooting.
- Multilanguage Support:
Support the display surface in Chinese, English, German language, and it can be switched freely.
- Cursor Measurement:
Support 4 types of cursor measurement mode -cross,track, horizontal, and vertical. It's easy to read out the time and voltage of irregular signal.

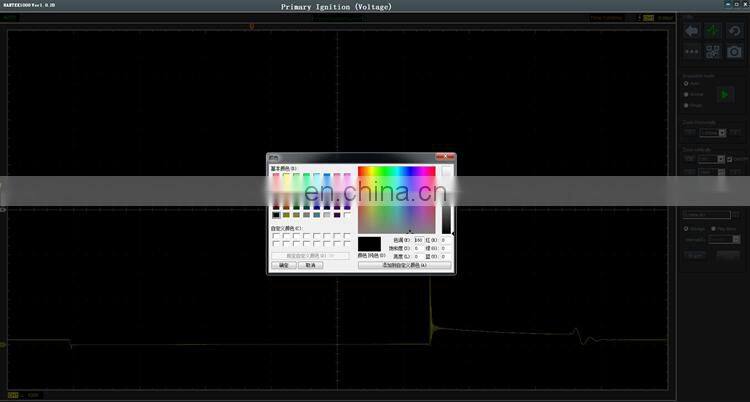

- Color and Lightness:
The background color is optional as user's preference. And the lightness of waveform and gridding is settable.

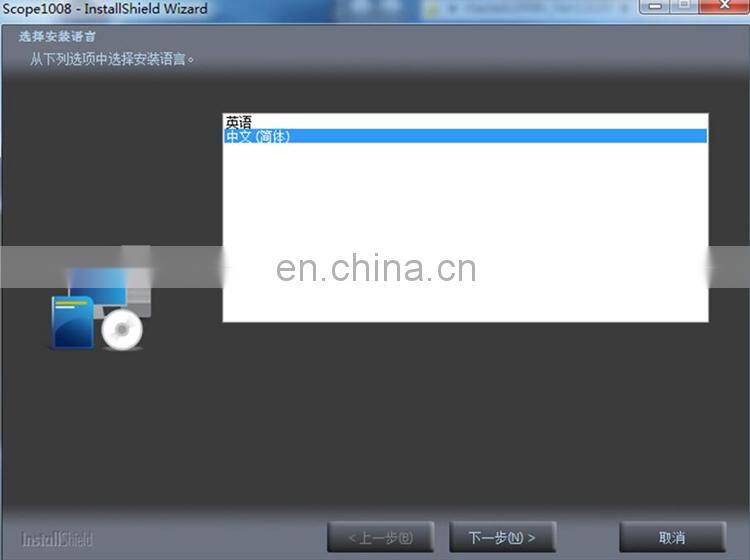

- Easy to Install Software:
Install the PC software and start to use without any other drivers. Support for WIN XP/7/8/10.
- USB Communication:
USB2.0 power supply + communication interface, plug and play, and support hot plugging.
- Signal Generator:
Signal generator function, can simulate crankshaft and camshaft signal.

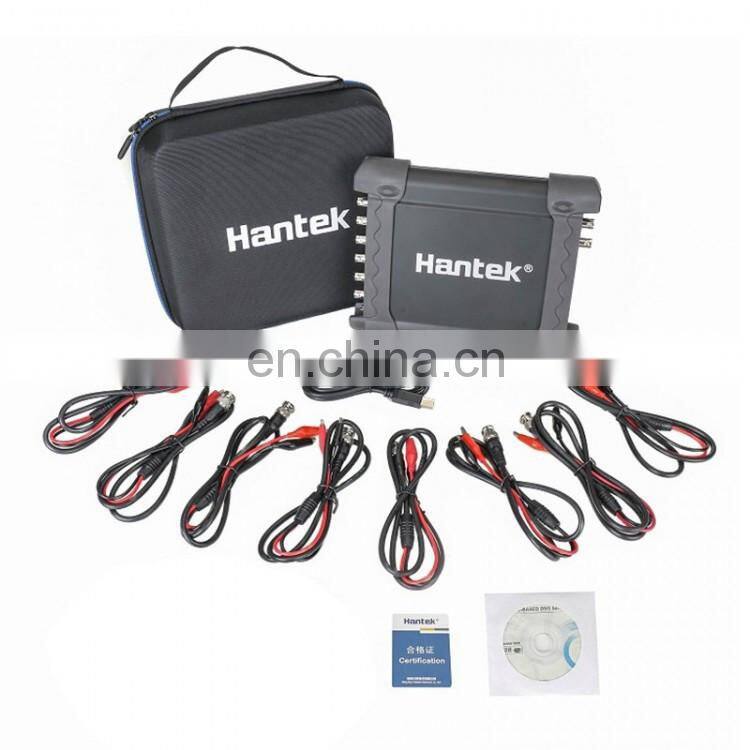

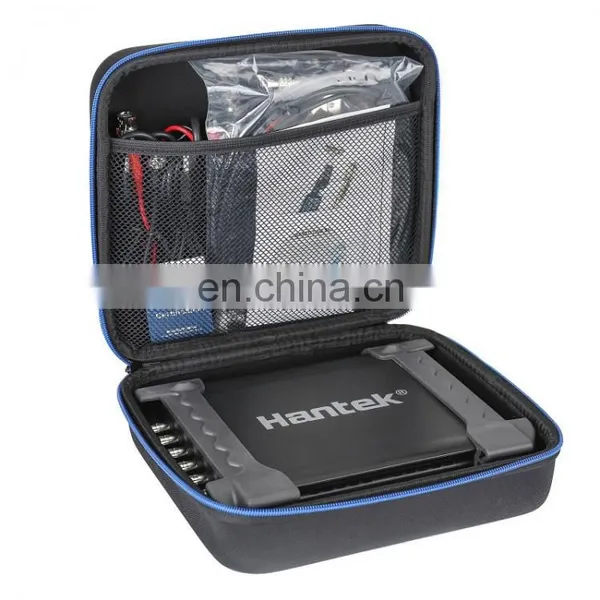

Package Included:
- 1 x Oscilloscope

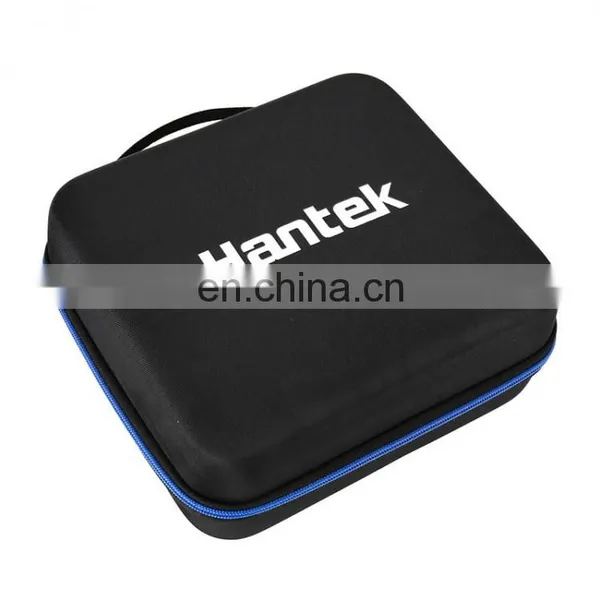

- 1 x Carry Bag
- 1 x USB Cable
- 8 x Cables
- 1 x Probe
- 1 x CD
- 1 x Instruction
- 1 x Certification
