4-Axis CNC Controller Kit MPG Pendant Handwheel Emergency Stop + 4-Axis XC609MD CNC Controller
Package Included:
- 1 x 4-Axis MPG Pendant with Emergency stop
- 1 x 4-Axis CNC Controller

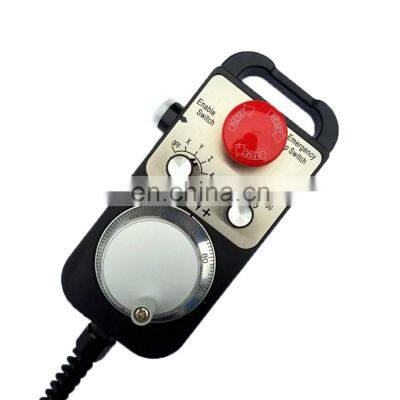

4Axis MPG Pendant Handwheel 5V 100PPR
Description:
- The CNC 4 Axis handheld controller MPG Pendant with x1, x10, x100 selectable. You are bidding one complete unit of the MPG pendant with Emergency stop for 4 axis CNC machine, it equipped with our popular machined MPG unit with 4 axis and scale selector, LED indicator also send feedback from the CNC machine to user about the status of the unit.
- All Wiring isolated from MPG unit and provide a easy to install wiring diagram, it suit both commercial machine as a replacement jog control unit or other computer based controller. Which add great control flexibility to the system.
Features:
- x1, x10, x100 switch
- X, Y, Z, 4th axis selector switch
- LED indicator
- With Emergency stop
- High quality professional chassis
- 6ft extendable high quality shielded cable cord
- Magnetic base holder can place anywhere on the machine steel surface
- Required 5V+, 150mA, power for MPG
- Phase output is A,/A and B,/B;
- TTL output, drive capability +-20mA;
- Support CNC system: Taiwan Pou Yuen M600 M500 M520i T300 series, Higerman, HANUC, GSK, opened NC, KND, Siemens, the NUM, Spain FAGOR (NEW, 8055I) and so on.
- Wiring: User can wire this unit to the CNC system with easy.

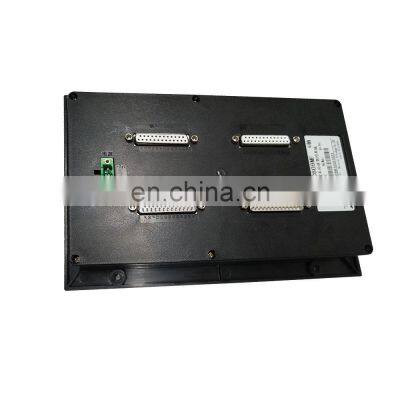

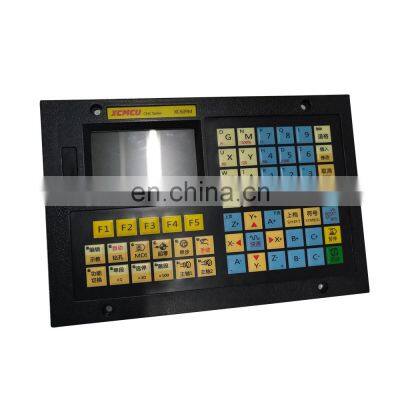

4-Axis CNC Controller XC609MD
Description:
The CNC Control System is a latest multi-functional CNC system. It supports milling, boring, tapping, drilling and automatic feeding. It adopts 32-bit high-performance microprocessor, real-time multi-task control technology and hardware interpolation technology, fully linked, 0.001mm interpolation precision, speed 12m/min.
It is your greater choice to control your CNC drilling machine, CNC milling machine, special machine tool, automation equipment, automatic welding robot, feeding robot and coordinate robot.
Features:
- Based on 32-bit microprocessor, full linkage, 0.001mm interpolation accuracy, speed up to 12 m /min
- Can run 3 programs (1 main program, 2 sub-programs) at the same time, which is convenient for processing, loading and unloading
- With 3.5-inch color widescreen LCD, resolution 480X320, Windows interface style. Equipped with 5 function keys, it is easy to operate. It is convenient for debugging and maintenance with display interface such as parameter classification, alarm log, system diagnosis.
- Standard G instruction, compatible with FANUC system instruction.
- 40 kinds of G instruction that support drilling cycles, tapping cycles.
- Full-screen editing part program, built-in 128M massive program space which can store various parts program.
- With USB interface which supports U disk file read and write, data backup.
- I/O 24 pins can be developed to 96 pins
- Convenient to operate with Chinese/English operation interface
- The system adopts pre-interpolation acceleration and deceleration control
- Support multi-level operation authority and limited time system locking function, which make it easy to manage
- Supports third-party software G code files.
Technical Specifications:
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.
3. By Sea: Delivery from the Shanghai sea port .
Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!
Our Advantages:
- Source only the best consumer goods and ensure the highest quality.
- Streamline the buying and payment process, and make it as easy as possible.
- Help the customers all over the world discover products and manufacturers in China.
- The Shortest order processed time and speed delivery
