Applications:

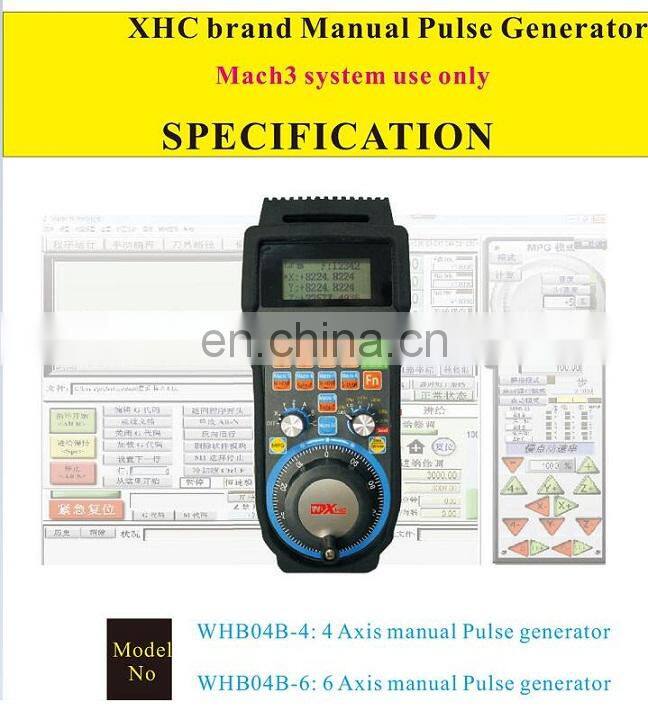

WHB04B has 2 series:
1.WHB04B-4:support 4 axis with x,y,z,a
2.WHB04B-6:support 6 axis with x,y,z,a,b,c

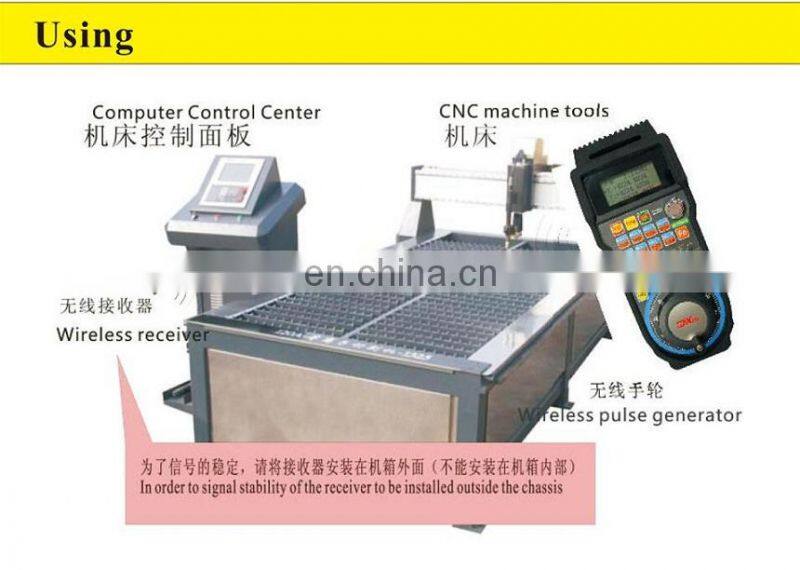

Application on mach3 cnc system in windows platform.

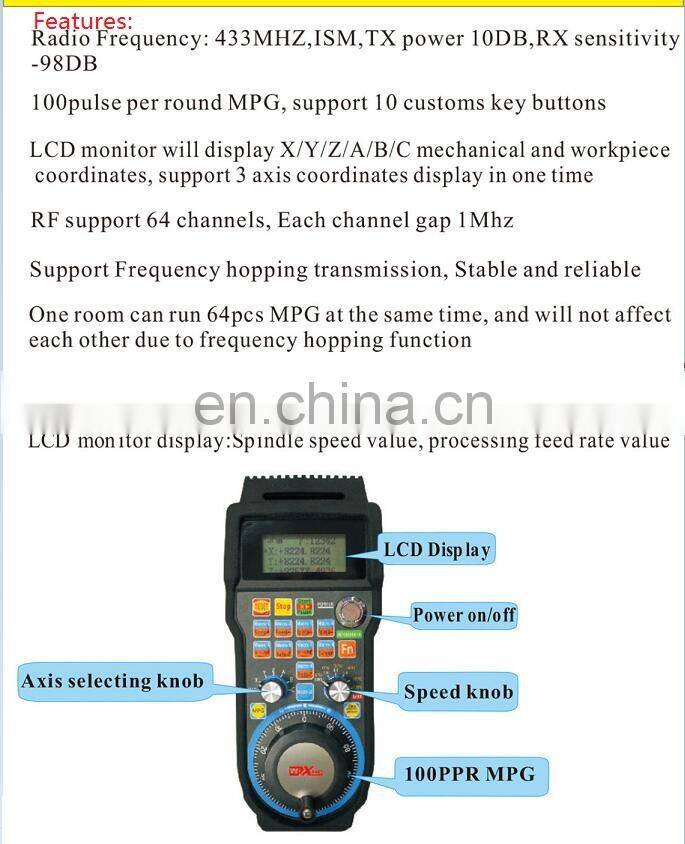

Key feature:
- 1.Auto Frequency Hopping When Noise.
Frequency band:433Mhz,ISM,the output power up to10DB,High receiver sensitivity -98DB.
32 hopping channels,the channel frequency gap is 1Mhz.
the transmission is encrypted,auto build communication network and pair.auto hopping when noise.
32 sets of wireless MPG could be used at the same time in one room.

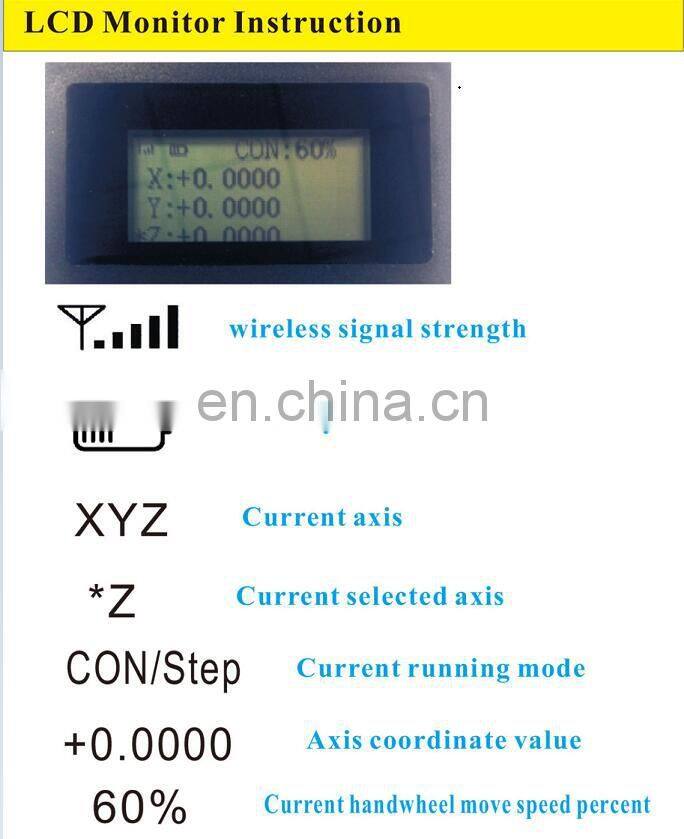

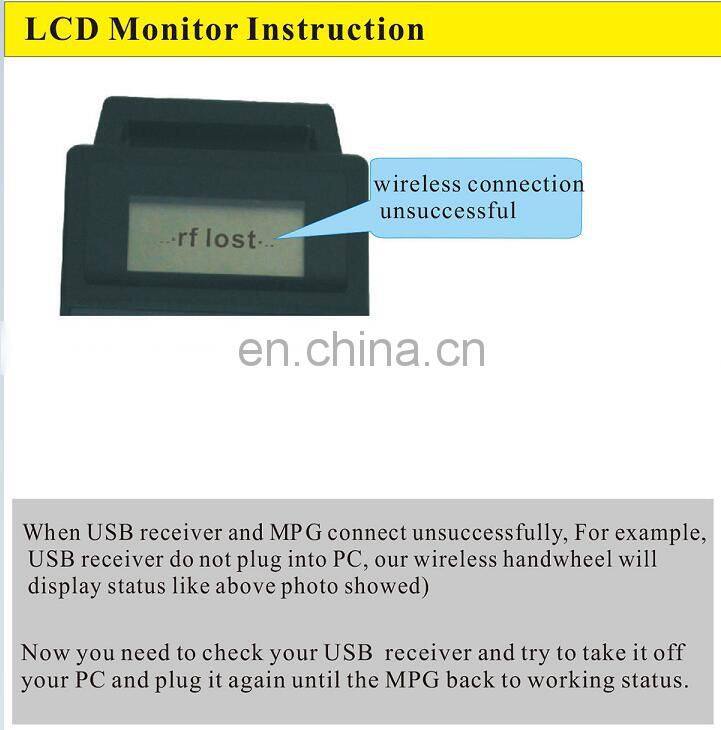

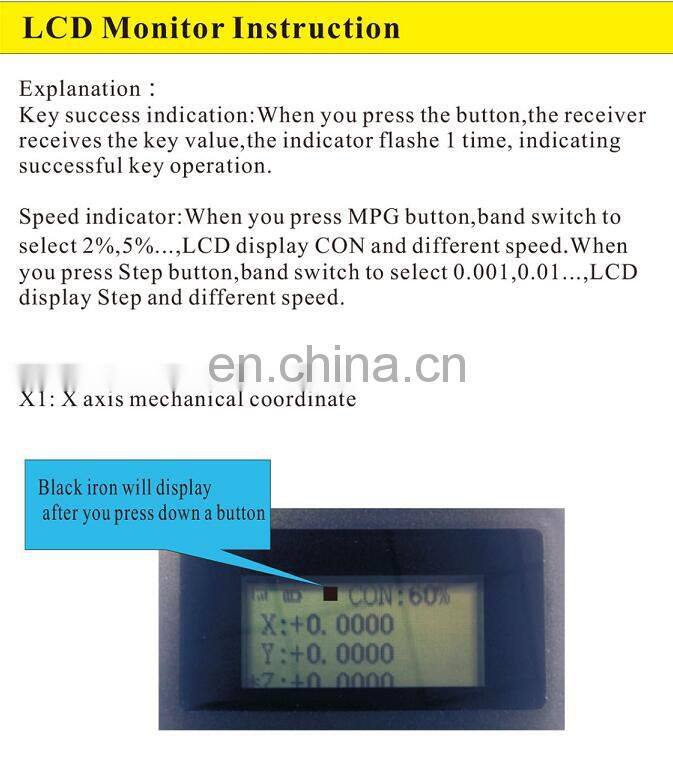

- 2.LCD display
Display the X Y Z A B C axis work and machine coordinate data.
Display the spindle and feed speed.
The lcd display data with background light.
- 3.Axis/Step band switch
To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.

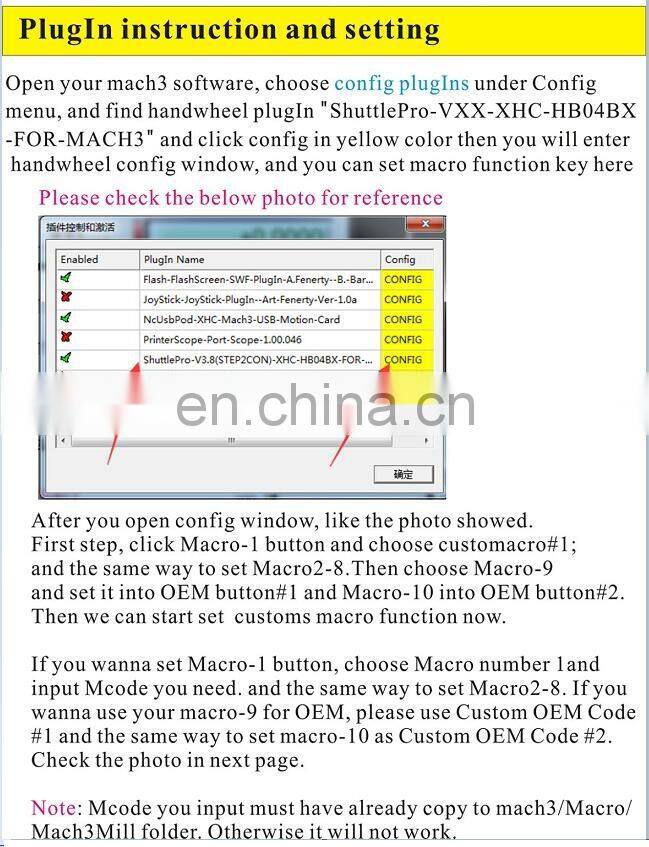

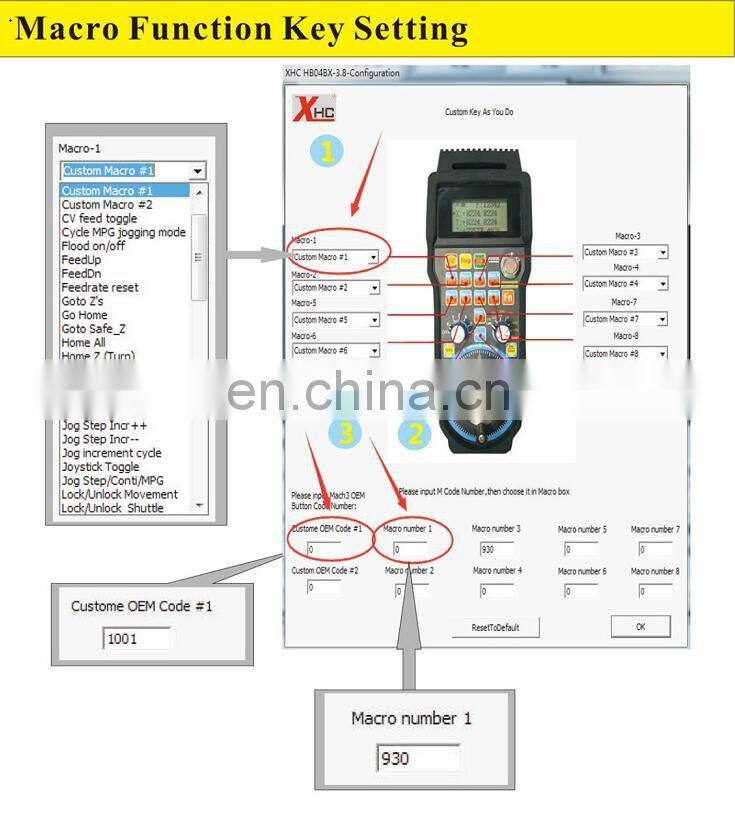

- 4.Support 10 macro function button

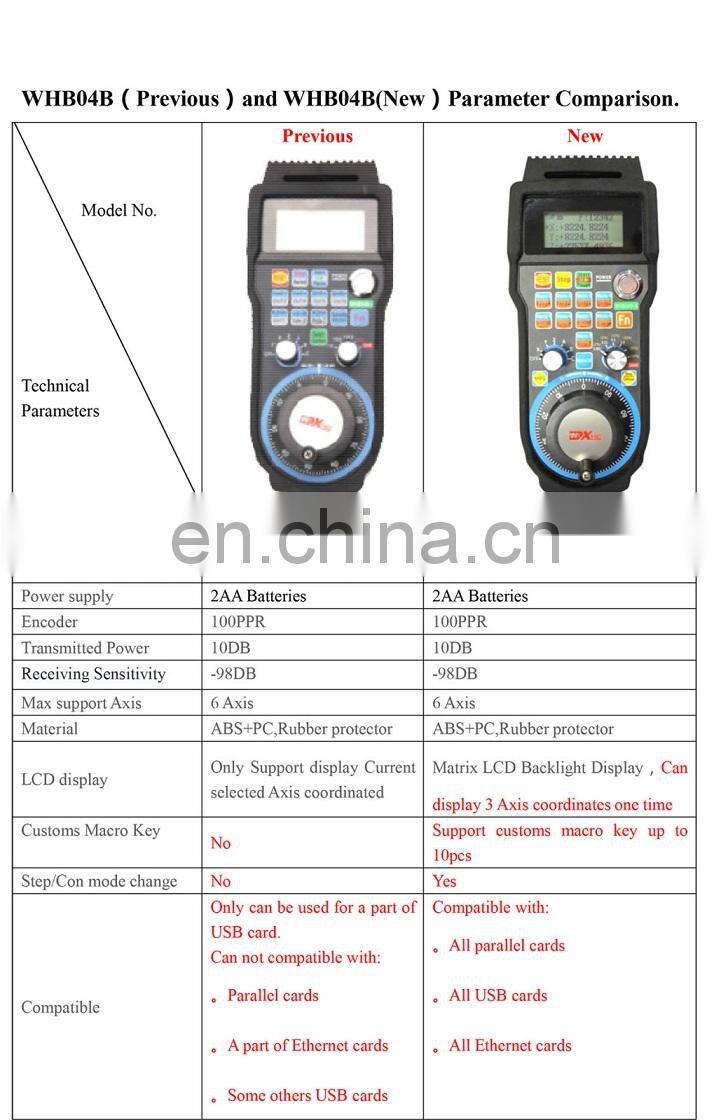

General Characteristics:
- Frequency bands:ISM,433MHZ
- Supply voltage:2 AA batteries
- Wireless transmission distance:40 meter
- MPG Encoder:100PPR
- Function Key:16 Keys(support 10 macro function button)
- Output power:10DB
- Receiver sensitivity:-98DB
- Maximum axis:6 axis
- LCD:Dot LCD with background light
- Material:The material is ABS and PC with anti-impact and heat-resistant. With protected Silicon coat
- Package box size:220*168*60mm

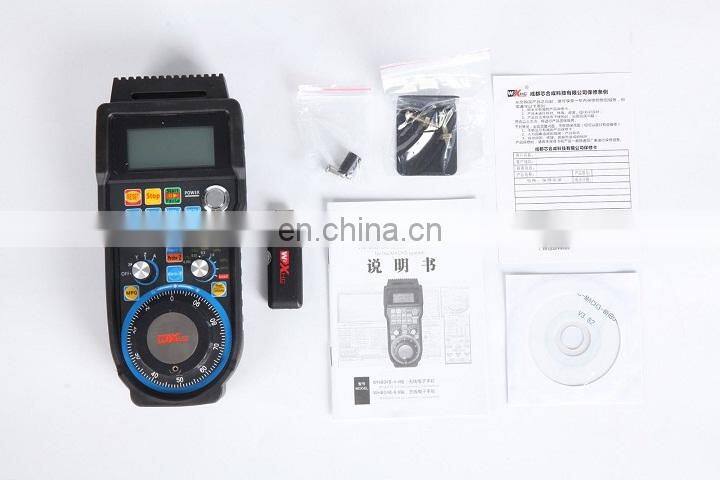

Package List:
- 1 x WHB04B wireless MPG
- 1 x Handle
- 1 x USB wireless receiver
- 1 x Warranty card
- 1 x WHB04B manual

XHC new generation Mach3 4 Axis USB CNC pendant wireless Manual Pulse Generator
Unique manufacturer for XHC mach3 cnc breakout board and wireless usb cnc pendant

Package: Normally we use the standard exporting packaging. We also can according to clients' request .

 Shipping :

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier  we are co-operating at present.

2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.

3. By Sea: Delivery from the Shanghai sea port .

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: Samples arrived often need 3-5 days.

Q3. Do you have any MOQ (minimum order quality)limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed an order?

A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.

Q6. Is it acceptable to print my logo on the product?

A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer one-year warranty for our products.

Q8: How to deal with the flaw?

A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
