Product Description
Poster
Products Description

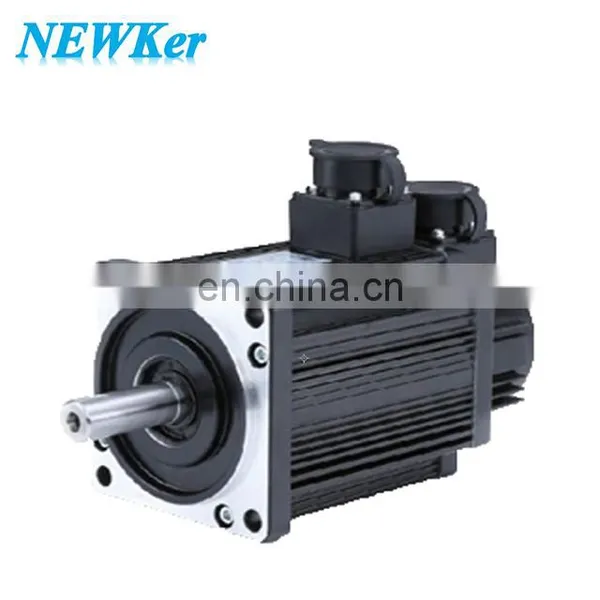

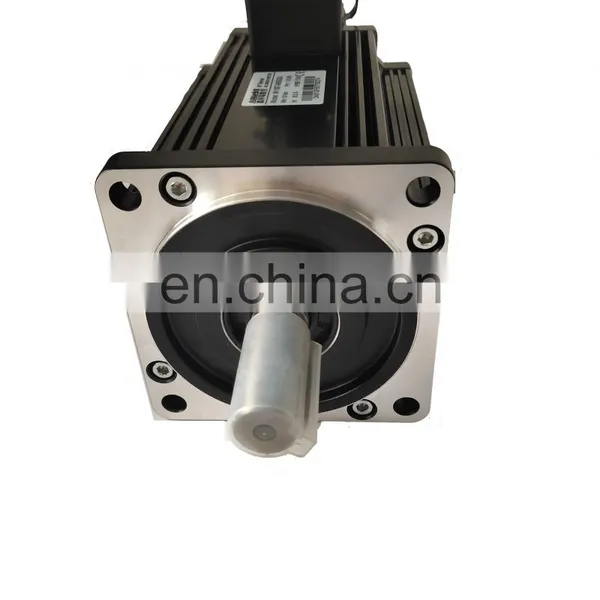

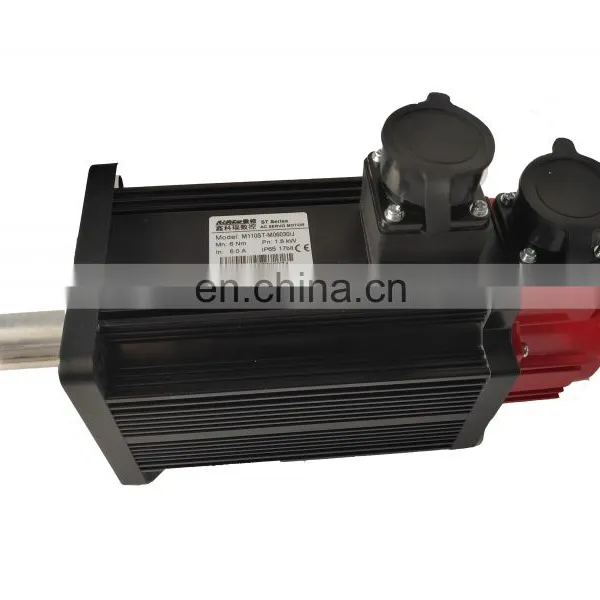

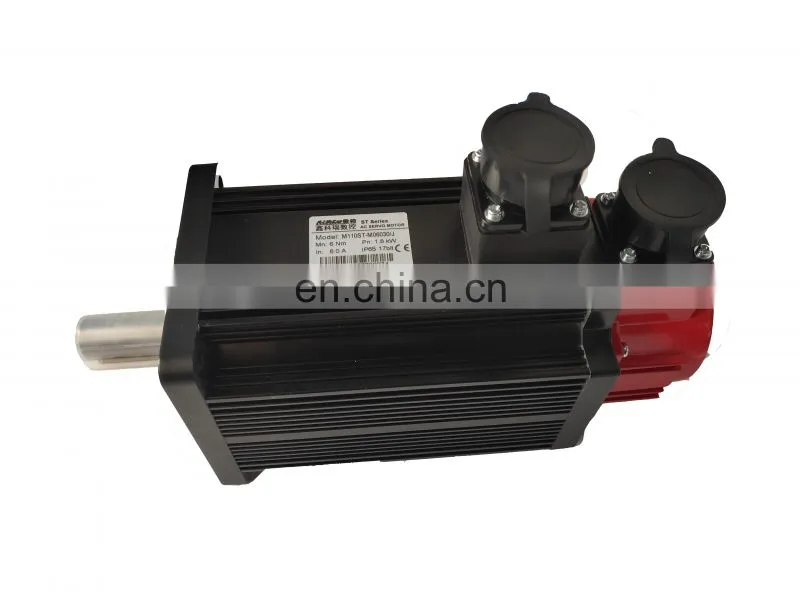

PRODUCT:NEWKer 220V 1KW 4NM AC Servo Motor for engraving sewing cnc lathe machine
110 Series of servo motor | ||||||||||||
Model | 110-02030 | 110-04020 | 110-04030 | 110-05030 | 110-06020 | 110-06030 | ||||||
Rated Power（kW） | 0.6 | 0.8 | 1.2 | 1.5 | 1.2 | 1.8 | ||||||
Rated Current（A） | 2.5 | 3.5 | 5.0 | 6.0 | 4.5 | 6.0 | ||||||
Rated Torque（N·m） | 2 | 4 | 4 | 5 | 6 | 6 | ||||||
Max Torque（N·m） | 6 | 12 | 12 | 15 | 12 | 18 | ||||||
Rated Speed（r/min） | 3000 | 2000 | 3000 | 3000 | 2000 | 3000 | ||||||
Rotor Inertia（Kg·m2） | 0.31×10-3 | 0.54×10-3 | 0.54×10-3 | 0.63×10-3 | 0.76×10-3 | 0.76×10-3 | ||||||
Torque Coefficient (N.m/A) | 0.8 | 1.14 | 0.8 | 0.83 | 1.3 | 1.0 | ||||||
Counter EMF (V/1000r/min) | 56 | 79 | 54 | 62 | 83 | 60 | ||||||
Wire-wound (Ω) | 3.6 | 2.41 | 1.09 | 1.03 | 1.46 | 0.81 | ||||||
Wire-inductance (mh) | 8.32 | 7.3 | 3.3 | 3.43 | 4.7 | 2.59 | ||||||
Electrical Time Constant (Ms) | 2.3 | 3 | 3 | 3.33 | 3.2 | 3.2 | ||||||
Weight (Kg) | 4.5 | 6 | 6 | 6.8 | 7.9 | 7.9 | ||||||
Input Voltage Of Driver (V) | AC220V | |||||||||||
Number Of Encoder (P/R) | 2500/Absolute type 17bit | |||||||||||
Pole-Pairs | 4 | |||||||||||
Insulation Class | F | |||||||||||
Environment | Temperature：-20℃～+40℃ Humidity：Relative≤90% | |||||||||||
Protection Class | IP65 | |||||||||||
