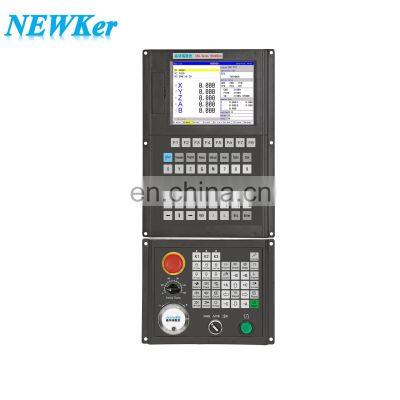

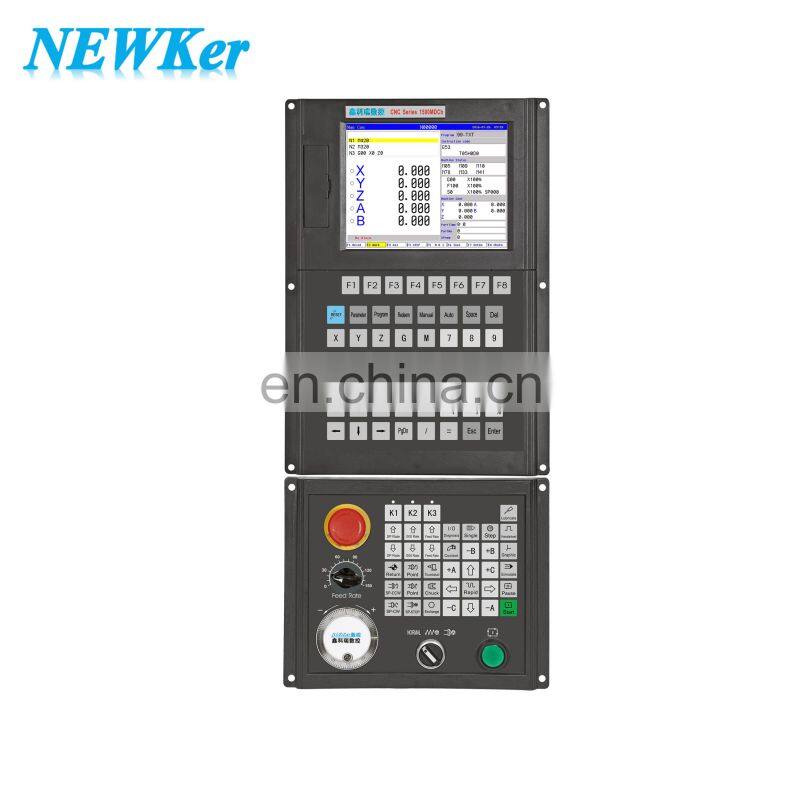

NEWKer 1500 Series Cnc Lathe or Milling Controller 3 Axis Similar Syntec Cnc Controller for Cnc Controller Milling Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Poster

Product

Product detail

Parameter details

System Function			G code shows
The smallest programming:	0.001mm	Locate rapidly:	G00
The most programming:	±99999.999mm	Straight line interpolation	G01
The highest speed:	60m/min	Arc interpolation:	G02/03
Feed speed:	0.01~30m/min	Thread cut:	G32
Continuous manual:	one axis or two axis at the same time	Cycle of cutting cyliner or cone:	G90
Line interpolation:	Straight line, arc, screw thread interpolation	Cycle of cutting end face:	G94
Cutter compensation:	Length of the compansation、nose of tool compensation	cycle of cutting thread	G92
Cutter compensation input:	Try to cut measuring input mode	Fixed cycle of tapping	G93
Spindle function:	gear、Double analog control、Rigid tapping	Cycle of rough cut in excircle	G71
Handwheel function:	panel、handheld	Cycle of rough cut at end face:	G72
handwheel processing:	The handwheel processing function	Cycle of closed cut	G73
Screen protection:	The screen protection function	Cycle of drill deep hole at end face	G74
Tool rest function:	Row tool rest、Electric too post 99 knife	Cycle of cutting groove with external diameter	G75
Communication function:	RS232、USB interface	Cycle of cutting compound thread	G76
Compensation function:	Tool compansation、Space compensation、Screw pitch compensation、Radius compensation	Cycle of program	G22,G800
Edit program:	Metric/Imperial、Straight thread、taper thread and so on	Local coordinate system:	G52
Preread function:	Preread 10,000 short straight lines	Detect the instruction of skip	G31,G311
Password protection:	Multilevel password protection	Pole coordinate	G15,G16
Input/output:	I/O 56*32	Metrical/Imperial programme:	G20,G21
PLC programme:	All open PLC design	Set coordinate, offset	G184,G185
Acceleration and deceleration control:	Straight line、Index	Workpiece coordinate system:	G54~G59
Number of encoder:	Arbitrary set	Tool radius C	G40,G41,G42
User macro program:	Have	Accurate locating/continuous path process:	G60/G64
Electrical gear function:	Have	Constant linear cutting:	G96/G97
Subpanel: (subplane)	A type with handwheel; B type with band switch; C type with both A and B	Feeding mode:	G98,G99
Application:	Lathe and turning machine, milling machine, ATC, Planer-type machine, special and heavy machine tools	Backing to start point of program:	G26
		Backing to the fixed point:	G25,G61,G60
		Backing to the datum point:	G28
		Suspend:	G04
		Macro Program:	G65,G66,G67
		Auxiliary function:	S、M、T

Function advantages

Product features

Never Crush the machine, the system with memorial function (Abosolute feature)

Needn't install hard limit with this 3 axis control wood drilling and milling machine and back to the zero point (Abosolute
feature)

Adapt bus modbus technology, ARM + DSP + FPGA technology

USB and RS232 port, DNC function of USB (NEW)

Network remote technology and could diagnose the system online (NEW)

User's storage is 128M and could be infinite number of program (NEW)

Abosolute type of motor (17bits multi circle) controlling technology (NEW)

The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)

The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)

All closed-loop with grating ruler control and the accuracy is <2um (NEW)

Preread the short line program to satisfy with high speed engraving and cutting (NEW)

Intelligent Man-Machine dialog interface (NEW)
