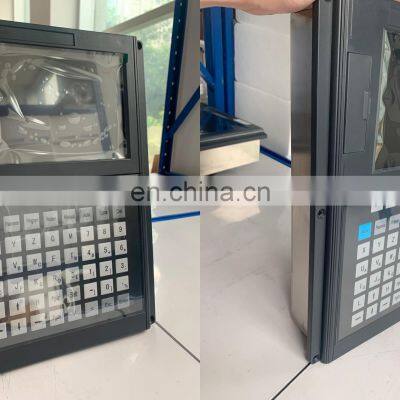

NEWKer Servo Control Series Cnc Control Kit for Bending Similar With Fanuc Gsk Szgh Cnc Controller
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2007
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rs232 Cnc Controller Mill Kit Head With Linear Scale for Tapping and Knurling in Turning Vertical Milling MachineNegotiableMOQ: 1 -
Low Cost NEWKer CNC Controller NEW1500T/MDCa 2-6 Axis Control for Vertical Milling or Lathe MachineNegotiableMOQ: 1
-
NEWKer 6 Axis Analog 5axis Cnc Mini Milling Controller Set Used Cnc Lathe or Milling Machines With EthernetNegotiableMOQ: 1
-
CNC NEW1500T/MDCb 5 Axis CNC Controller as Mitsubishi Cnc Controller SystemNegotiableMOQ: 1
-
NEWker Vertical NEW1500T/MDCb CNC Controller 6 Axis Applying Wood RouterNegotiableMOQ: 1
Poster
Product
Product detail:NEWKer servo control series cnc control kit for bending as szgh cnc controller
Parameter details
System Function |
G code shows |
||||
The smallest programming: |
0.001mm |
Locate rapidly: |
G00 |
||
The most programming: |
±99999.999mm |
Straight line interpolation |
G01 |
||
The highest speed: |
60m/min |
Arc interpolation: |
G02/03 |
||
Feed speed: |
0.01~30m/min |
Thread cut: |
G32 |
||
Continuous manual: |
one axis or two axis at the same time |
Cycle of cutting cyliner or cone: |
G90 |
||
Line interpolation: |
Straight line, arc, screw thread interpolation |
Cycle of cutting end face: |
G94 |
||
Cutter compensation: |
Length of the compansation、nose of tool compensation |
cycle of cutting thread |
G92 |
||
Cutter compensation input: |
Try to cut measuring input mode |
Fixed cycle of tapping |
G93 |
||
Spindle function: |
gear、Double analog control、Rigid tapping |
Cycle of rough cut in excircle |
G71 |
||
Handwheel function: |
panel、handheld |
Cycle of rough cut at end face: |
G72 |
||
handwheel processing: |
The handwheel processing function |
Cycle of closed cut |
G73 |
||
Screen protection: |
The screen protection function |
Cycle of drill deep hole at end face |
G74 |
||
Tool rest function: |
Row tool rest、Electric too post 99 knife |
Cycle of cutting groove with external diameter |
G75 |
||
Communication function: |
RS232、USB interface |
Cycle of cutting compound thread |
G76 |
||
Compensation function: |
Tool compansation、Space compensation、Screw pitch compensation、Radius compensation |
Cycle of program |
G22,G800 |
||
Edit program: |
Metric/Imperial、Straight thread、taper thread and so on |
Local coordinate system: |
G52 |
||
Preread function: |
Preread 10,000 short straight lines |
Detect the instruction of skip |
G31,G311 |
||
Password protection: |
Multilevel password protection |
Pole coordinate |
G15,G16 |
||
Input/output: |
I/O 56*32 |
Metrical/Imperial programme: |
G20,G21 |
||
PLC programme: |
All open PLC design |
Set coordinate, offset |
G184,G185 |
||
Acceleration and deceleration control: |
Straight line、Index |
Workpiece coordinate system: |
G54~G59 |
||
Number of encoder: |
Arbitrary set |
Tool radius C |
G40,G41,G42 |
||
User macro program: |
Have |
Accurate locating/continuous path process: |
G60/G64 |
||
Electrical gear function: |
Have |
Constant linear cutting: |
G96/G97 |
||
Subpanel: (subplane) |
A type with handwheel; B type with band switch; C type with both A and B |
Feeding mode: |
G98,G99 |
||
Application: |
Lathe and turning machine, milling machine, ATC, Planer-type machine, special and heavy machine tools |
Backing to start point of program: |
G26 |
||
Backing to the fixed point: |
G25,G61,G60 |
||||
Backing to the datum point: |
G28 |
||||
Suspend: |
G04 |
||||
Macro Program: |
G65,G66,G67 |
||||
Auxiliary function: |
S、M、T |
||||
Function advantages
Product features
Never Crush the machine, the system with memorial function (Abosolute feature)
Needn't install hard limit with this 3 axis control wood drilling and milling machine and back to the zero point (Abosolute
feature)
Adapt bus modbus technology, ARM + DSP + FPGA technology
USB and RS232 port, DNC function of USB (NEW)
Network remote technology and could diagnose the system online (NEW)
User's storage is 128M and could be infinite number of program (NEW)
Abosolute type of motor (17bits multi circle) controlling technology (NEW)
The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)
The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)
All closed-loop with grating ruler control and the accuracy is <2um (NEW)
Preread the short line program to satisfy with high speed engraving and cutting (NEW)
Intelligent Man-Machine dialog interface (NEW)
Needn't install hard limit with this 3 axis control wood drilling and milling machine and back to the zero point (Abosolute
feature)
Adapt bus modbus technology, ARM + DSP + FPGA technology
USB and RS232 port, DNC function of USB (NEW)
Network remote technology and could diagnose the system online (NEW)
User's storage is 128M and could be infinite number of program (NEW)
Abosolute type of motor (17bits multi circle) controlling technology (NEW)
The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)
The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)
All closed-loop with grating ruler control and the accuracy is <2um (NEW)
Preread the short line program to satisfy with high speed engraving and cutting (NEW)
Intelligent Man-Machine dialog interface (NEW)

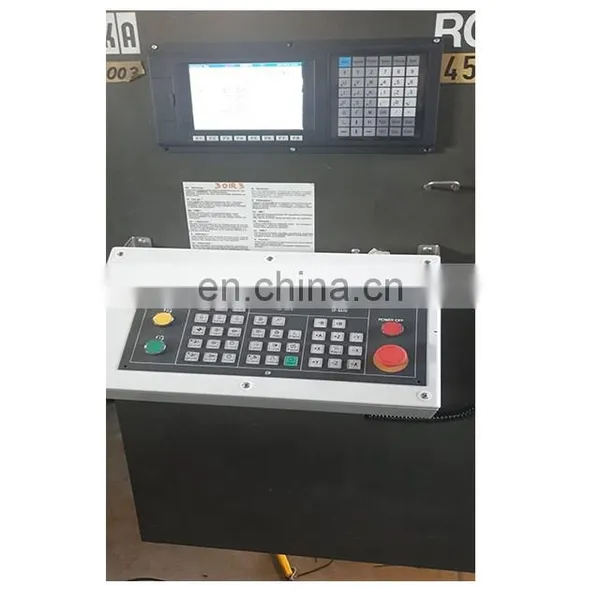

Product applications
