China Top Brand NEWKer Economical 6 Axis High-effective Programmable Robot Arm for Industrial or Teaching

Chengdu Newker CNC-Technology Co., Ltd.
China Top Brand NEWKer Economical 6 Axis High-effective Programmable Robot Arm for Industrial or Teaching thumbnail-1
China Top Brand NEWKer Economical 6 Axis High-effective Programmable Robot Arm for Industrial or Teaching thumbnail-2
China Top Brand NEWKer Economical 6 Axis High-effective Programmable Robot Arm for Industrial or Teaching thumbnail-3
China Top Brand NEWKer Economical 6 Axis High-effective Programmable Robot Arm for Industrial or Teaching thumbnail-4
China Top Brand NEWKer Economical 6 Axis High-effective Programmable Robot Arm for Industrial or Teaching thumbnail-5
China Top Brand NEWKer Economical 6 Axis High-effective Programmable Robot Arm for Industrial or Teaching photo-1

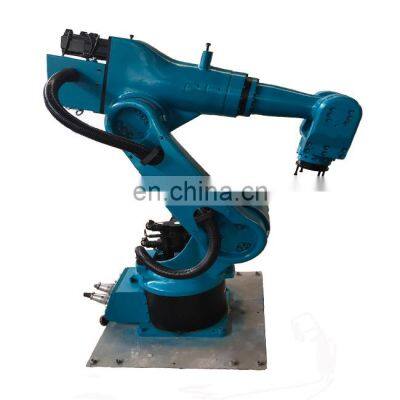

China Top Brand NEWKer Economical 6 Axis High-effective Programmable Robot Arm for Industrial or Teaching photo-2
China Top Brand NEWKer Economical 6 Axis High-effective Programmable Robot Arm for Industrial or Teaching photo-3
China Top Brand NEWKer Economical 6 Axis High-effective Programmable Robot Arm for Industrial or Teaching photo-4

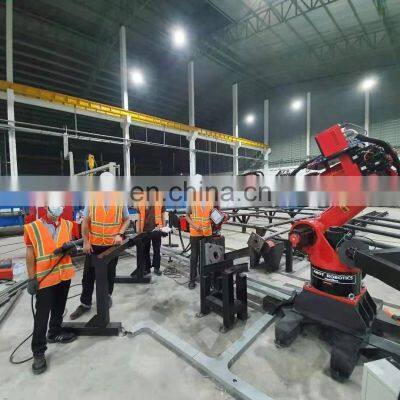

China Top Brand NEWKer Economical 6 Axis High-effective Programmable Robot Arm for Industrial or Teaching photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2007
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Poster
Products Description

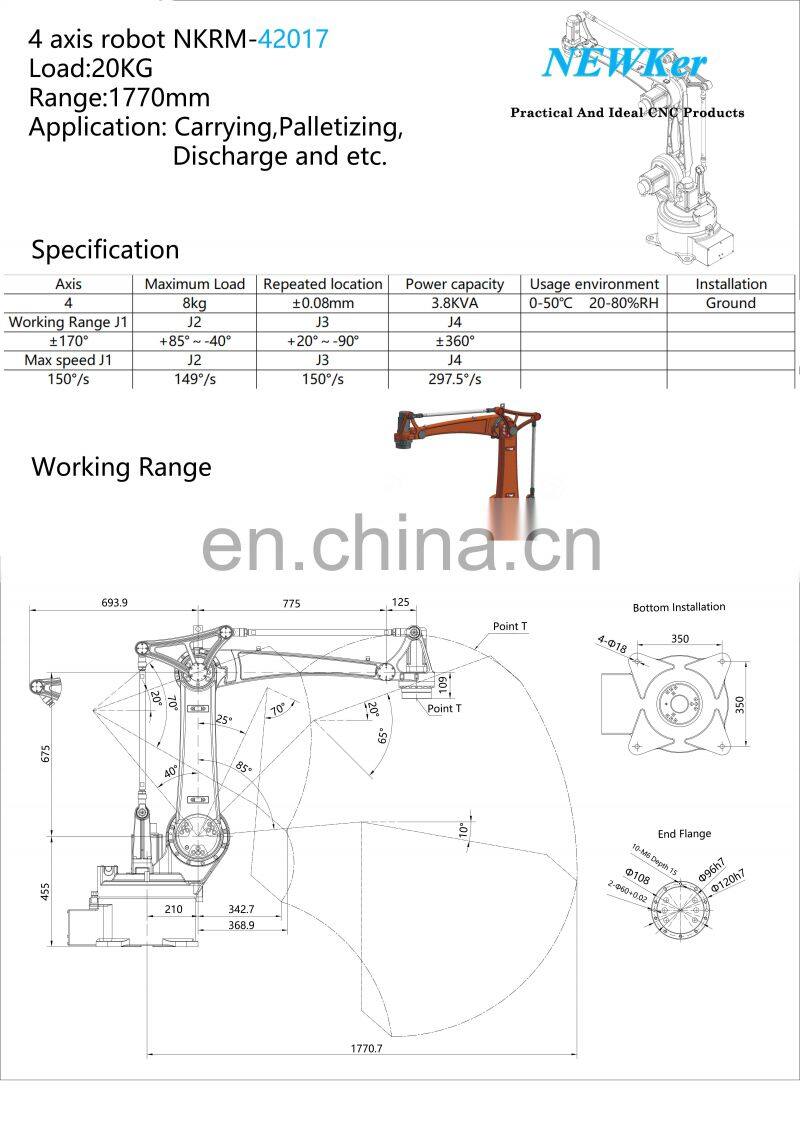

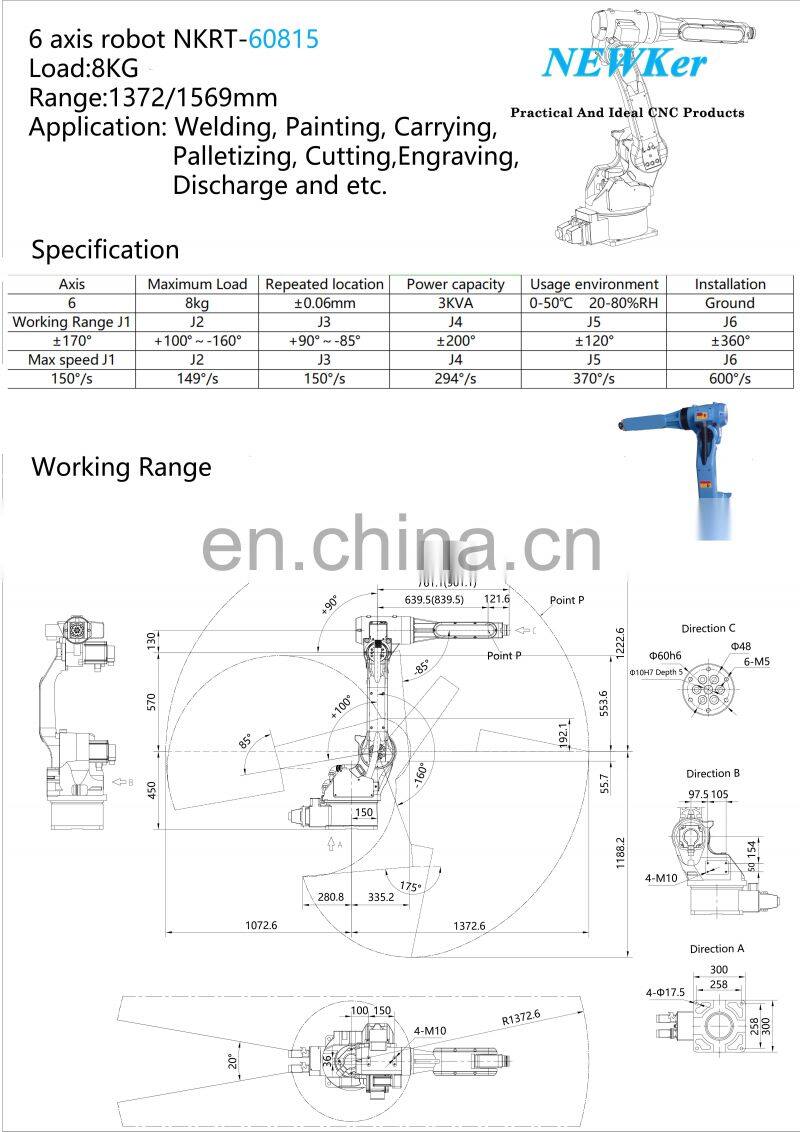

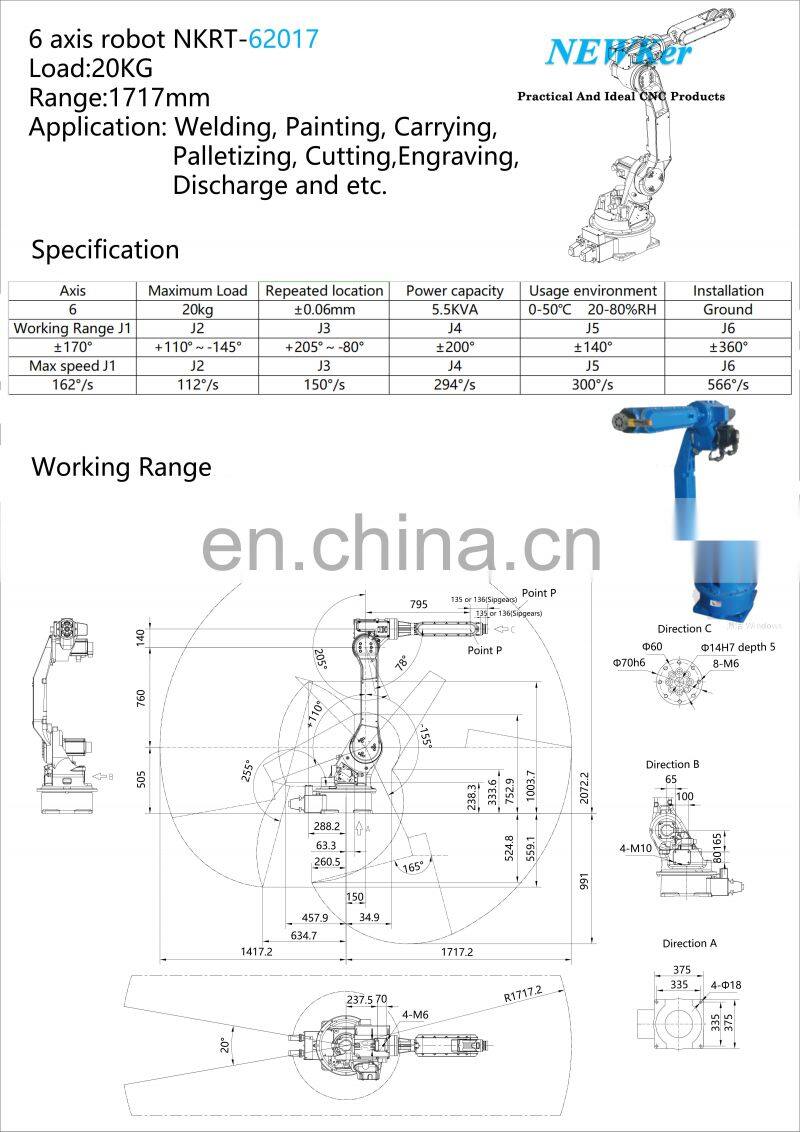

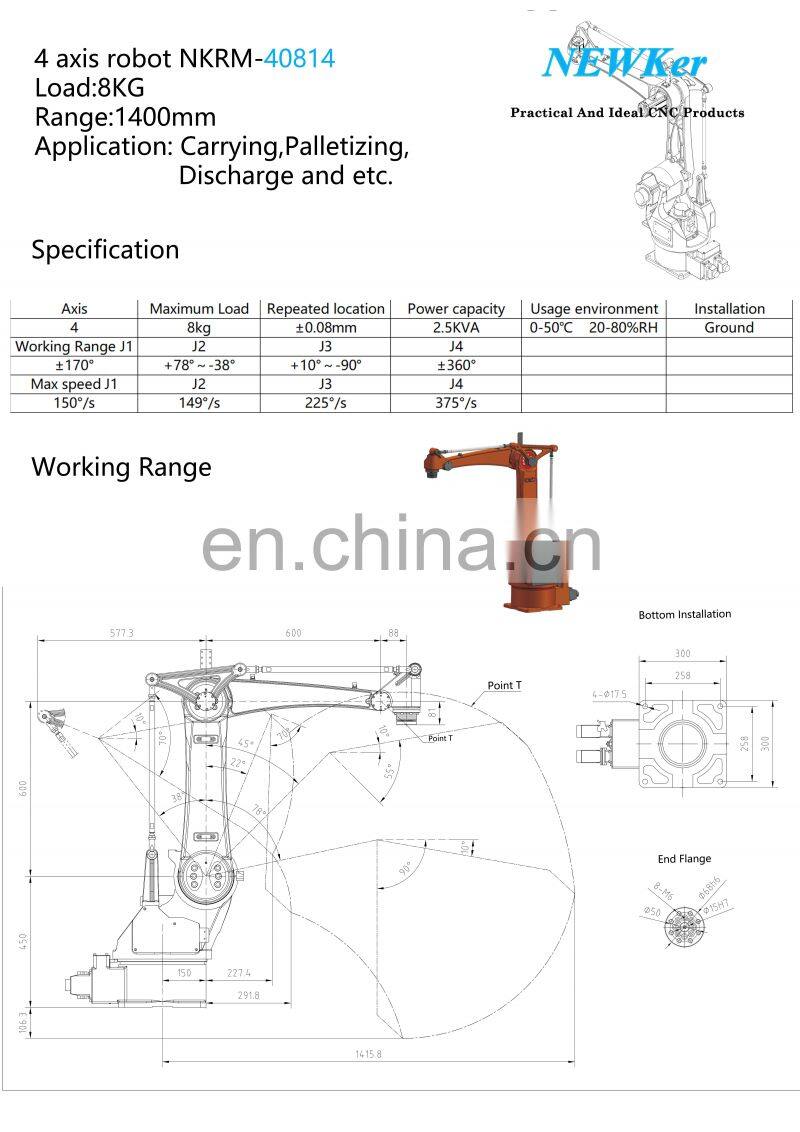

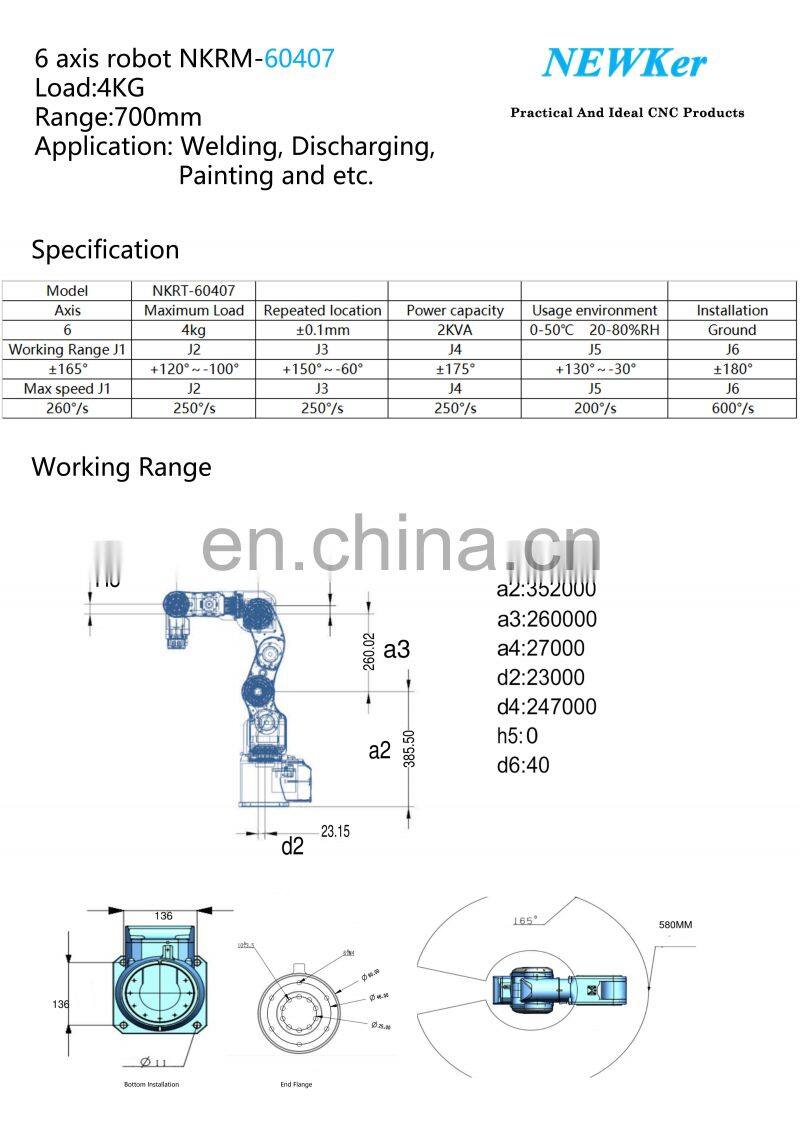

Robot Specification
Controller Connection
Parameter details
No. of controller shaft
4-8 axiscontrol panelof industrial automatic motoman arc welding robot(j1,j2,j3,j4,j5,j6)
Specify the welding current:
AA/S
Type:
Bus absolute type and servo type
Specify the welding voltage:
VV/SS
The most programminng:
±99999.999
Start welding:
AS*
Encoder of motor:
17bits and 23bits
End welding:
AE*
I/O points:
48*32 I/O
Start swing weld:
WS*
0-10V analog:
2 ways 0-10V analog
End swing weld:
WE
Operation:
Teach,Repaly,Remote
Movement of joint:
MJ or MOVJ or GO
Wifi function:
Connect with phone to send program
Movement od straight line:
ML or MOVL or G1
RS 232 function:
RS232 to connect with PC
Movement of arc:
MC or MOVC or G6
USB function:
Update and send program
Specify the speed:
V=to specify the feeding speed
Program mode:
Teach,G code,Technics parameter
Specify the ratio:
VJ= to specify the feeding ratio
Motion function:
Point to point,straight line,arc
The speed of changing track:(smoothness
PL=
Instructions:
Movement,Logic,Calculation,Technics,G code in CNC
Start parallel translation:
SN*
Coordinate system:
Joint,User,Tool,World
End parallel translation:
SF
PLC function:
Edit the ladder,8000 steps
Read the current position:
PK***
Alarm information:
Emergency,drive,maintenance,error of starting arc and coordinate
Calculate the value of two position:
PX***=PT***-PT***
Limit function:
Soft limit
Start searching:
ST*P*
Algorithm of controller:
1)Vertical multi joint serial tobot;
2)Vertical articulated parallelogram robot; 3)Vertical multi joint L shape wrist robot;
4)Pole coordinate robot;
5)SCARA robot;
6)Delta robot;
7)Special robot;
End searching
SE
Password protection:
Multilevel random password protection
Straight earching instruction:
SX+/-,SY+/-,SZ+/-,
User macro program:
Have
The parallel value:
PX***=PX***+PX*** and PX***=PX***-PX***
Electrical gear function:
Have
G code:
The same as the standard cnc controller
Application:

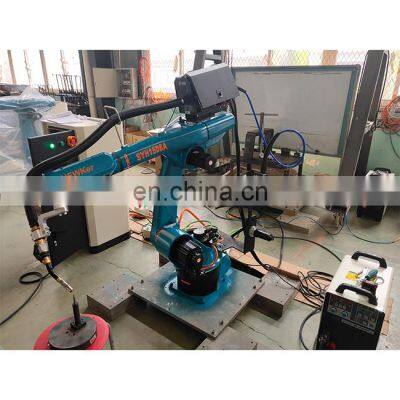

Welding,palletizing,Painting,Tending,Laser cutting and other special robor arm
Marco program instructions:
If..THEN;WHILE;GOTO;WAT
Function advantage
Product features
Never Crush the machine, the system with memorial function (Abosolute feature)

Needn't install hard limit in this 4-8 joint axis welding robot controller all kit and back to the zero point (Abosolute feature)

Use phone connect with controller by Wifi function, easier and more convenient to send program (NewKer feature)

G code program, only NewKer-CNC robot controller could work with G code program like cnc controller (NewKer feature)

Teach function with technics parameter, easier to operate (NewKer feature)

PLC and macro program are all opened (NewKer feature)

Only one cable come out from controller, easier to connect (Bus type feature)

Multilevel random password protection, more safety (NewKer feature)

China top brand NEWKer Economical 6 axis high-effective programmable robot arm for industrial or teaching
China top brand NEWKer Economical 6 axis high-effective programmable robot arm for industrial or teaching
China top brand NEWKer Economical 6 axis high-effective programmable robot arm for industrial or teaching
China top brand NEWKer Economical 6 axis high-effective programmable robot arm for industrial or teaching
China top brand NEWKer Economical 6 axis high-effective programmable robot arm for industrial or teaching
China top brand NEWKer Economical 6 axis high-effective programmable robot arm for industrial or teaching

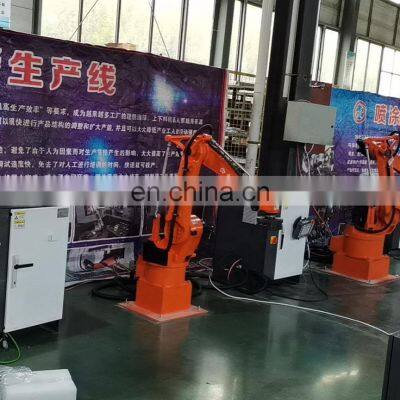

Product applications
