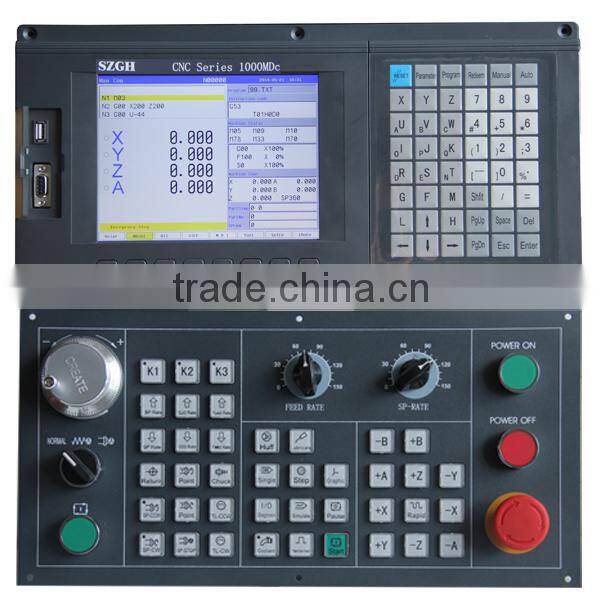

CNC1000MDc-4 is 4 axis milling CNC controller with PLC,macro , ATC and encoder feedback function. And widely applied in CNC milling machinery; machining center; milling center; wood working machine; compatible with SZGH all of motor and driver

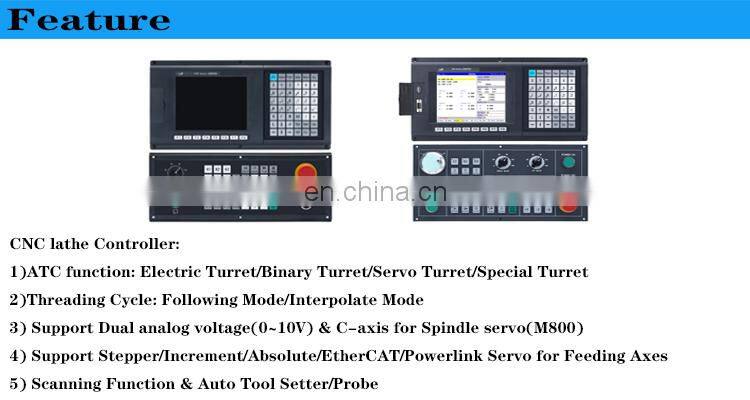

Feature:
1) 7.0 Inch TFT color display, 800 X 400 high resolution .
2) U flash and USB communication port, USB TO PC communication connector.
3) Multi-language
4) Support macro command programming in sentence type
5) ARM 9 CPU+FPGA double core processor
6) PLC function (developing)
7) Four channel 2 mb/s high speed pulse output , 6 channel AB phase decoder
8) Two channel serial RS232 connector.
9) SD card big capacity memory connector.
10) Support 4 axis linkage.

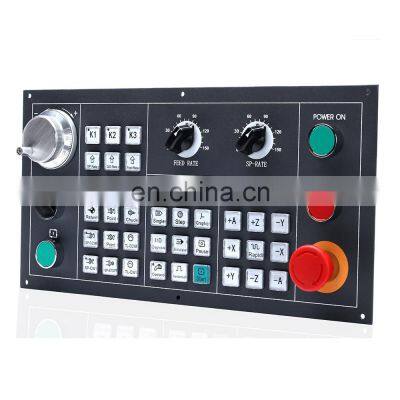

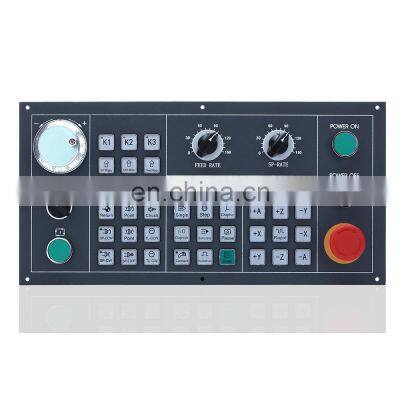

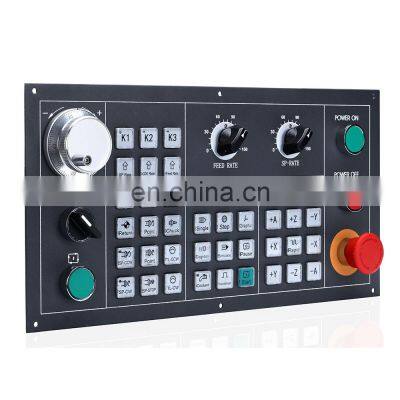

11) One channel for handheld box, supporting external MPG
12) Ethernet network interface, 10/100M Ethernet port.
Technical specification
1) 4 axes (X, Z, Y, A),and 7.0″large screen LCD, 800X480
2) Display in Chinese, English and etc,.
3) Interpolation axes: X, Y, Z, A axis
Maximum any 4 axes linear continuous interpolation
4) Support mircosoft-program.it is similar to PLC. Can do a lot of logic control and axes control
5) Feeding axis function
6) Support pitch error compensation and backlash compensation
7) Minimum command unit: 0.001mm can be selected
8) Position command range: ±9999× minimum command unit
9) Maximum rapid traverse speed is 20m/min when command unit is 0.001mm. rapid traverse frequency 500K. interpolation frequency 200K
10) Be able to adjustment from F0-150%,total 15 levels, real time
Rapid traverse and feeding are use the same switch
11) Auto chamfering
12) Acceleration and deceleration function
Cutting feeding: Acceleration or deceleration in linear type/index type or front/rear is selectable.
13) Support tool function : such as:
Tool length compensation
Tool radius compensation
14) Precision backlash compensation and pitch error compensation in memory type .
15) Operation management
16)Editing program:
Program capacity: 40M, 10,000 programs (including subprograms, macro programs)
17) RS232 and USB communication function:
RS232: Files of part program and parameter, etc can be transmitted in two-way, DNC real-time processing, serial ports of system software upgrade.
USB: File operation, directly processing files, system software upgrade in flash disc.
18)Support Safety function, as following:
Emergency stop
Hardware travel limit
Software travel limit
Data restoring and recovering
