Low cost 2 axis CNC motion control in milling machine system
 Product Description

      SZGH-CNC990MDb-2 two axis economic type milling controller control , XY two axes,8 inch real colour LCD display, compatible with all kinds of motor& driver, it is very high performance and low cost milling CNC controller .

Feature:

1) 800x600 8 inch real color LCD displayer.



2) Support PLC and macro function, and automatic tool exchange function .



3) 32Mb user store room, 2-channel analog



4) 32 input, and 32 output.



5) Touch screen main and sub panel.



6) High anti-jamming switch power.



7) USB movable U disc copy interface.



8) RS232 interface.



9) Spindle servo speed control/spindle frequency convenient speed control.



10) Max screw processing thread pitch is 1000MM



11) 32 bits high performance, low power consumption industrial grade ARM microprocessor.



12) C cutter offset function.



13) updated version with closed loop



14) 2 axis, 3 and  4 axis , support PLC programm, tool change functoin
System constructions:
32 bits high performance, low power consumption industrial grade ARM microprocessor.
64MB memory.
32Mb user store room.
640x480 8 inch real colour LCD displayer.
Touch screen main and sub panel.
High anti-jamming switch power.
USB movable U disc copy interface.
RS232 interface.
Spindle servo speed control/spindle frequency convertion speed control.
Manual pulse generator.
System technical parameter:
controllable axes:X,Z,C/Y,A,B five axes.
linkage axes:Arc 2-3 axes, liner 2-5 axes.
pulse equivalent:X,Z,C/Y,A,B axes:0.001mm.
max speed:X,Z,C/Y,A,B:60000mm/min.
cutting speed:1-10000mm/min.
min input unit:0.001mm.
program size range:± 99999.999.
99 tools management.
controllable liner vertical type or revolving disc type tool changer.
program code:ISO-840 international standard.
program coordinate system definition:ISO-841.
chassis protection complies with regulation of IP43.
System function:
1.Auto-diagnosis function
All around diagnosis of CPU, storer, LCD, I/O interface, parameter status, coordinates, machining program etc. shall execute when the system starts or resets. In operation, it makes real time diagnosis of power, spindle, limit and all I/O interface.
2. Compensation function
automatic backlash compensation.
tool radius automatic compensation.
tool radius automatic offset and sharp angle transition.
leading screw pitch error automatic compensation.
3 .Abundant instruction system
scaling up/down instruction.
mirror machining instruction.
mutiple tool offset instruction.
program cycle, jump, call and different program ending.
multiple positioning instruction:starting point,setting fixed point,etc.
linera, circular,spiral line interpolation instruction.
program management instructions: program cycle, call, transfer and different program ending method, etc.
6 workpeices coordinates system .

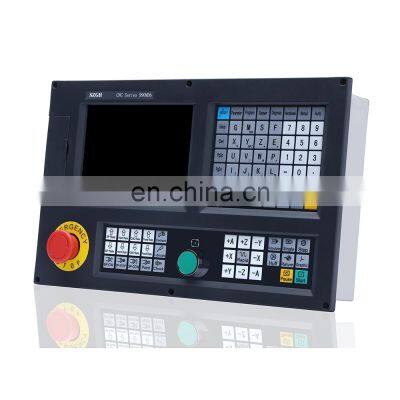

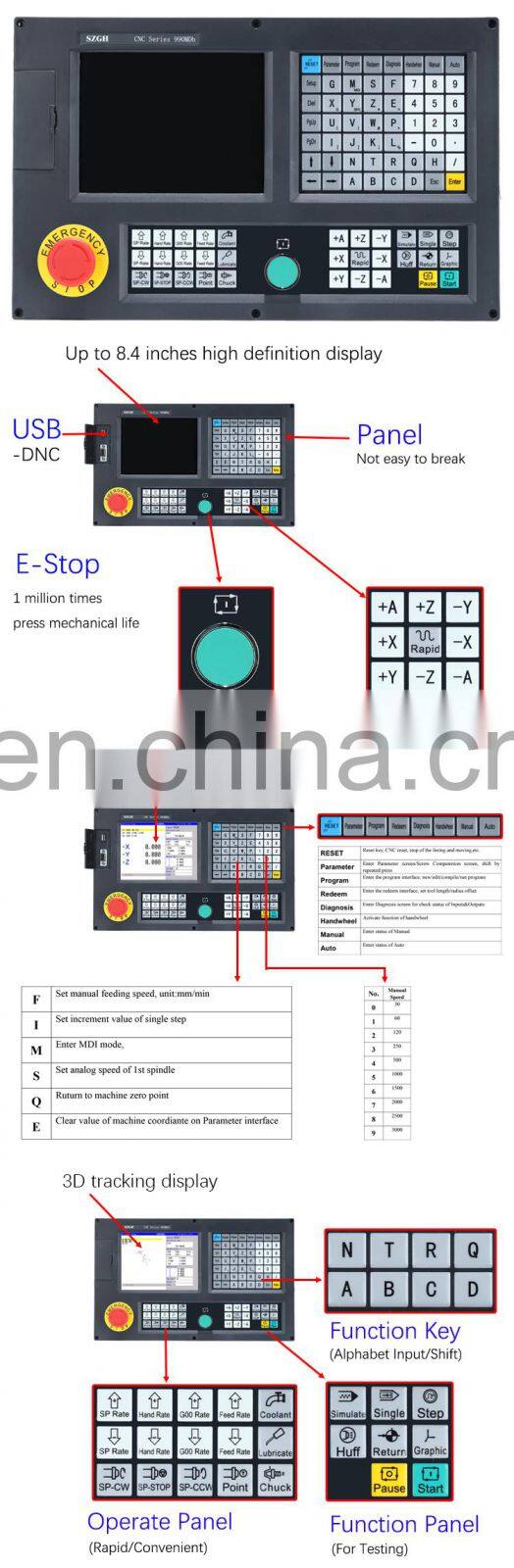

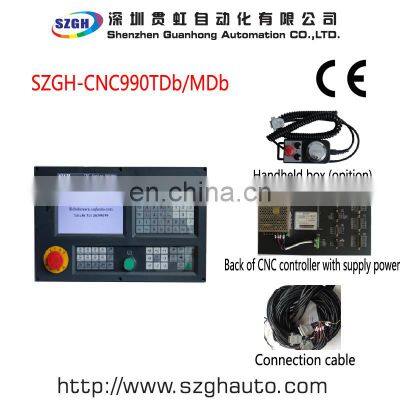

Product Picture:

 Low cost 2 axis CNC motion control in milling machine systemLow cost 2 axis CNC motion control in milling machine system







Optional Spare Parts:

Low cost 2 axis CNC motion control in milling machine system

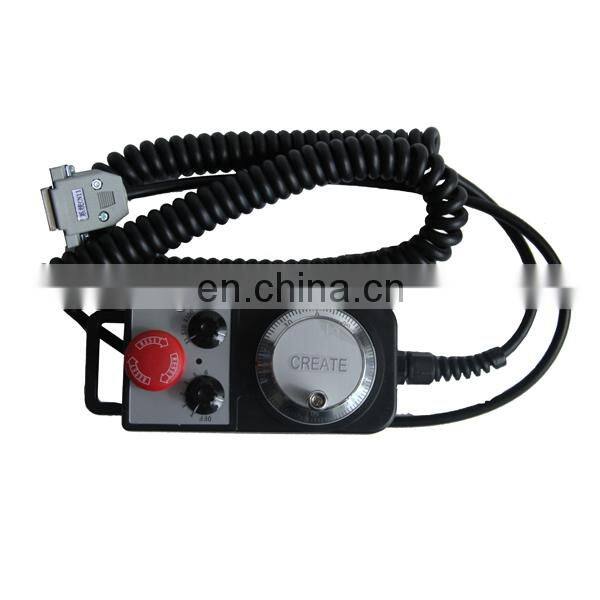

(Hand-held box / MPG)






Packaging & Shipping

Packing detail:

 1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets

 2.Commercial packing: plastic bag+ foam boxes + carton

 3.As the clients' requirement

 Delivery Detail: Normally ready goods and stock within 2-5days
